Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZAV WITHOUT HITCH COMPONENTS / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZAV 1,6-5 AE 2,7-1 D WITH DRAWBAR SECTION 1200 TO 1600KG / Steday leg □70mm square, top crank, double speed, type DG 600W, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, maxi. static load 3500kg, dimension D 555mm, dimension E 210mm, dimension G 120x165mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 300mm |
| Maxi. static load | 3500kg |

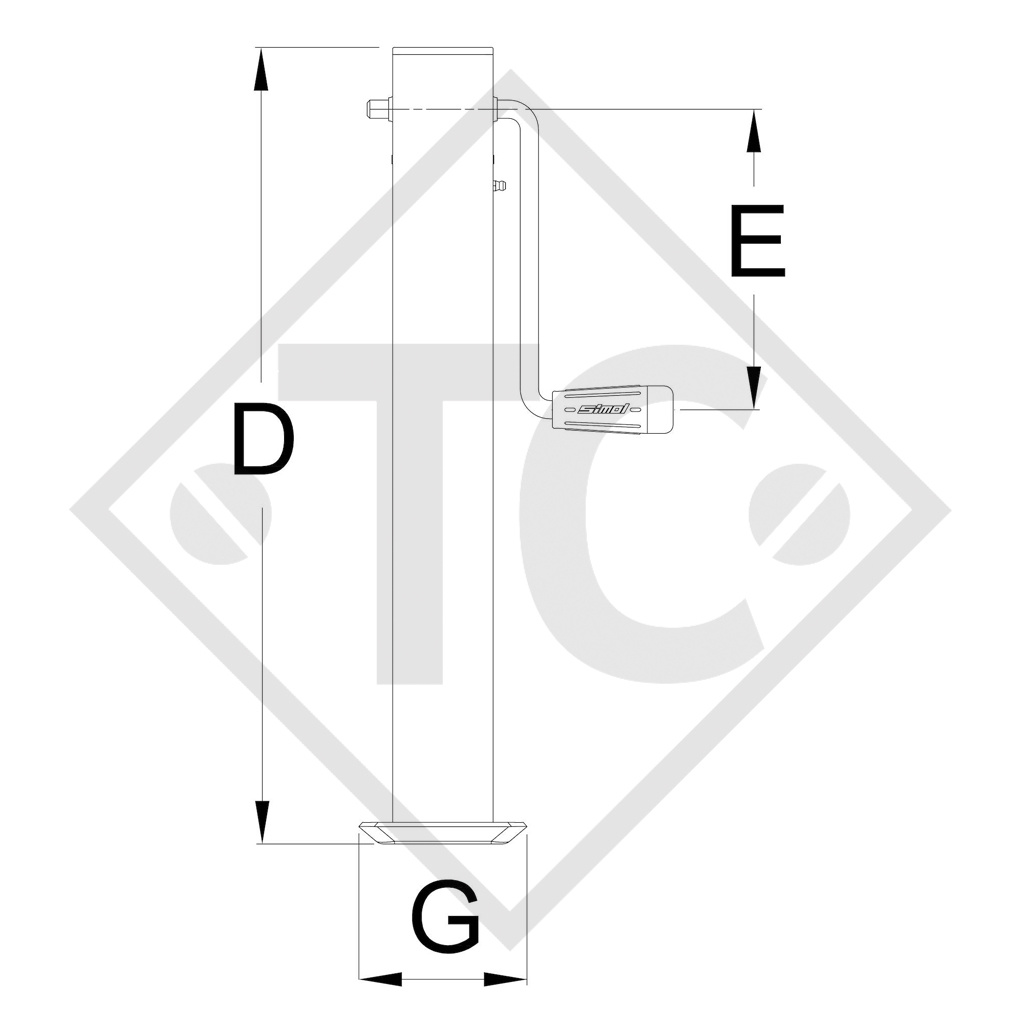

| Dimension D |
555mm |
| Dimension E |
210mm |
| Dimension G |
120x165mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
