Steday leg □70mm square, type PREV.3016, galvanised

Steday leg □70mm square, side crank and reductions gears, double speed, type PREV.3016, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 300mm, maxi. static load 3000kg, dimension D 560mm, dimension E 226mm, dimension G ⌀160x5mm, dimension I 384mm. Read more...

Wishlist: Add to comparison:

Price 199,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Outer tube

□70mm square

Screw stroke (extended length)

300mm

Maxi. static load

3270kg

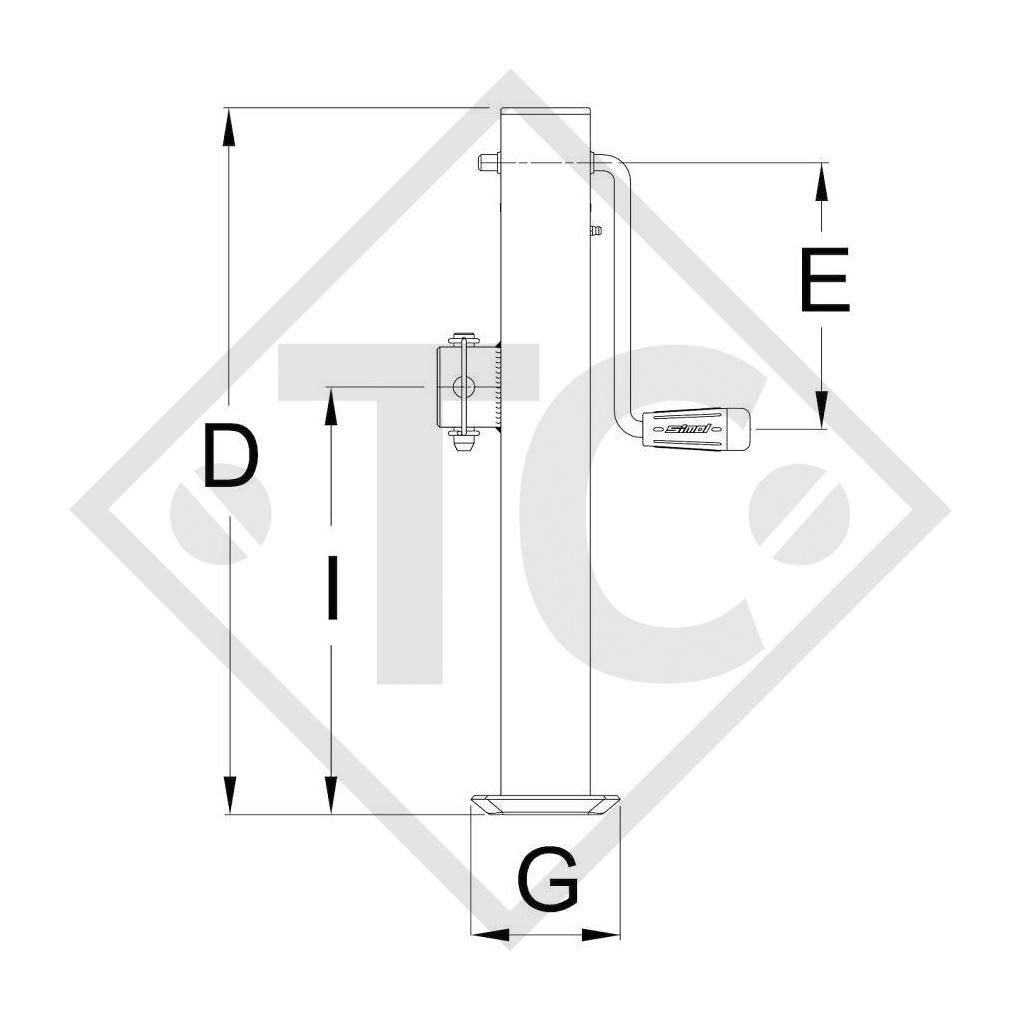

Dimension D

560mm

Dimension E

226mm

Dimension G	⌀160x5mm
Dimension I	384mm

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Steday leg □70mm square, side crank and reductions gears, double speed, type PREV.3016, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
