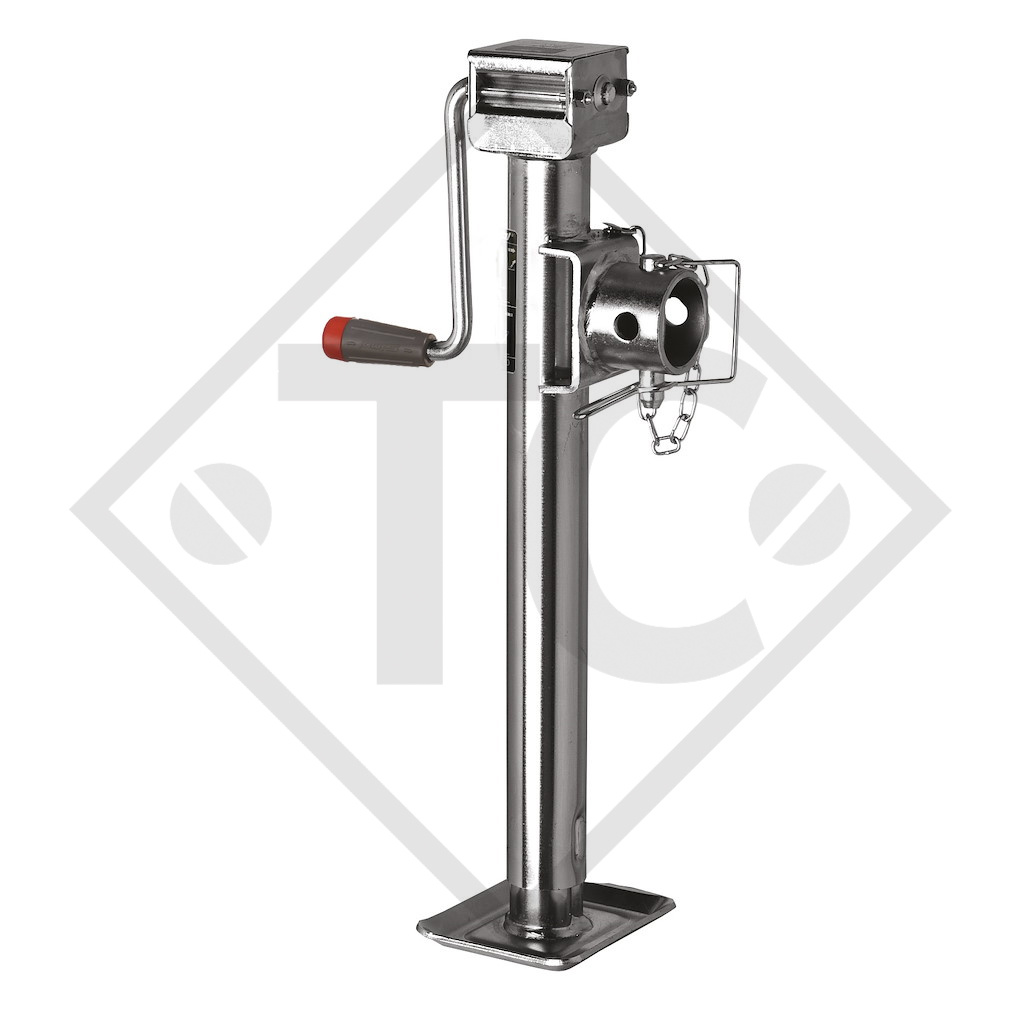

Home / Steday leg ⌀57mm, side crank and reductions gears, double speed, type LT 5053W, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 365mm, maxi. static load 2250kg, dimension D 545mm, dimension E 220mm, dimension G 120x165mm, dimension I 385mm. Read more...
| Outer tube |
⌀57mm |
| Screw stroke (extended length) | 365mm |
| Maxi. static load | 2250kg |

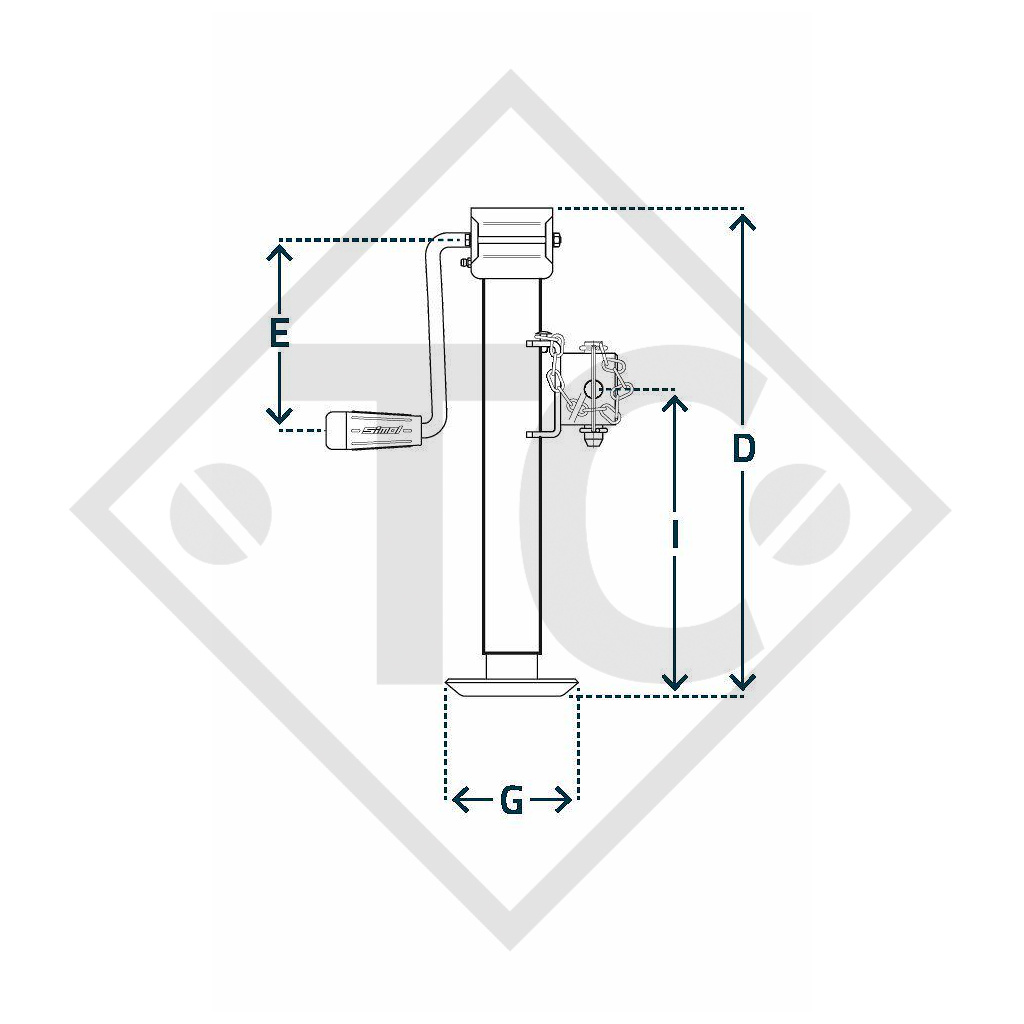

| Dimension D |
545mm |
| Dimension E |
220mm |
| Dimension G |
120x165mm |
| Dimension I |
385mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
