Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / TOWBAR CONNECTIONS V 1000KG TO 3500KG / TOWBAR CONNECTIONS V TYPE 251T TO 2800KG / Steday leg ⌀57mm, side crank and reductions gears, double speed, type LT 3153W, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

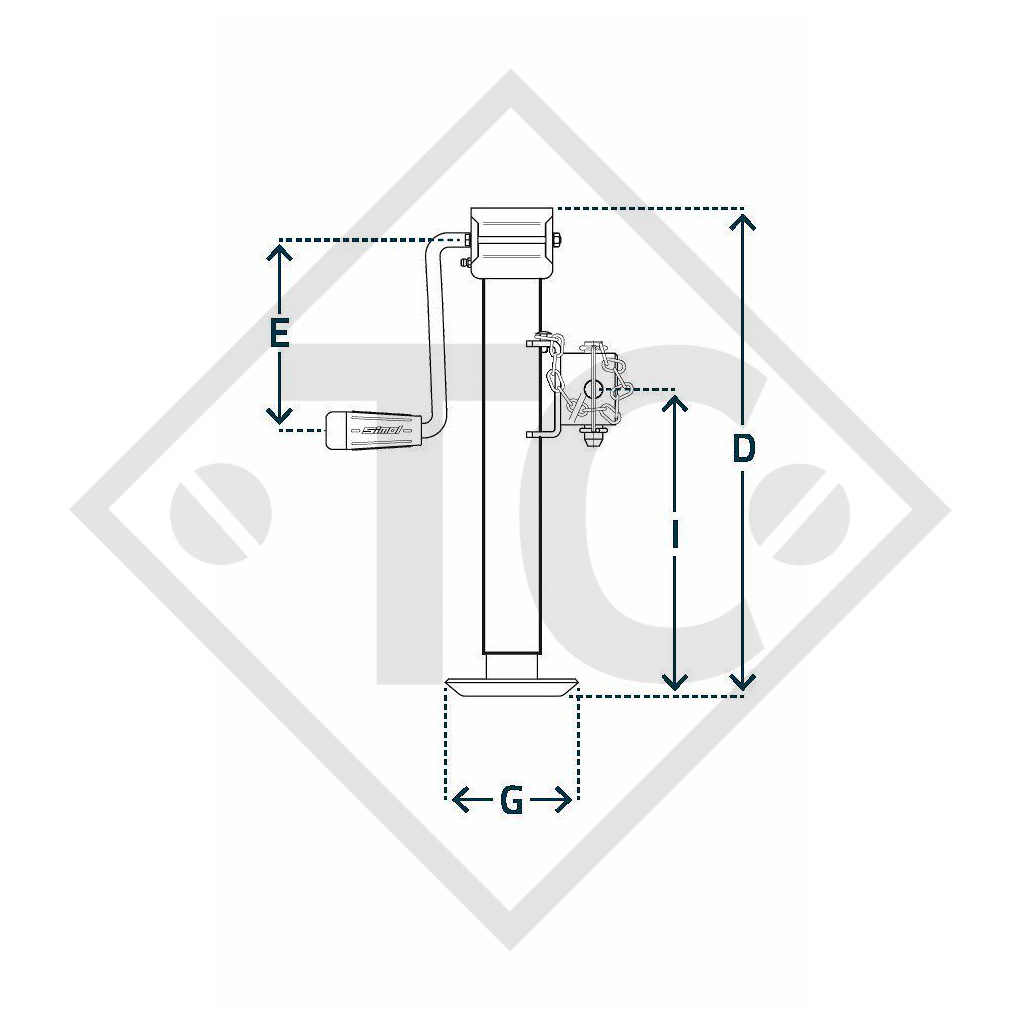

screw stroke (extended length) 365mm, maxi. static load 1350kg, dimension D 545mm, dimension E 167mm, dimension G 120x165mm, dimension I 385mm. Read more...
| Outer tube |
⌀57mm |
| Screw stroke (extended length) | 365mm |
| Maxi. static load | 1350kg |
| Dimension D |
545mm |
| Dimension E |
167mm |
| Dimension G |
120x165mm |
| Dimension I |
385mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
