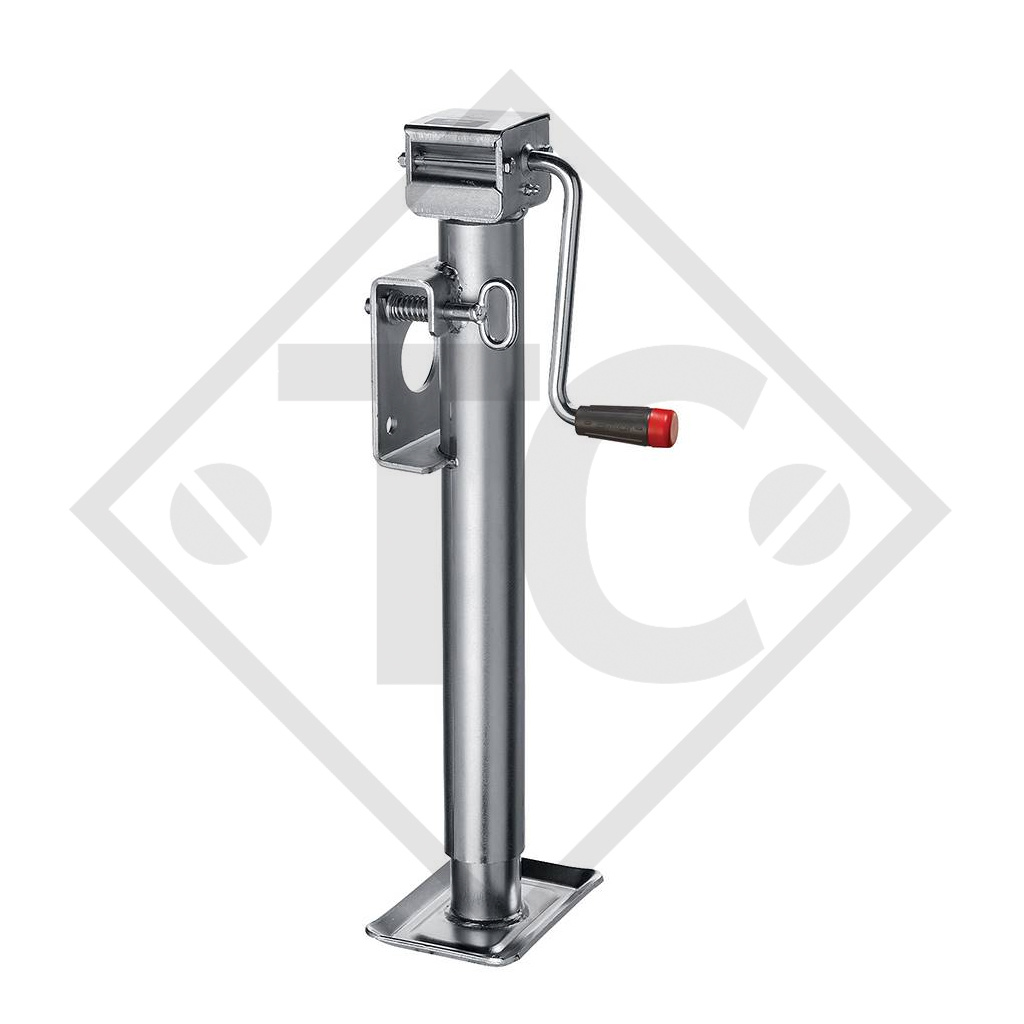

Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZKV WITH COUPLING HEAD / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZKV 35.1 B AK 3510 A WITH DRAWBAR SECTION 2500 TO 3500KG / Steday leg ⌀57mm, side crank and reductions gears, double speed, type LF 5101W, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 260mm, maxi. static load 3180kg, dimension D 425mm, dimension E 220mm, dimension G 120x165mm, dimension I 245mm. Read more...
| Outer tube |
⌀57mm |
| Screw stroke (extended length) | 260mm |
| Maxi. static load | 3180kg |

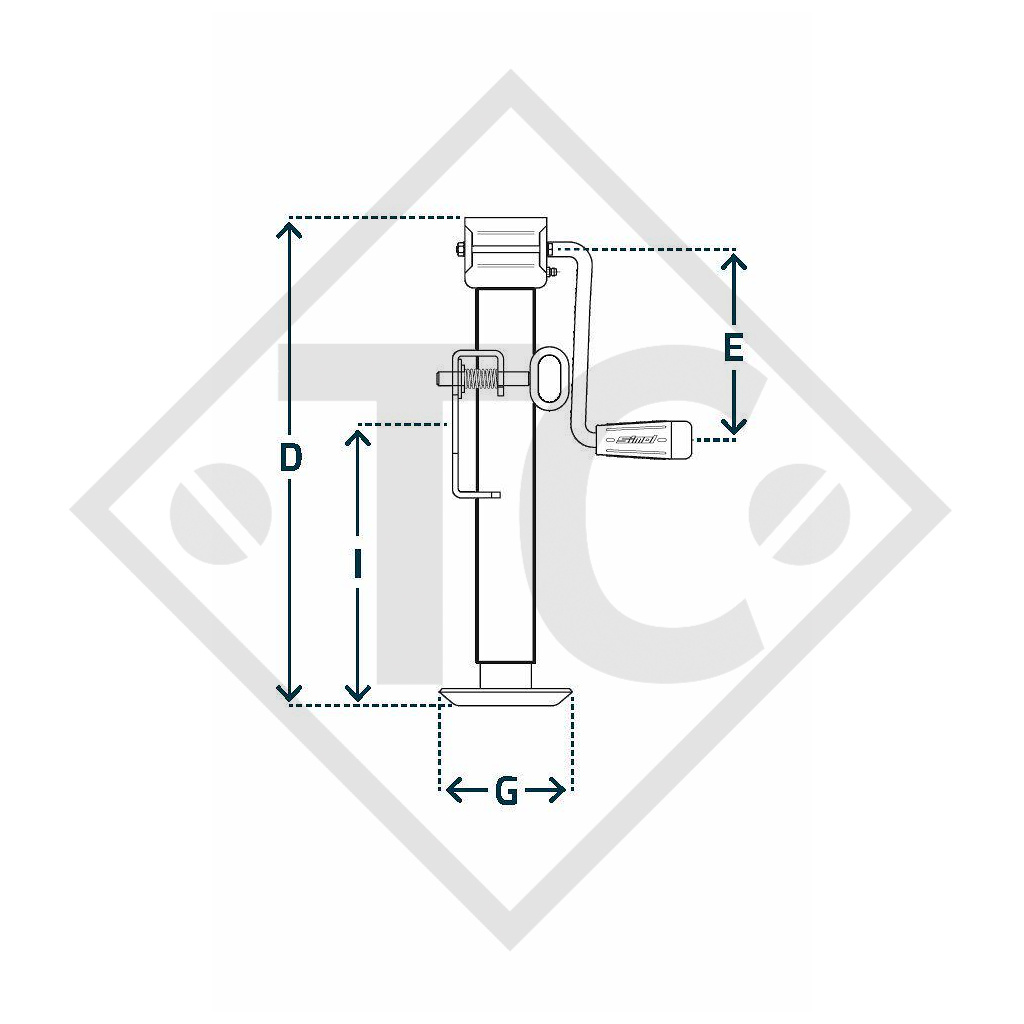

| Dimension D |
425mm |
| Dimension E |
220mm |
| Dimension G |
120x165mm |
| Dimension I |
245mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
