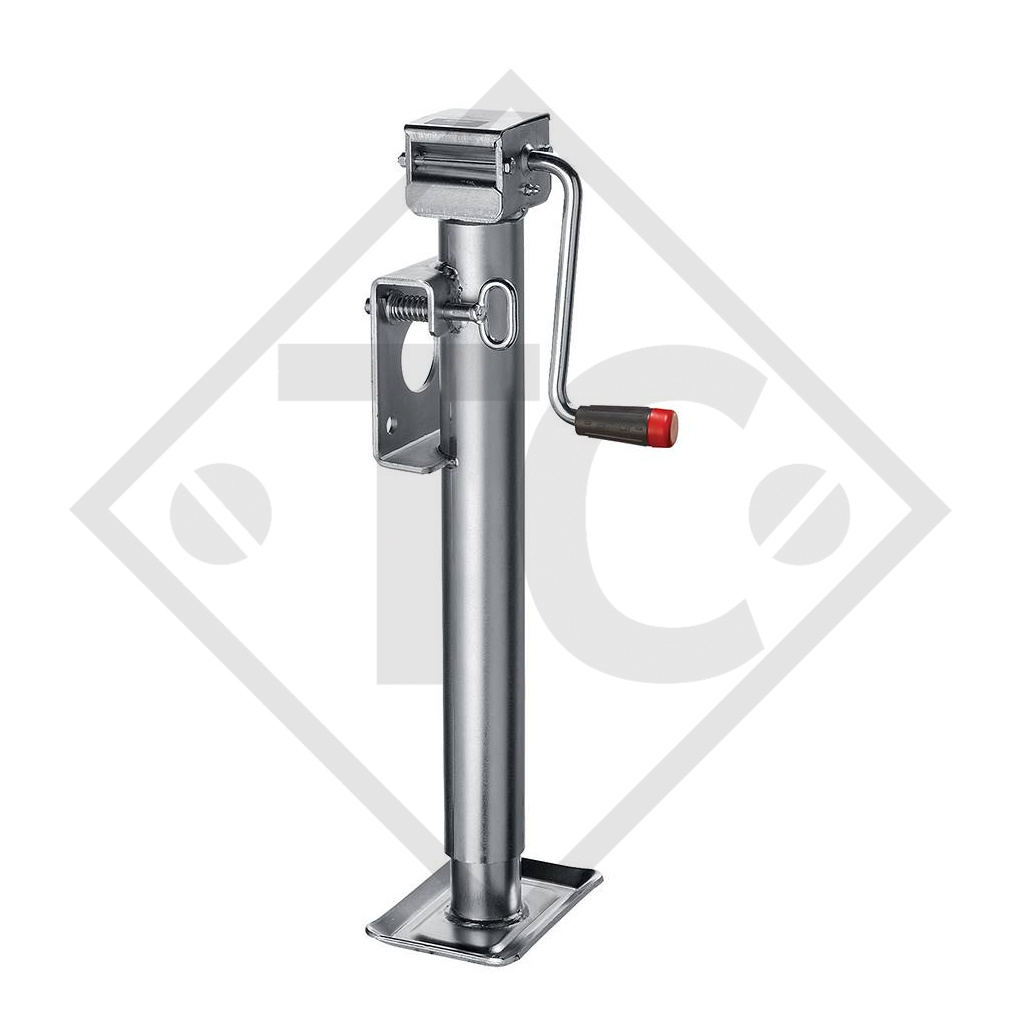

Home / Steday leg ⌀57mm, side crank and reductions gears, double speed, type LF 3101W, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 260mm, maxi. static load 1350kg, dimension D 425mm, dimension E 167mm, dimension G 120x165mm, dimension I 245mm. Read more...
| Outer tube |
⌀57mm |
| Screw stroke (extended length) | 260mm |
| Maxi. static load | 1350kg |

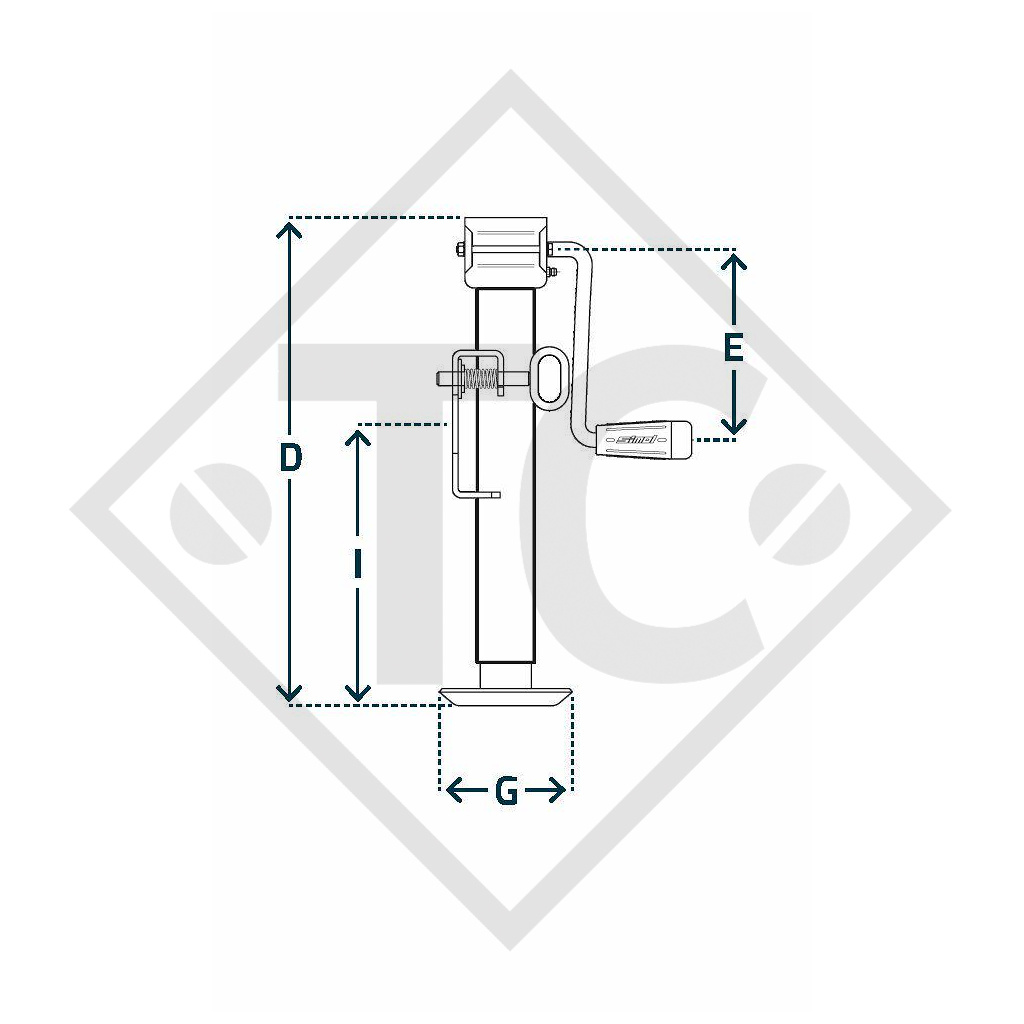

| Dimension D |
425mm |
| Dimension E |
167mm |
| Dimension G |
120x165mm |
| Dimension I |
245mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
