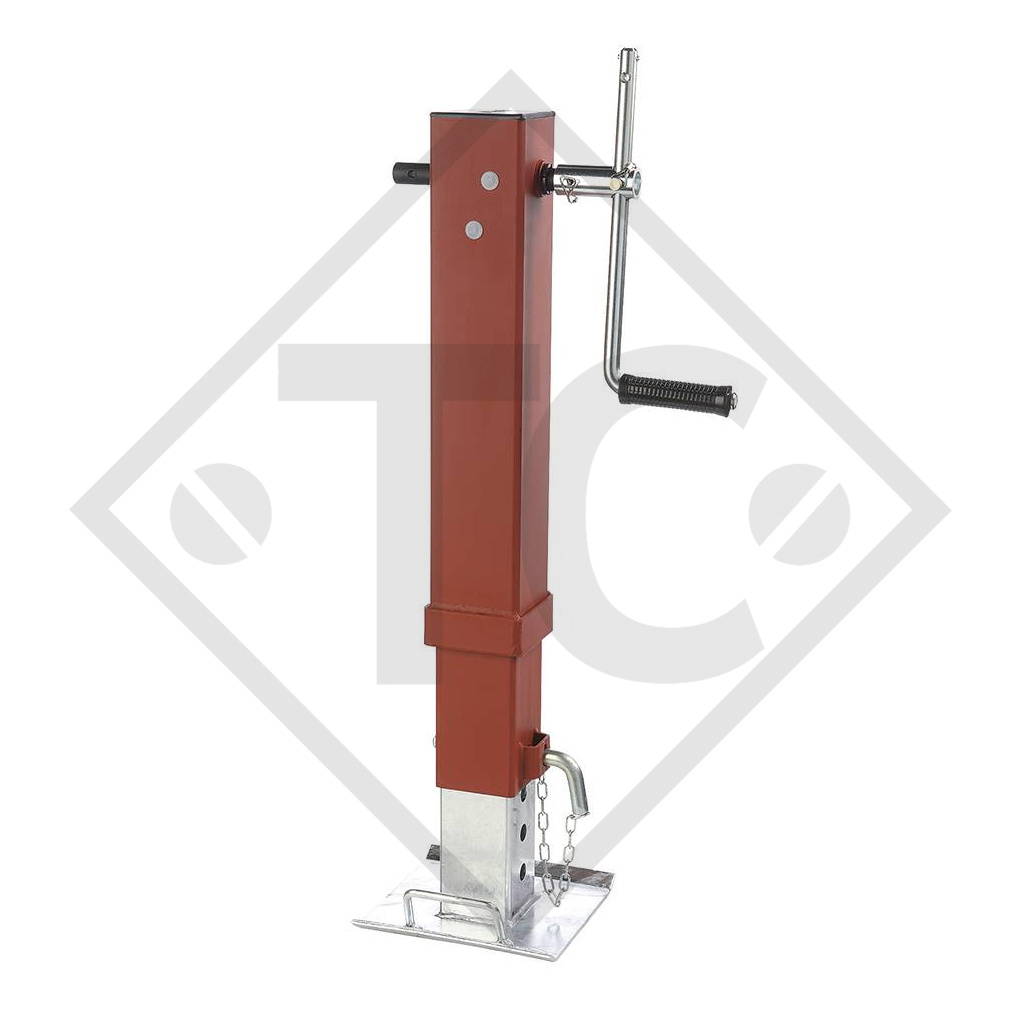

Home / Steday leg □110mm square with side crank, with reduction unit, three-stage, type K 450, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 310mm, maxi. static load 4500kg, dimension B 600mm, dimension C 360mm, dimension D 690mm, dimension E 325mm, dimension G 250mm, dimension H 300mm. Read more...
| Outer tube |
□110mm square |
| Screw stroke (extended length) | 310mm |
| Maxi. static load | 4500kg |

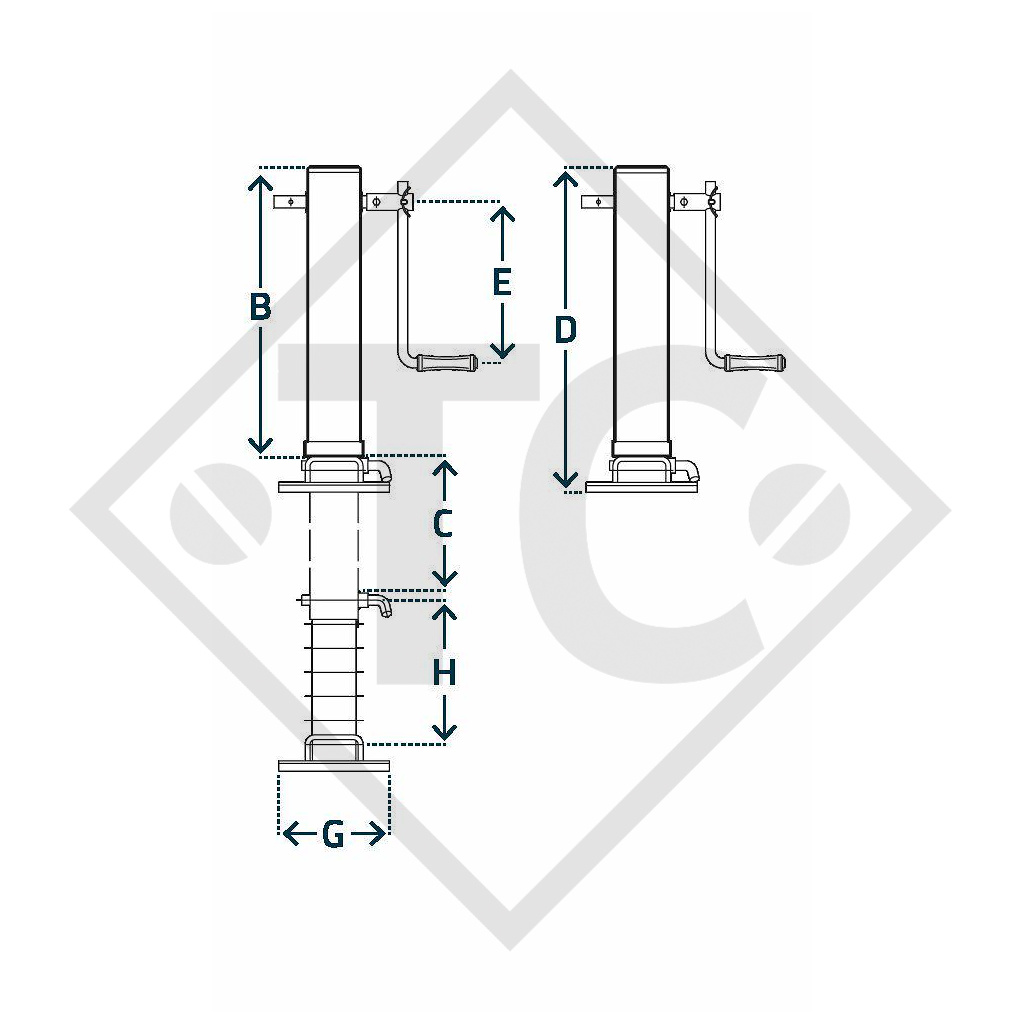

| Dimension B |
600mm |
| Dimension C | 360mm |
| Dimension D |
690mm |
| Dimension E |
325mm |
| Dimension G |
250mm |
| Dimension H | 300mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
