total length A 1767mm, drawbar length C 1140mm, drawbar section 60x60x4mm, perm. nose load 75kg, with coupling head AK 161, for wheel brake 1636G / 1637 / 2051. Read more...

Wishlist: Add to comparison:

Part no. 20061803

Total length A: 1767mm
Drawbar length C: 1140mm
Drawbar section: 60x60x4mm

INSTALLATION MANUAL
SPARE PART LIST 811172

TECHNOLOGY
Type 90 S/3 - R 4 vers. B 3
with coupling head AK 161 for wheel brake 1636G / 1637 / 2051 (90/27)
GA 700 to 1000 kg
Perm. nose load 75 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-033-92
ECE type approval no.:
Drawbar installation: E1 55R-01 0233
Drawbar: E1 55R-01 0388

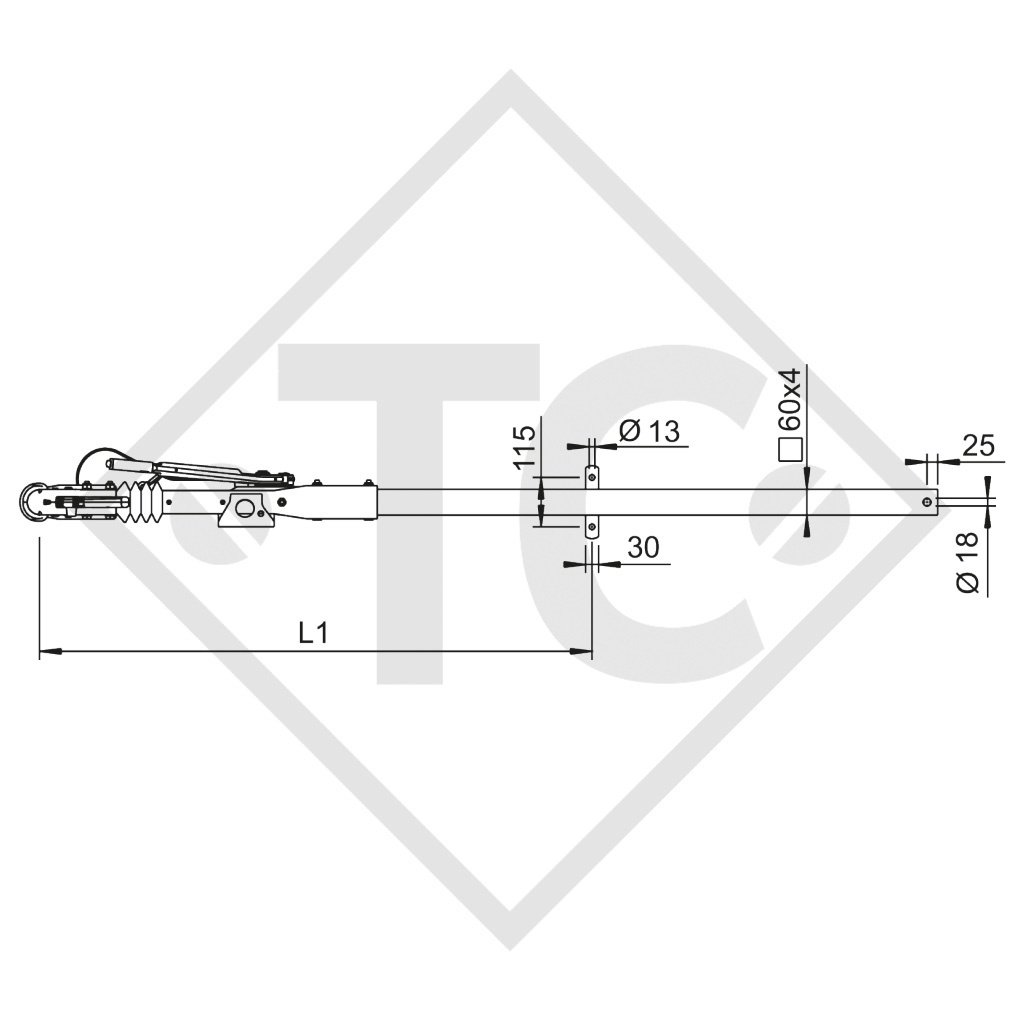

Max. free drawbar lenght at GA 1000 kg (L1): 1100 mm

SURFACE TREATMENT
Hot-dip galvanised
