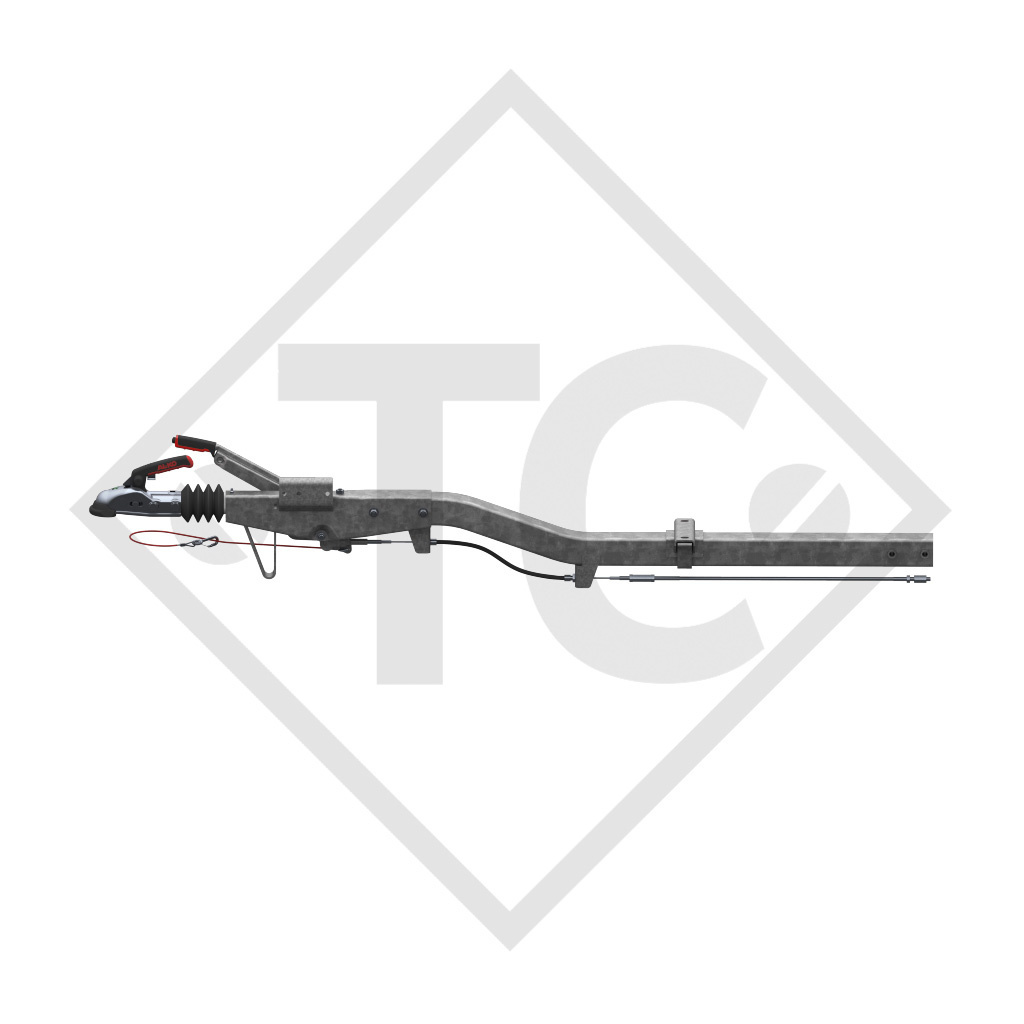

AL-KO Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg

Part no. 20061402

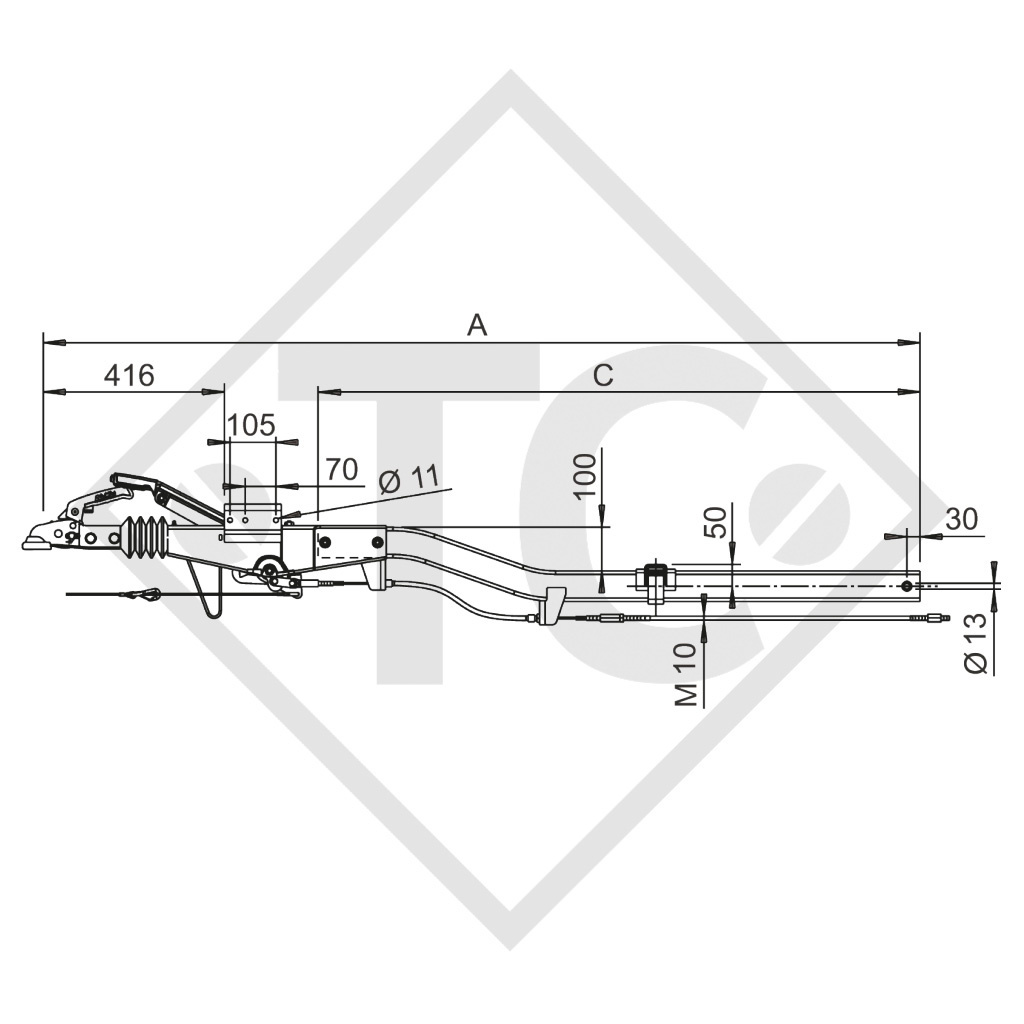

Total length A: 2016mm
Drawbar length C: 1540mm
Drawbar section: 70x70x4mm

INSTALLATION MANUAL
SPARE PART LIST 811172

TECHNOLOGY
Type 90 S/3 - K10 vers. A

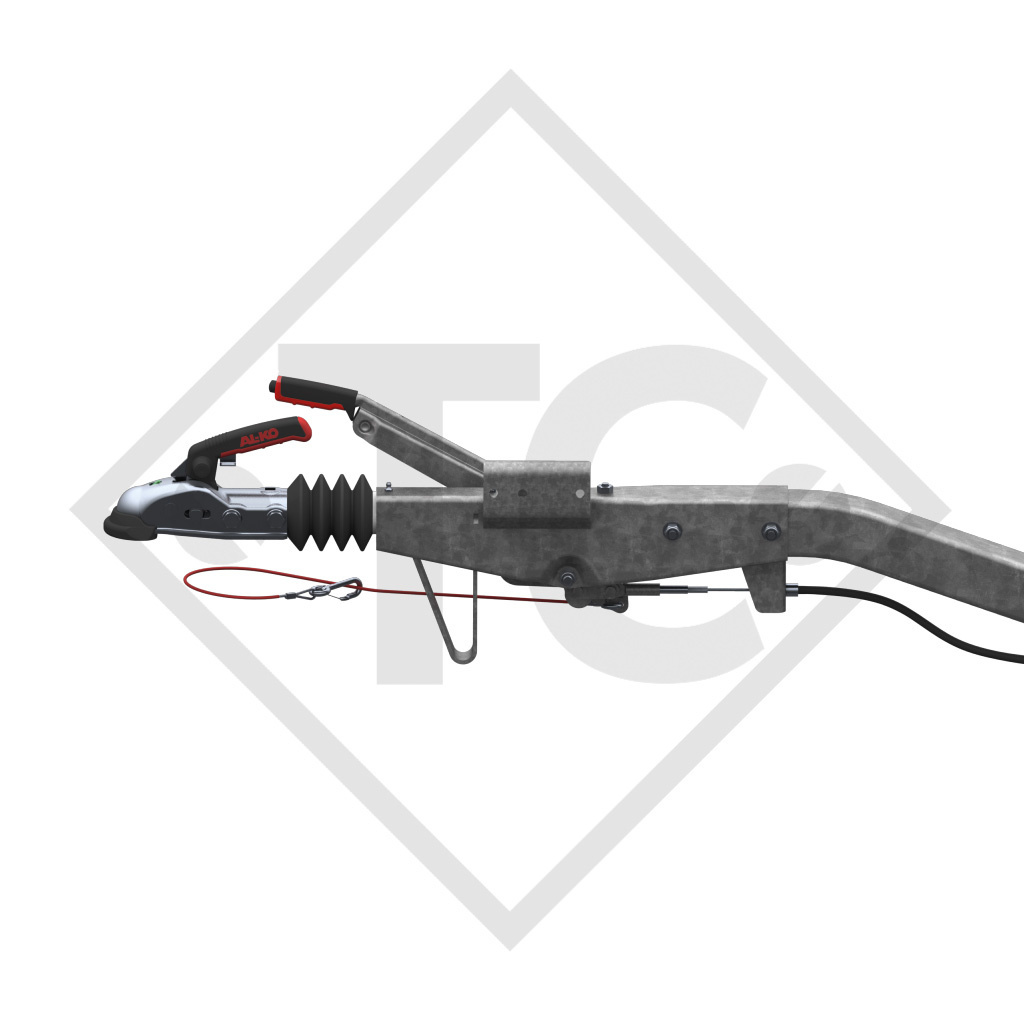

with coupling head AK 161 for wheel brake 1636G / 1637 / 2051 (90/27)
GA 700 to 1000 kg
Perm. nose load 75 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-033-92
ECE type approval no.:
Drawbar installation: E1 55R-01 0233
Drawbar: E1 55R-01 2390

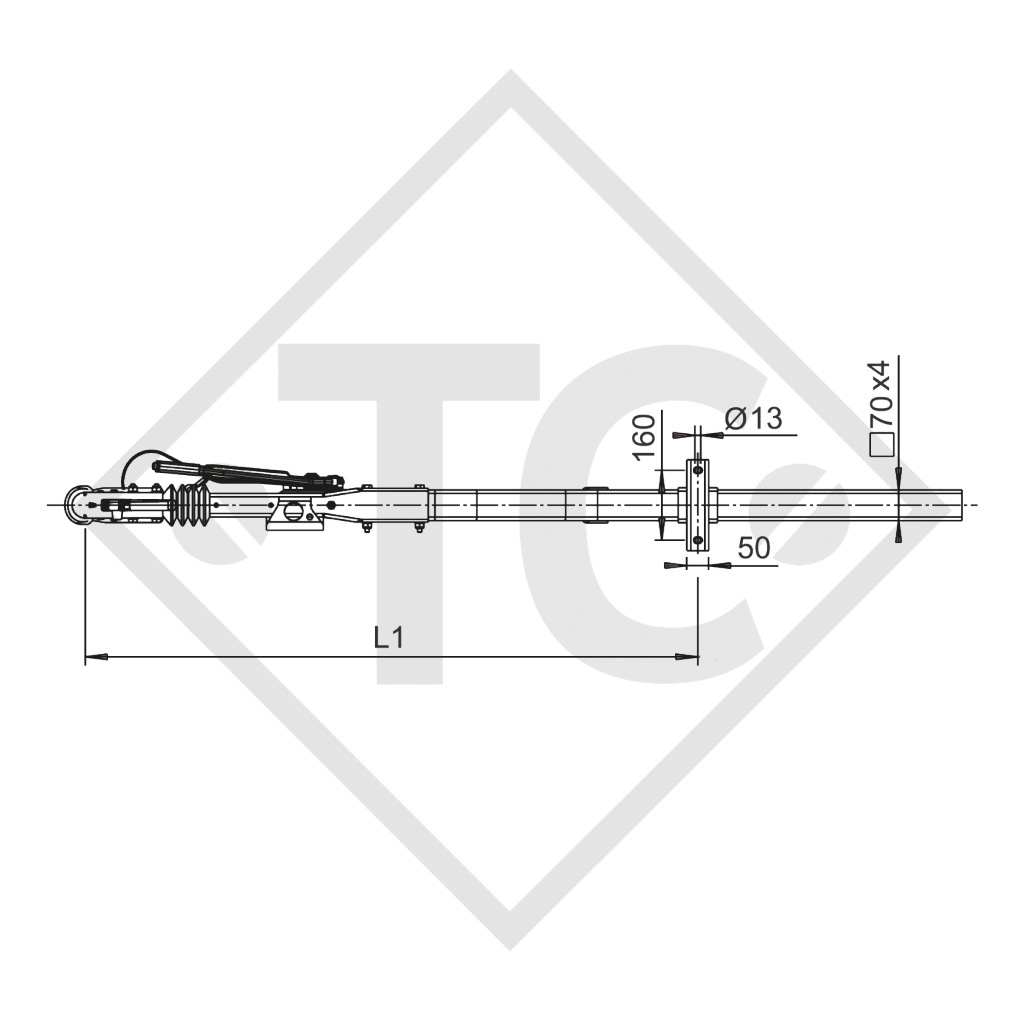

Max. free drawbar lenght at GA 1000 kg (L1): 1450 mm

SURFACE TREATMENT
Hot-dip galvanised
