total length A 2980mm, drawbar length C 2260mm, drawbar section 120x120x5mm, perm. nose load 150kg, without hitch component, for wheel brake 2361. Read more...

Wishlist: Add to comparison:

Part no. 20036371

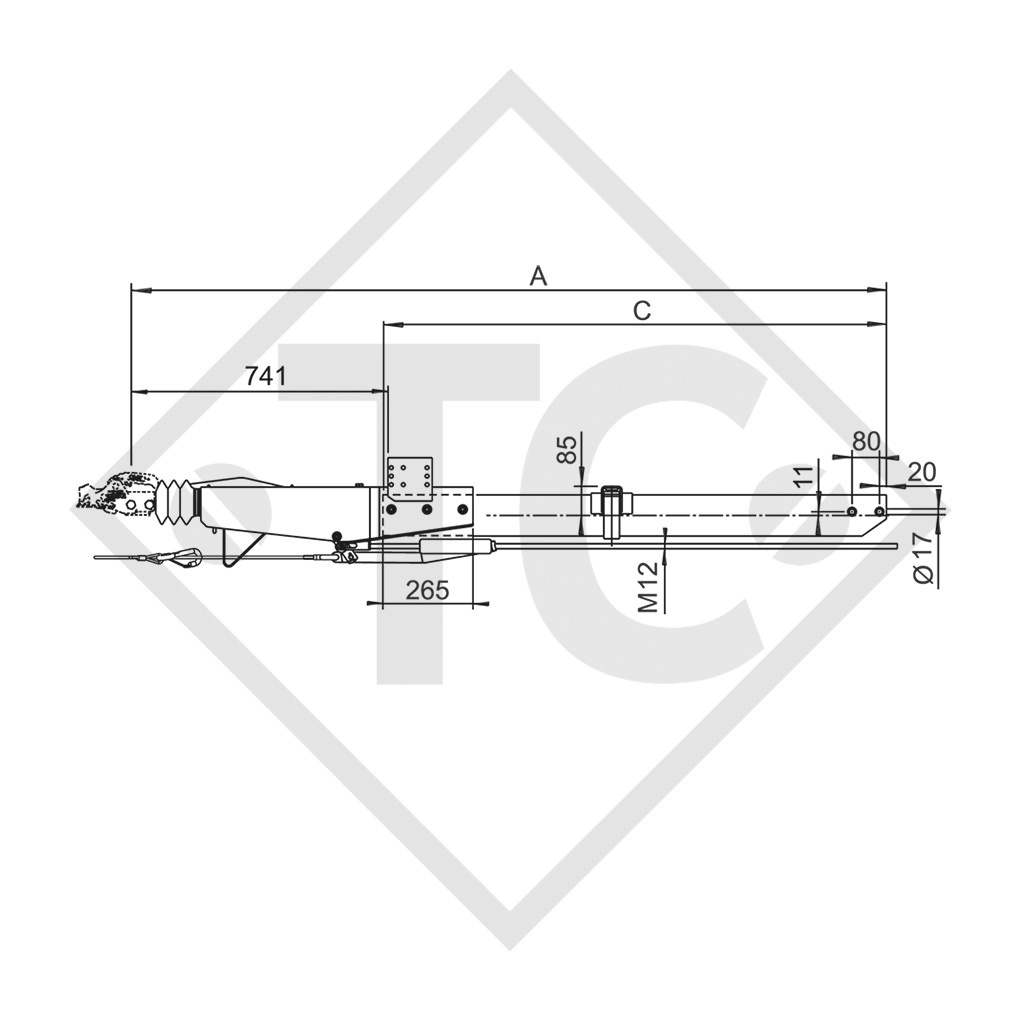

Total length A: 2980mm
Drawbar length C: 2260mm
Drawbar section: 120x120x5mm

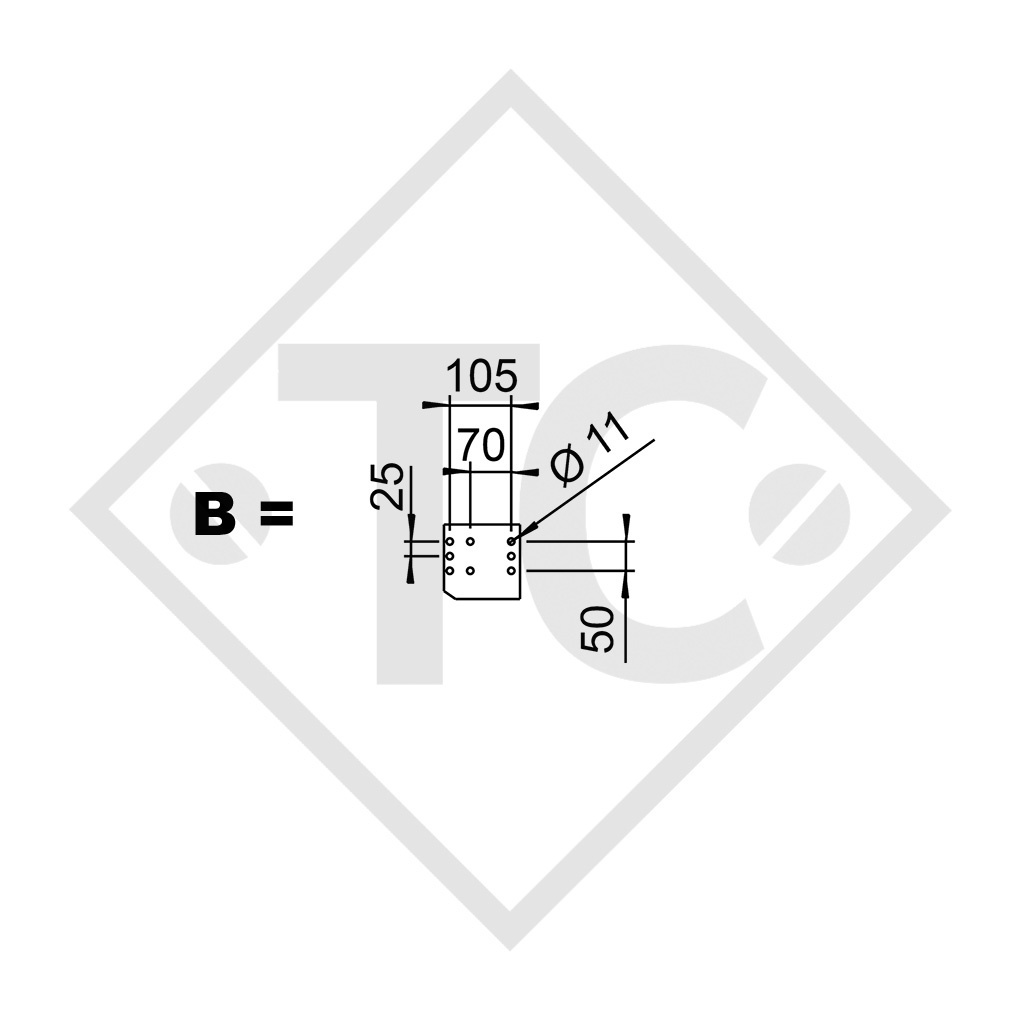

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811666

TECHNOLOGY
Type 2,8 VB/1-C - R35 vers. B
without hitch component for wheel brake 2361 (90/32)
GA 2500 to 3500 kg
Perm. nose load 150 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-0045-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0378
Drawbar: E1 55R-01 0762

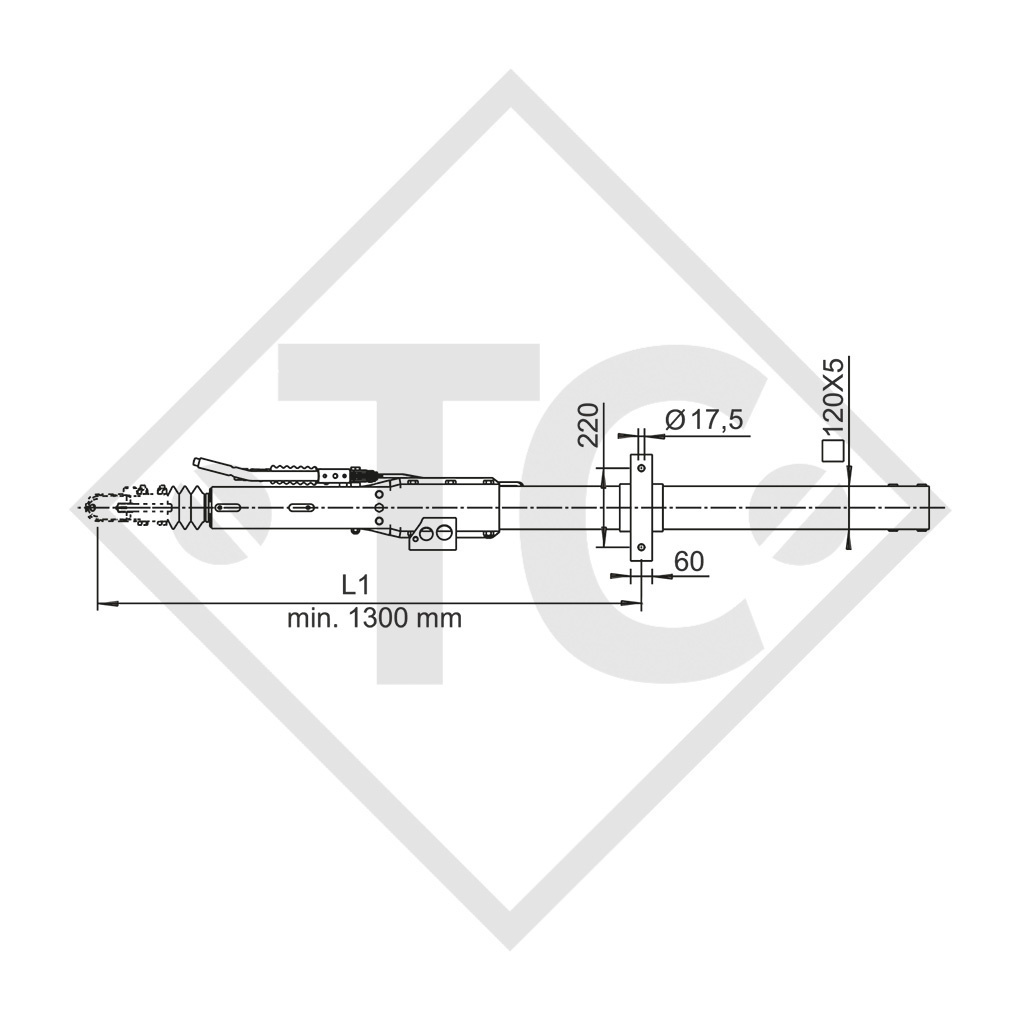

Max. free drawbar lenght at GA 3500 kg (L1): 1820 mm

SURFACE TREATMENT
Hot-dip galvanised
