total length A 2950mm, drawbar length C 2240mm, drawbar section 100x100x5mm, perm. nose load 100kg, with DIN drawbar eye D40/F, for wheel brake 2361. Read more...

Wishlist: Add to comparison:

Part no. 20036239

Total length A: 2950mm
Drawbar length C: 2240mm
Drawbar section: 100x100x5mm

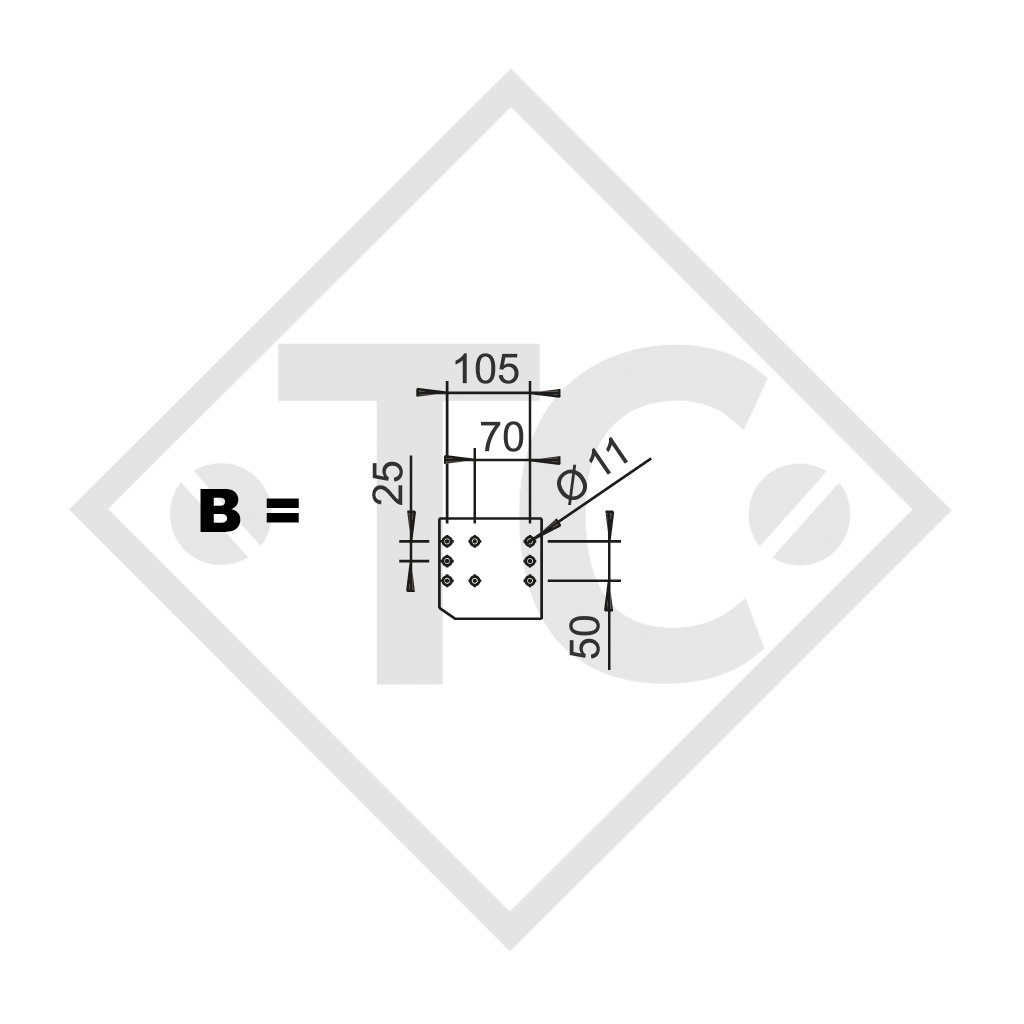

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811188

TECHNOLOGY

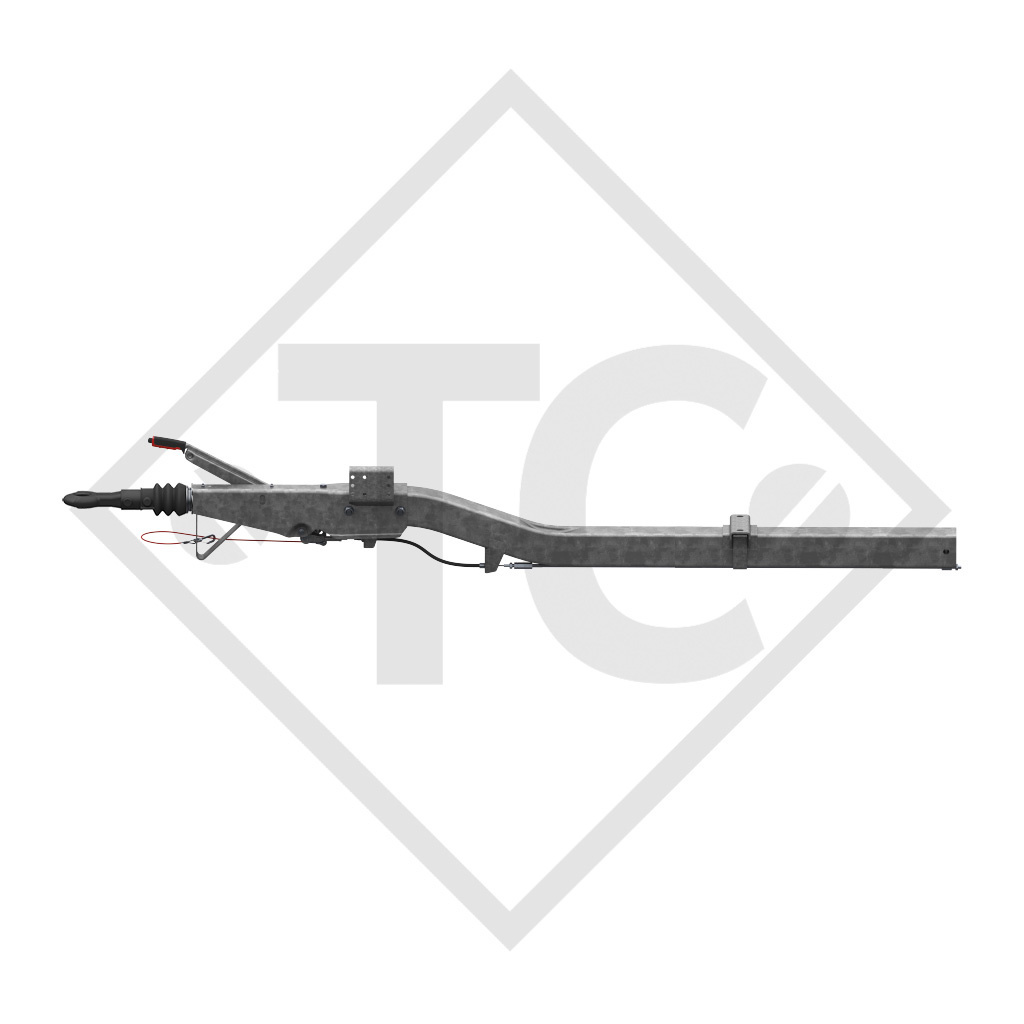

Type 251 S - K26 vers. B
with DIN drawbar eye D40/F for wheel brake 2361 (90/30)
GA 1500 to 2600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

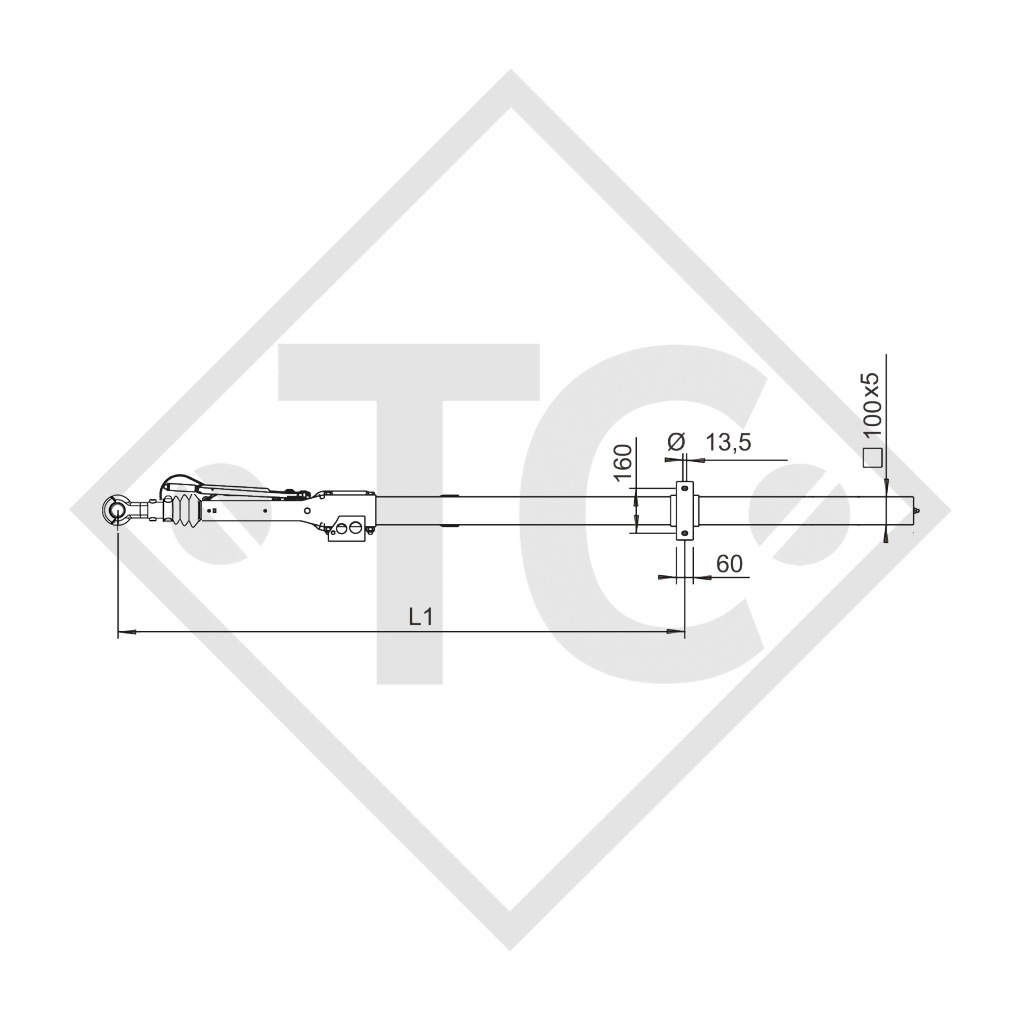

Max. free drawbar lenght at GA 2600 kg (L1): 1650 mm

SURFACE TREATMENT
Hot-dip galvanised
