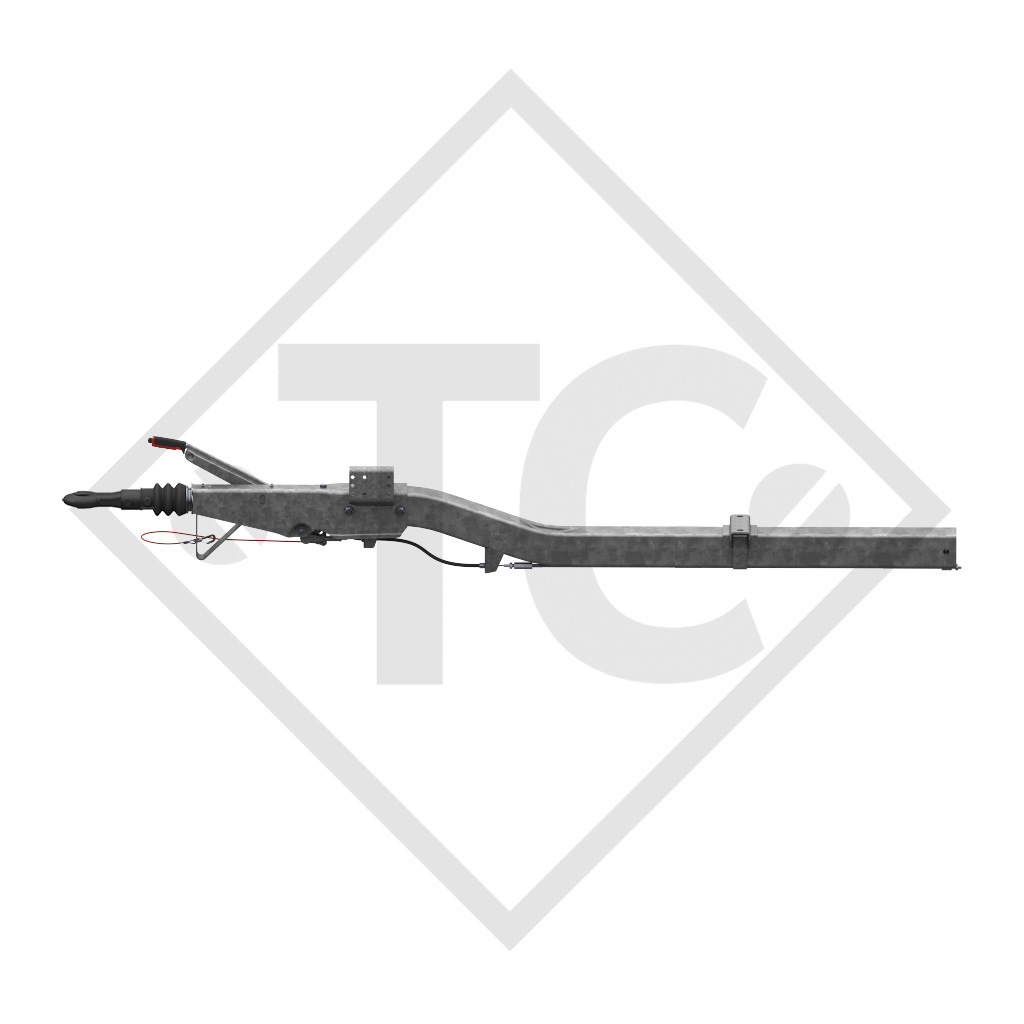

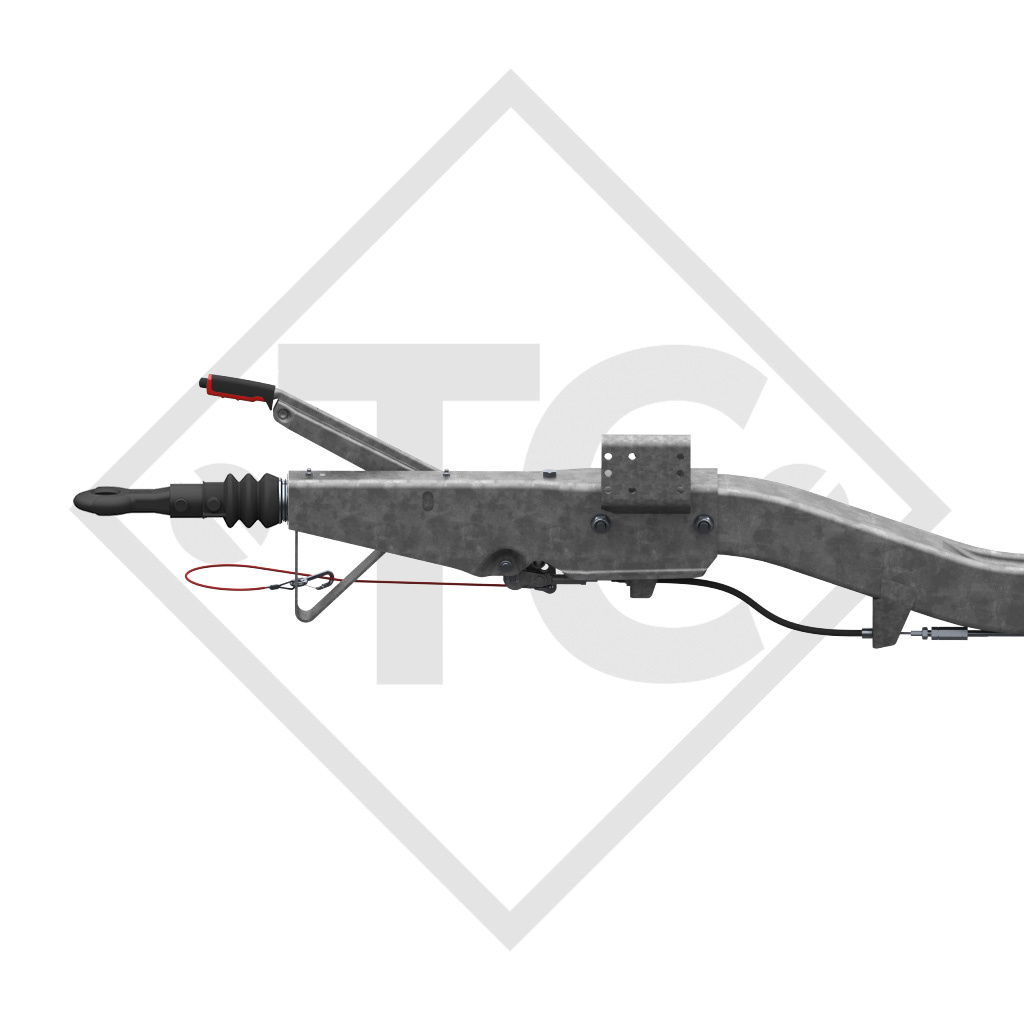

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / LOWERING AXLES 750 TO 3500KG, AXLE TYPE CB 755, CB 1055, CB 1355, CB 1505, CB1805, DB 2/1355, DB 2/1505 AND DB 2/1805 / LOWERING AXLES DOWN TO 200MM, AXLE TYPE DB2/1505, TANDEM TO 3000KG / Square overrun device type 251 S - K26 vers. B with drawbar section cranked 1500 to 2600kg
total length A 3590mm, drawbar length C 2880mm, drawbar section 100x100x5mm, perm. nose load 100kg, with DIN drawbar eye D40/F, for wheel brake 1637 / 2051. Read more...
Part no. 20036232

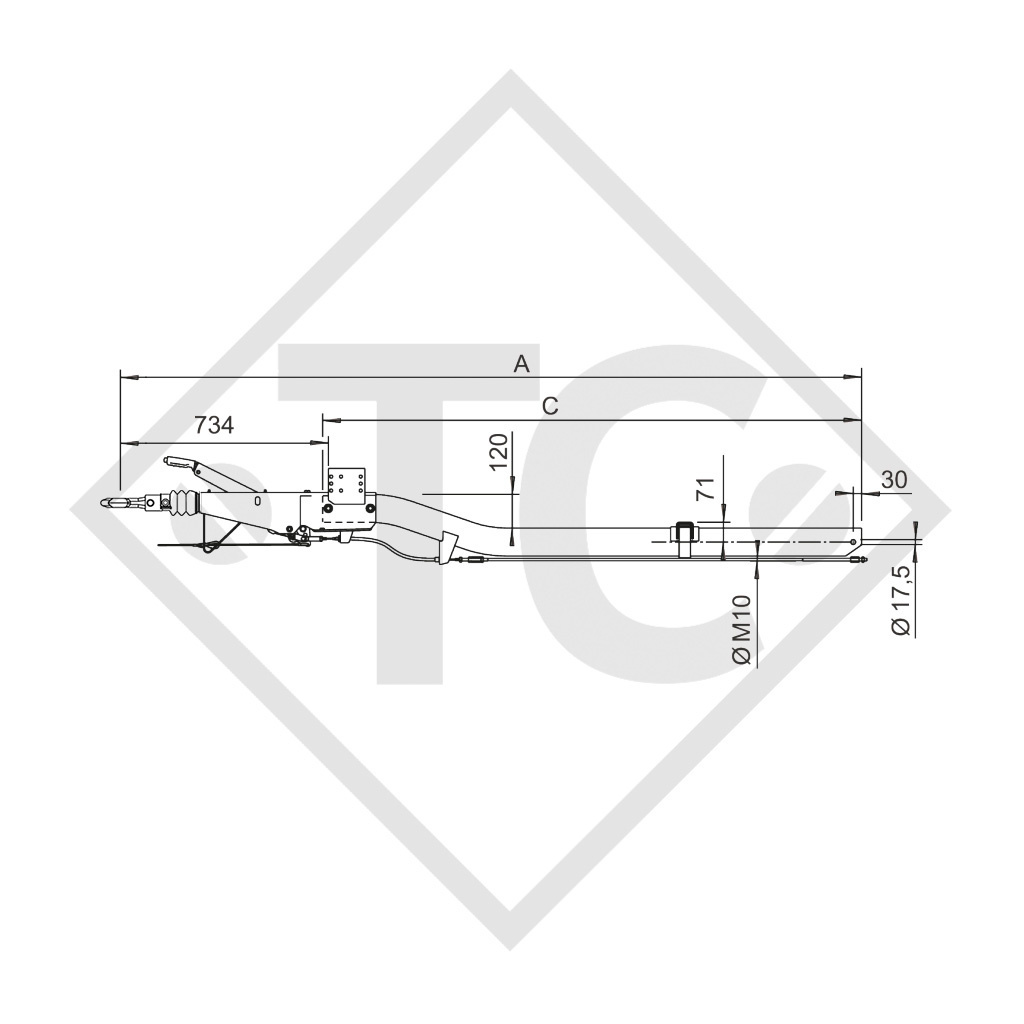

Total length A: 3590mm
Drawbar length C: 2880mm
Drawbar section: 100x100x5mm

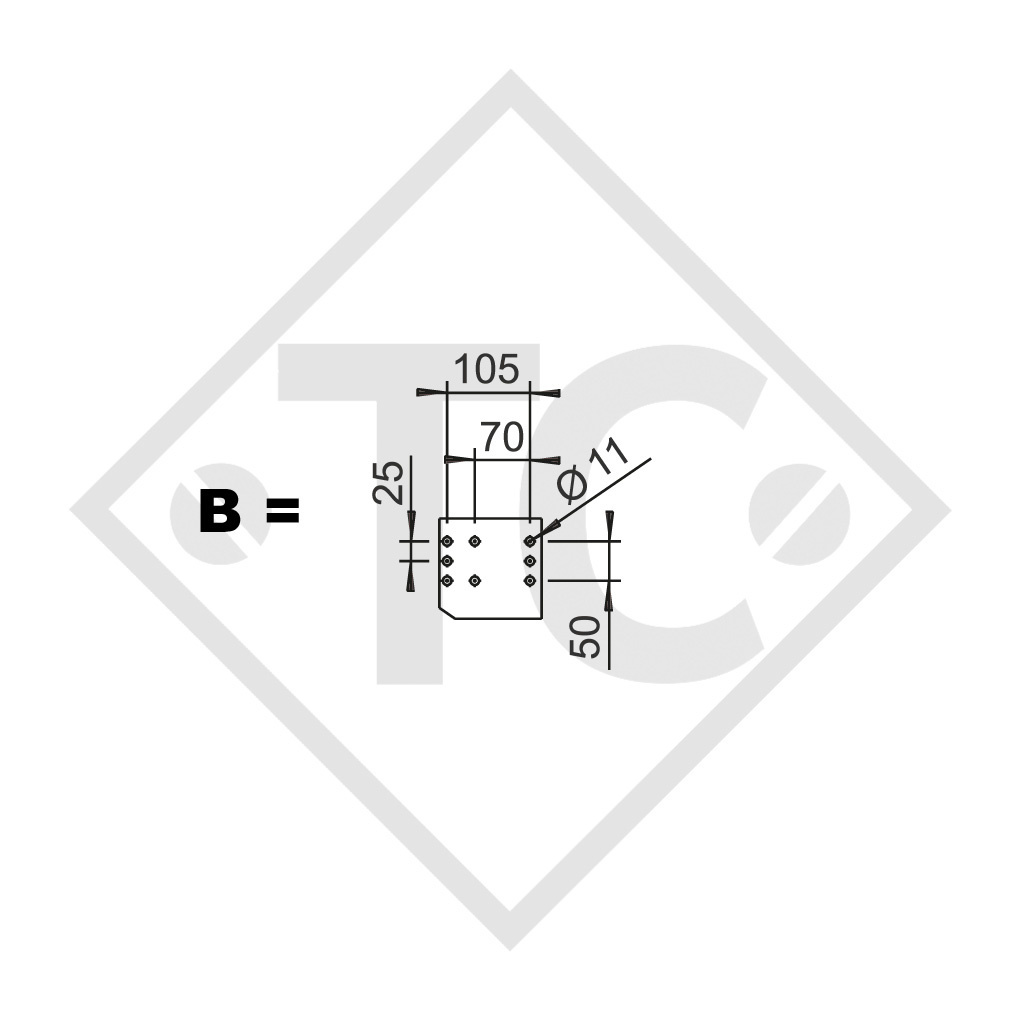

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811188
TECHNOLOGY
Type 251 S - K26 vers. B
with DIN drawbar eye D40/F for wheel brake 1637 / 2051 (90/27)
GA 1500 to 2600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

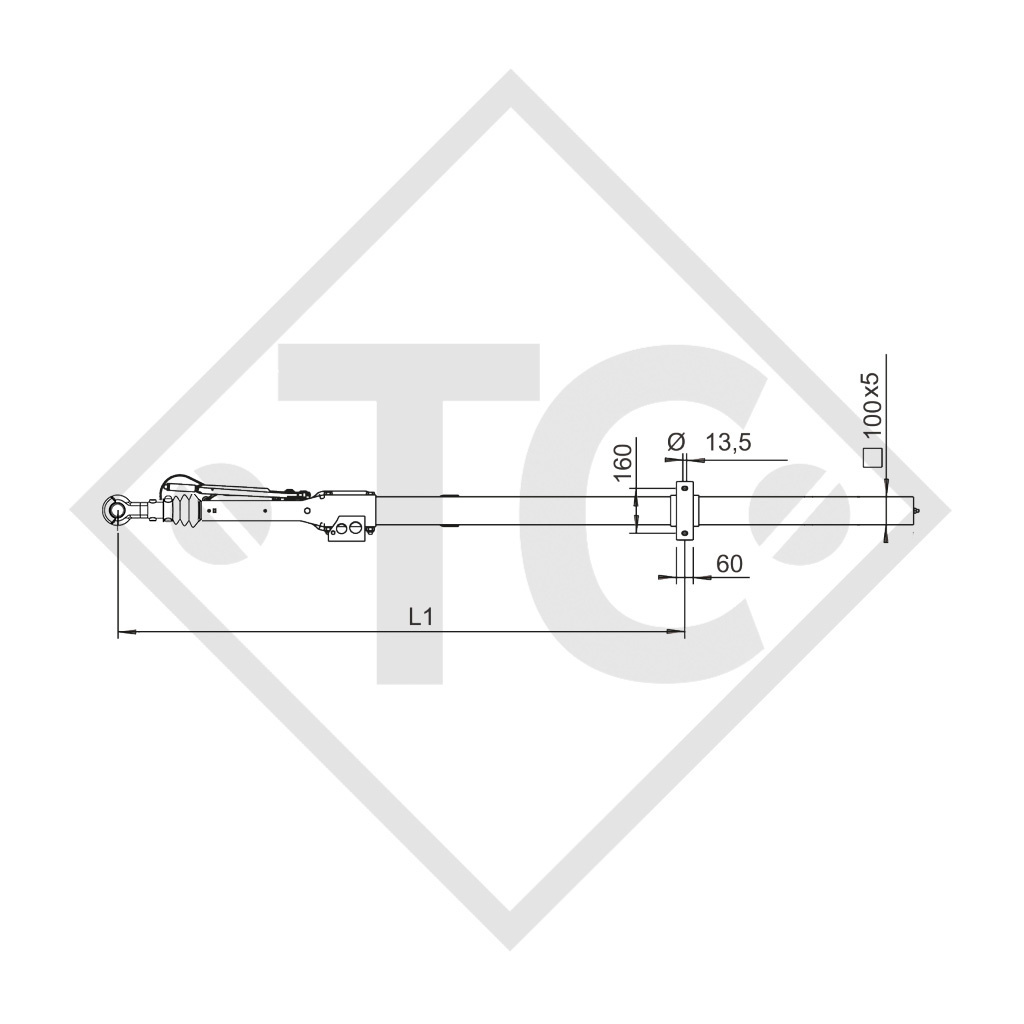

Max. free drawbar lenght at GA 2600 kg (L1): 1650 mm
SURFACE TREATMENT
Hot-dip galvanised
