total length A 3270mm, drawbar length C 2560mm, drawbar section 100x100x5mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 2361. Read more...
Part no. 20063109

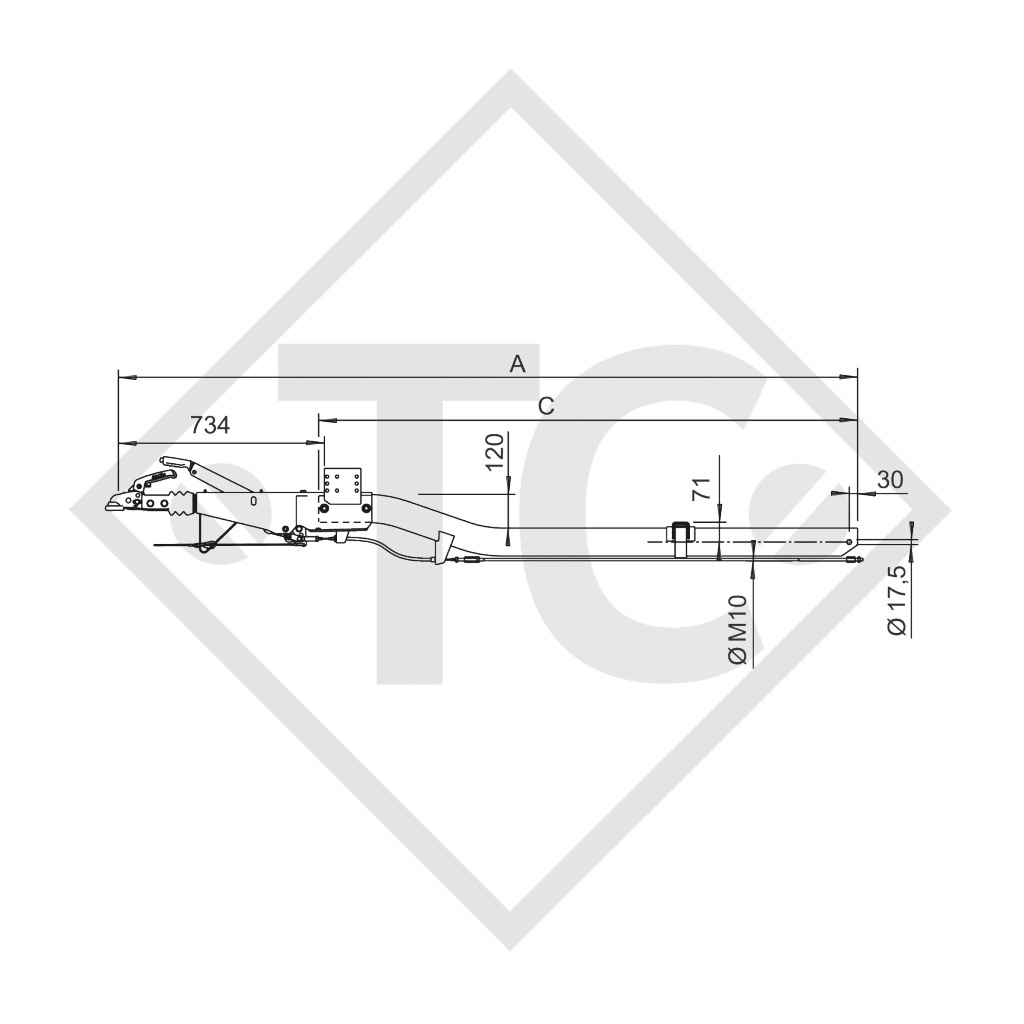

Total length A: 3270mm
Drawbar length C: 2560mm
Drawbar section: 100x100x5mm

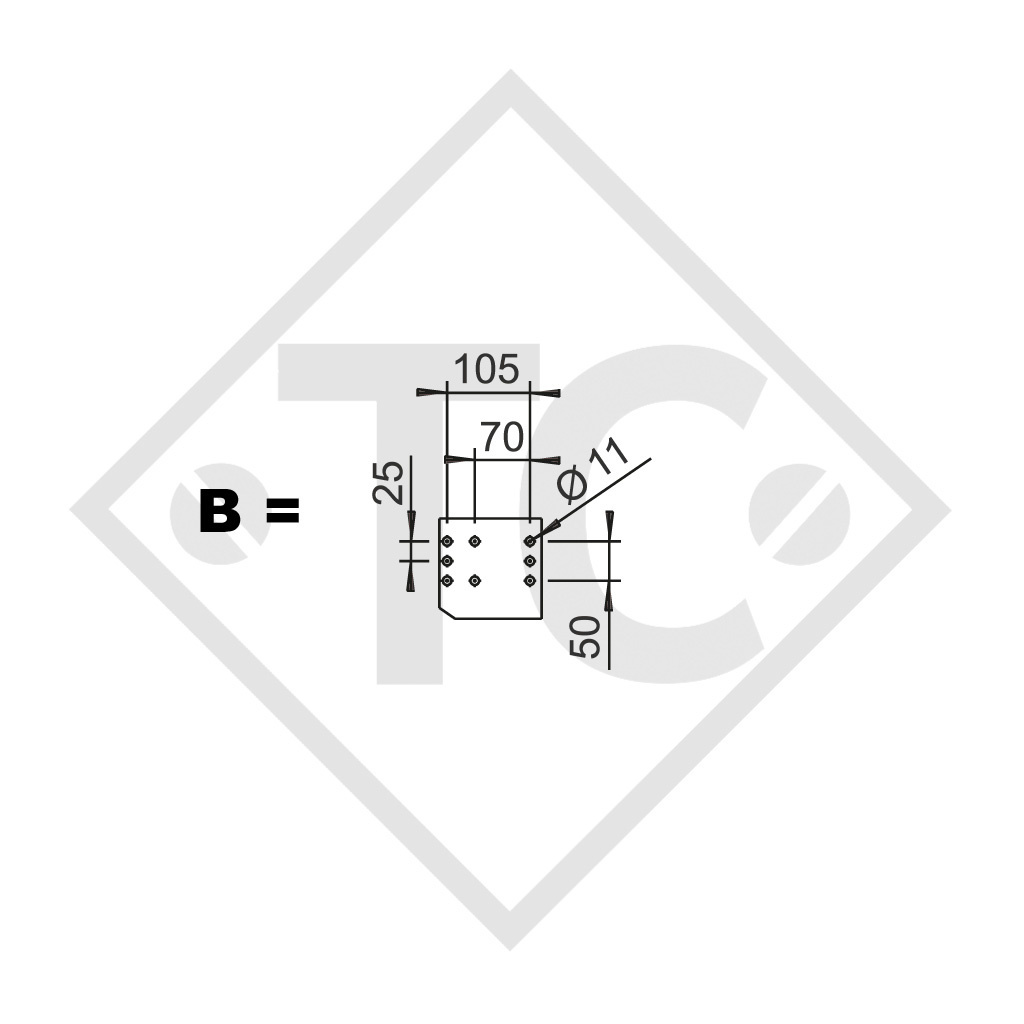

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811186
TECHNOLOGY
Type 251 S - K26 vers. B
with coupling head AK 270 for wheel brake 2361 (90/30)
GA 1500 to 2600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

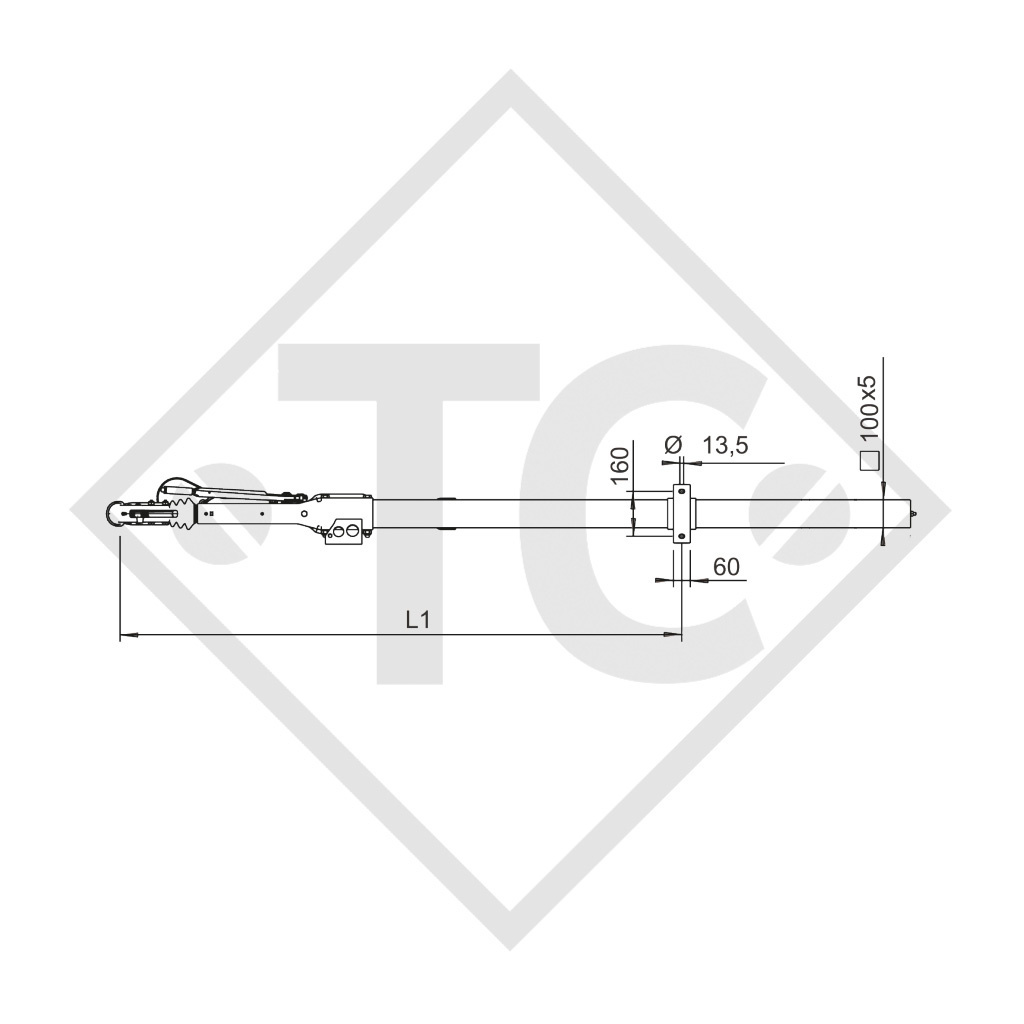

Max. free drawbar lenght at GA 2600 kg (L1): 1650 mm
SURFACE TREATMENT
Hot-dip galvanised
