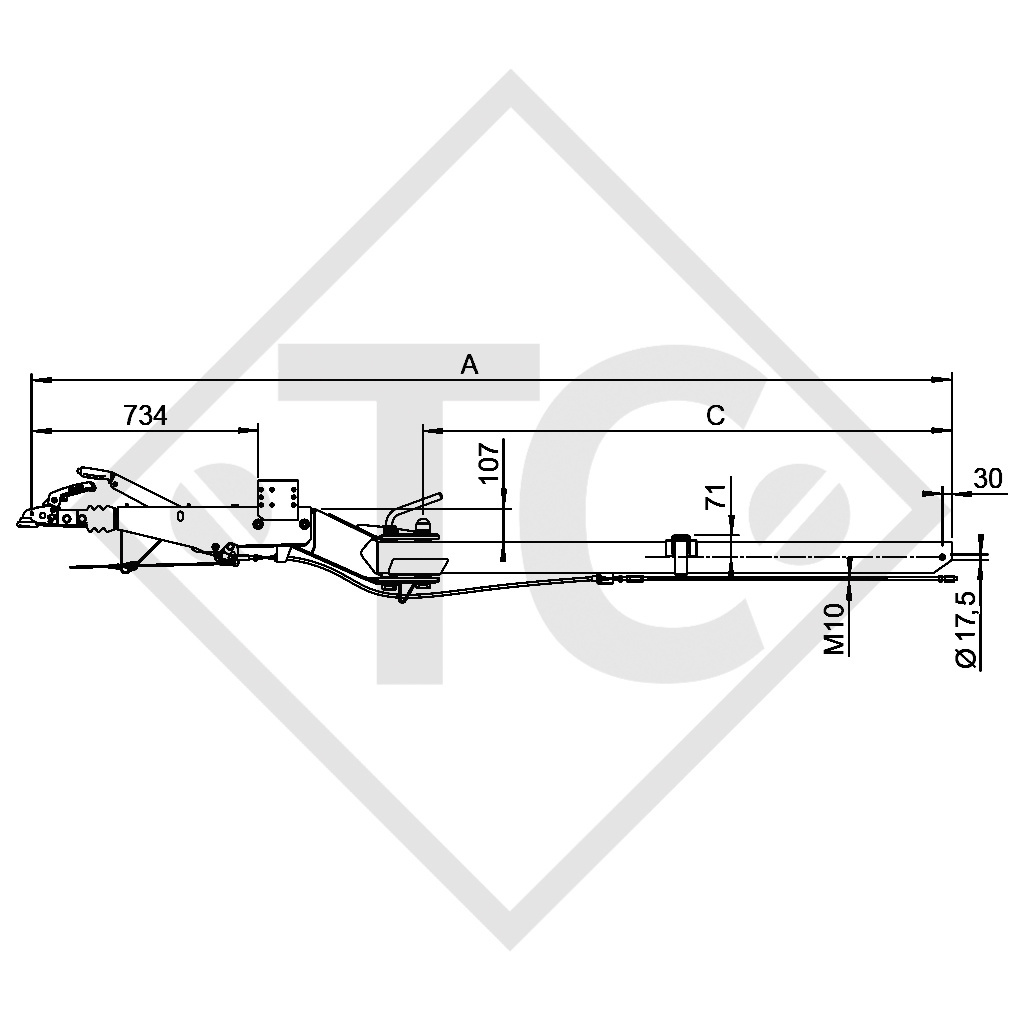

total length A 3530mm, drawbar length C 2270mm, drawbar section 100x100x6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 2361. Read more...

Wishlist: Add to comparison:
Price 1.973,00 EUR Incl. tax Excl. Shipping costs

Part no. 20063715
with coupling head AK 270 for wheel brake 2361 (90/30)

Dimension A
3530mm
Dimension C 2270mm



Original operating instructions
Replacement part identification number 811186

TECHNOLOGY
Type 251 S - K26-S
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01-0268
Drawbar: E1 55R-01-1551

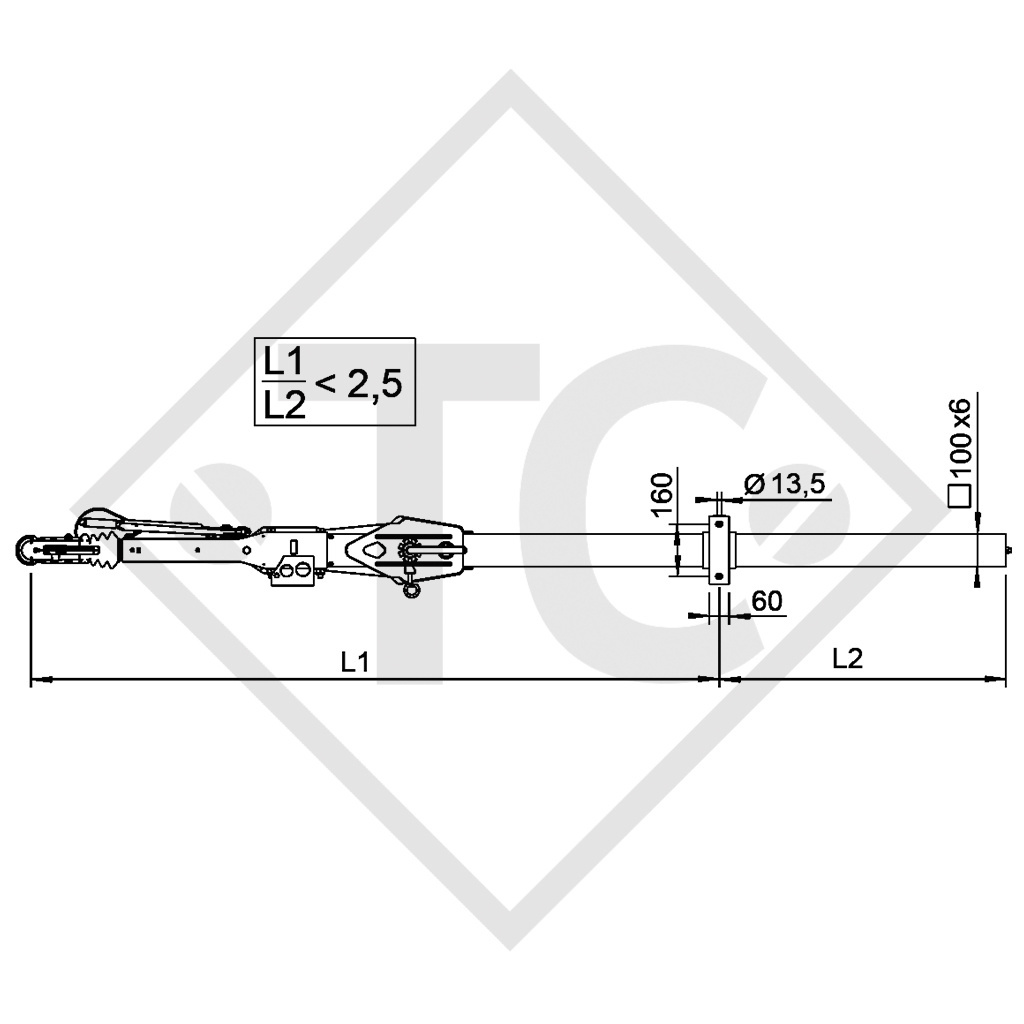

Max. free drawbar length (L1): 1600mm

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
