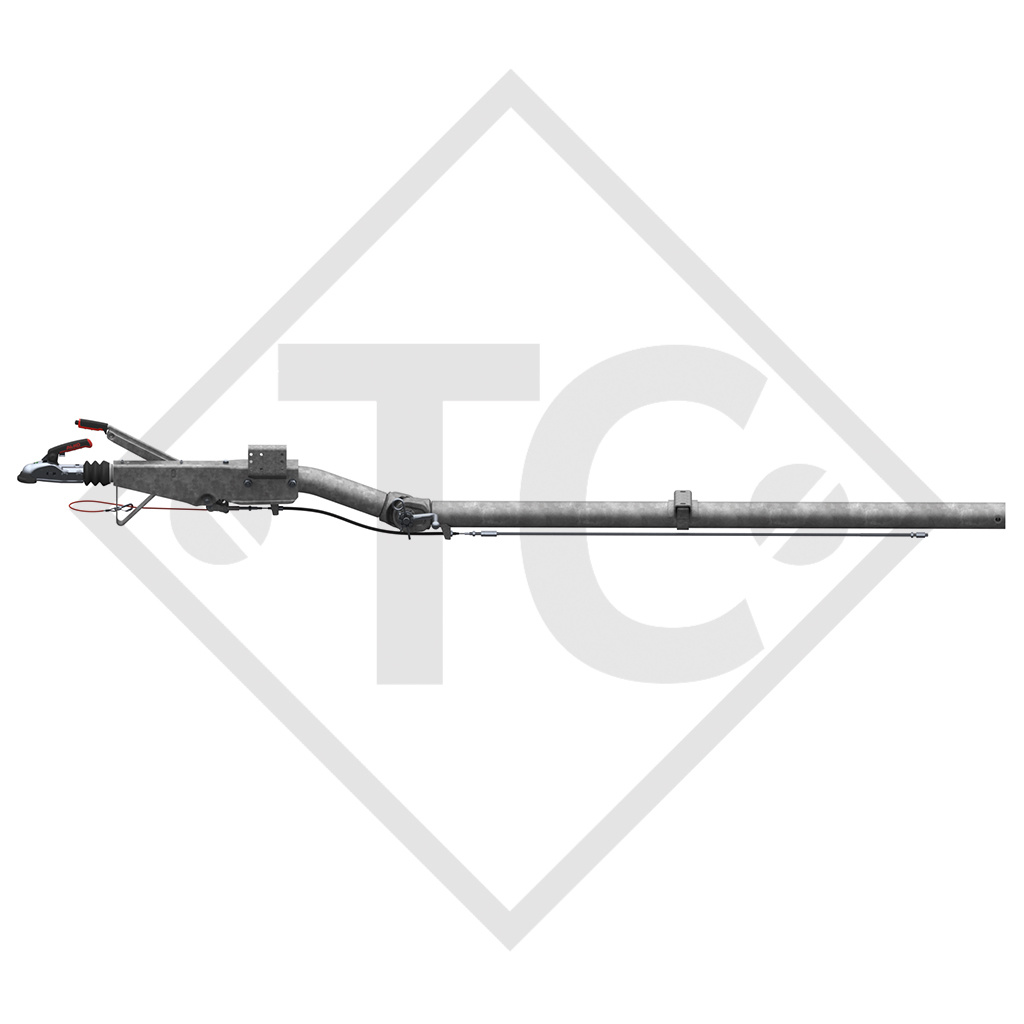

Square overrun device type 161 S - ZE 252R with removable drawbar section from 950 to 1600kg

total length A 2155mm, drawbar length C 895mm, drawbar section 88.9x7.1mm, perm. nose load 100kg, with coupling head AK 161, for wheel brake 1637 / 2051. Read more...

Wishlist: Add to comparison:

Price 1.400,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 20063401
with coupling head AK 161 for wheel brake 1637 / 2051 (90/27)

Dimension A

2155mm

Dimension C

895mm

Original operating instructions
Replacement part identification number 811187

TECHNOLOGY
Type 161 S - ZE 252R
GA 950 to 1600kg
Perm. nose load 100kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device 161S: 361-0047-97
ECE type approval no.:
Drawbar installation 161K: E1 55R-01-0267
Drawbar installation 252R: E1 55R-01-0536

Max. free drawbar length with GA 1600kg (L1): 1640mm

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

AL-KO Square overrun device type 161 S - ZE 252R with removable drawbar section from 950 to 1600kg

Product description
