Home / Square overrun device type 161 S - ZE 252R with removable drawbar section from 950 to 1600kg
total length A 3755mm, drawbar length C 2495mm, drawbar section 88.9x7.1mm, perm. nose load 100kg, with coupling head AK 161, for wheel brake 2361. Read more...
Part no. 20063511
with coupling head AK 161 for wheel brake 2361 (90/30)

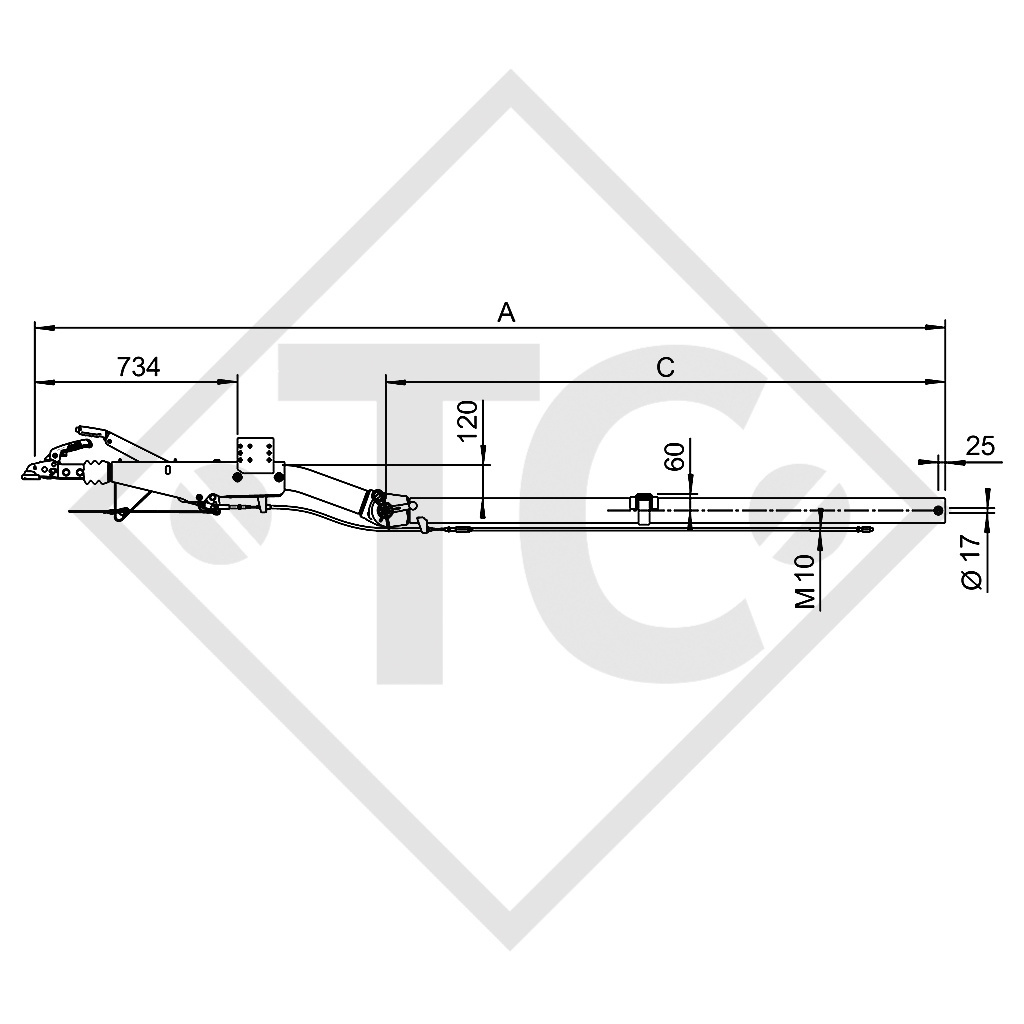

| Dimension A |
3755mm |
| Dimension C | 2495mm |
Original operating instructions
Replacement part identification number 811187
TECHNOLOGY
Type 161 S - ZE 252R
GA 950 to 1600kg
Perm. nose load 100kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device 161S: 361-0047-97
ECE type approval no.:
Drawbar installation 161K: E1 55R-01-0267
Drawbar installation 252R: E1 55R-01-0536

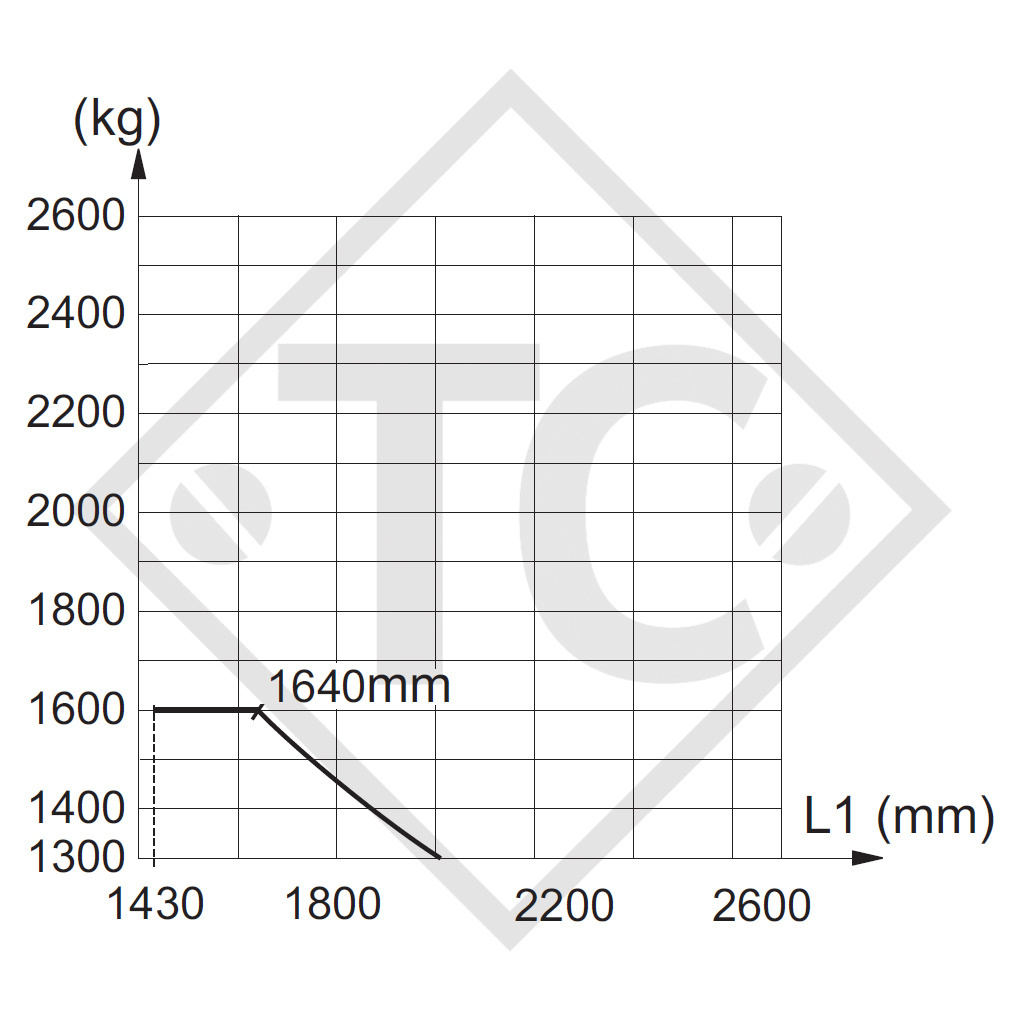

Max. free drawbar length with GA 1600kg (L1): 1640mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
