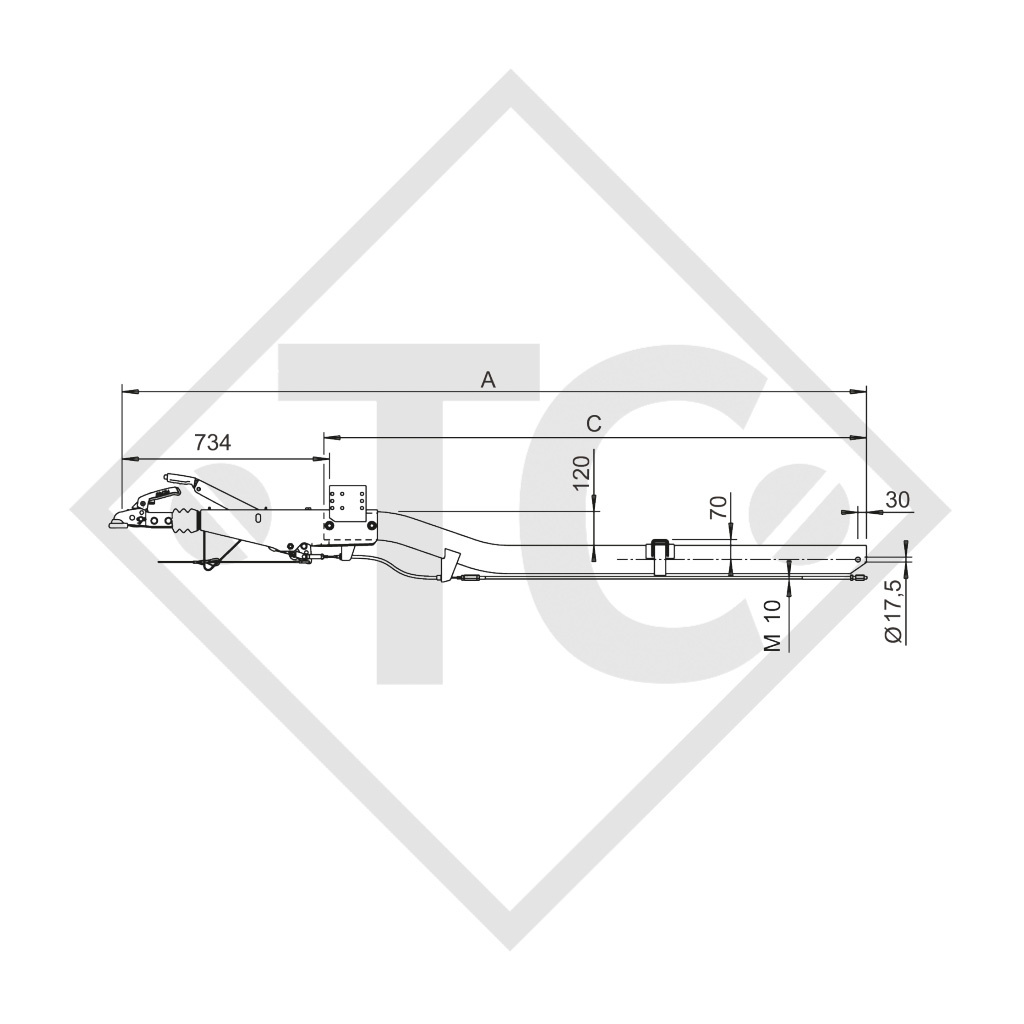

total length A 1990mm, drawbar length C 1280mm, drawbar section 100x100x4mm, perm. nose load 100kg, with coupling head AK 161, for wheel brake 1637 / 2051. Read more...

Wishlist: Add to comparison:

INSTALLATION MANUAL
SPARE PART LIST 811187

TECHNOLOGY
Type 161 S - K26 vers. A
GA 950 to 1600 kg
Perm. nose load 100 kg
Change-over relay lever: Yes

ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0925

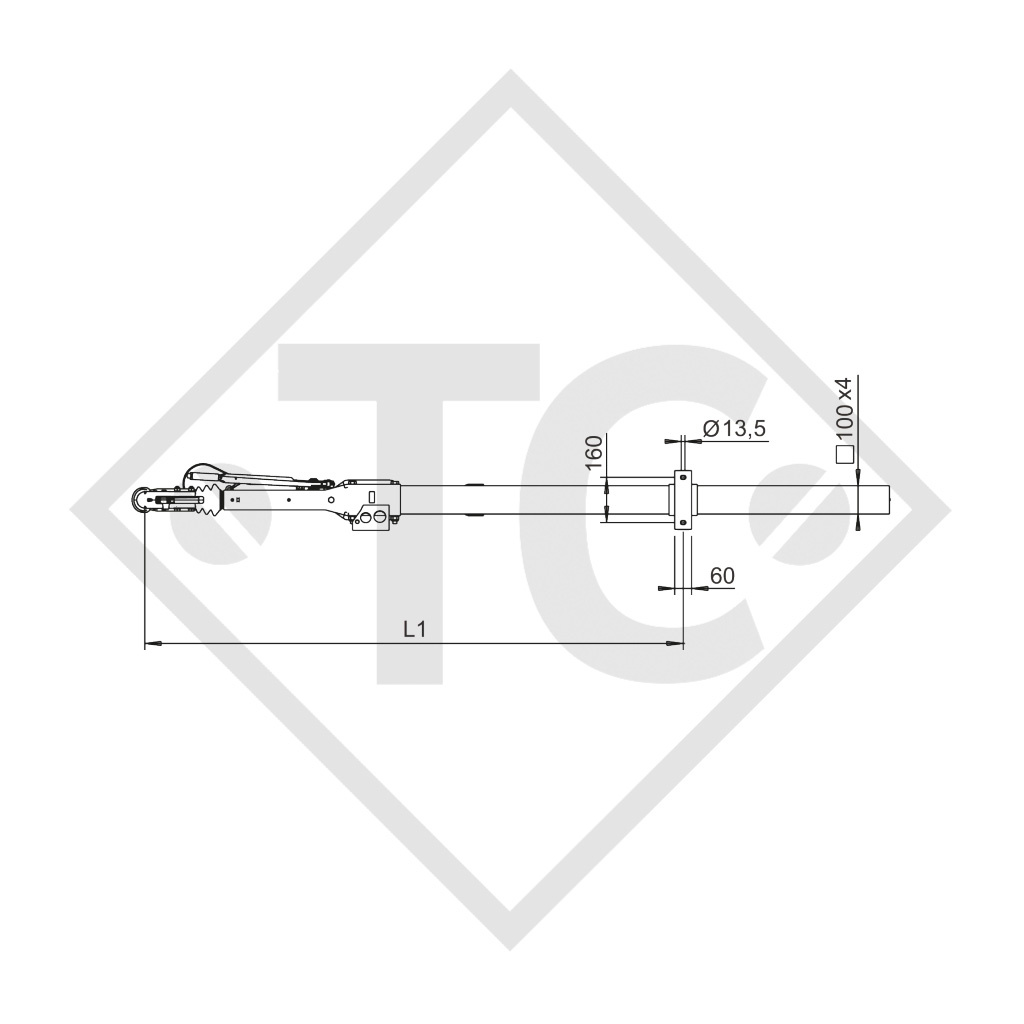

Max. free drawbar lenght at GA 1600 kg (L1): 2130 mm

SURFACE TREATMENT
Hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
