can be used with wheel brake 2361 from year of manufacture 1999, version with toothed profile, for one axle (2 wheel brakes left + right). Read more...

Wishlist: Add to comparison:
Price 355,00 EUR Incl. tax Excl. Shipping costs

Part no. 1730298

can be used with (1)
wheel brake 2361 ✓
from year of manufacture 1999 ✓

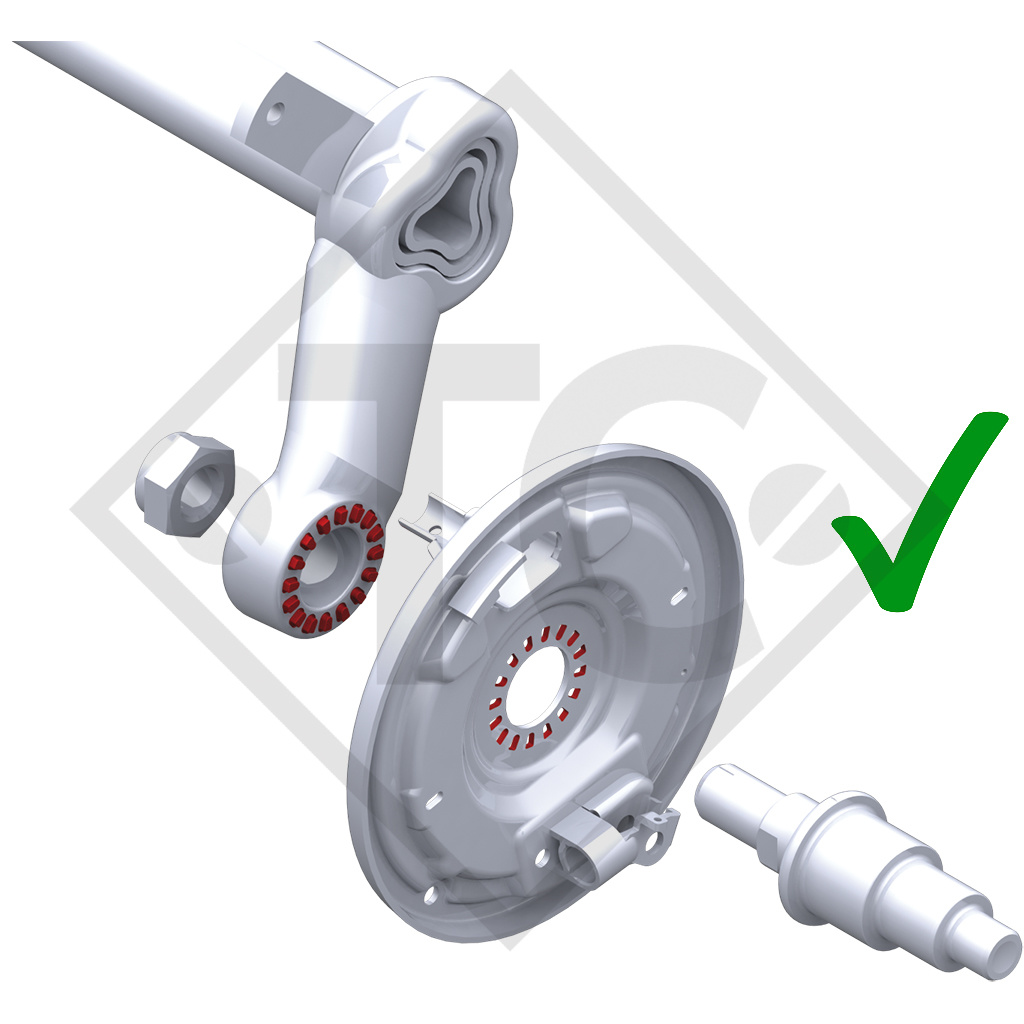

version with toothed profile ✓
Brake shoe diameter 230mm
Brake shoe width 60mm
Casting number brake shoes - - - -

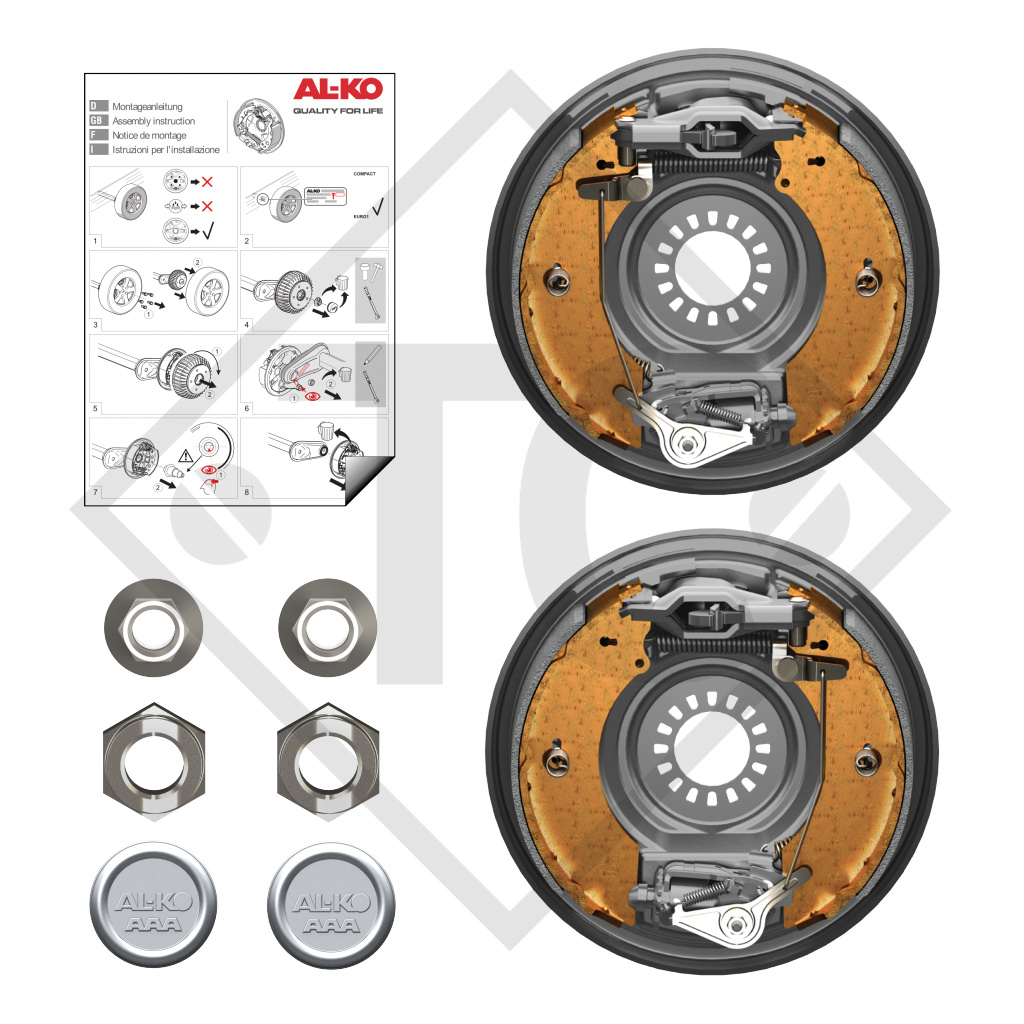

Scope of delivery for one axle (2 wheelbrakes) - see illustration 1
2x break system

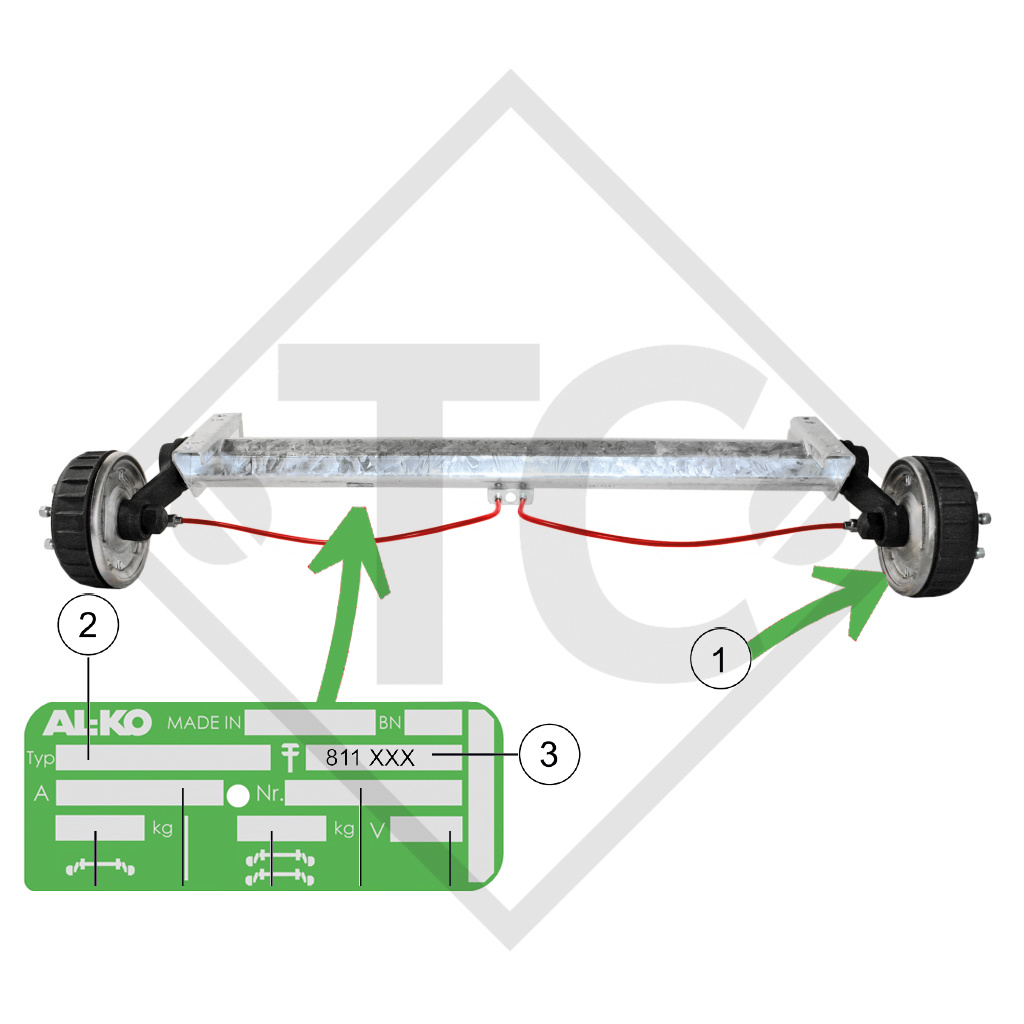

For axle type (2)
ASB 1800
B 1600-1
B 1800-9
B 2000-0
BL 1800
BL 2000
BS 1800
CB 1800

Suitable for replacement part identification number (3)

811003 811136 811467



Readjust Brakesystem Service
Assembly instruction
Wheelbrake service guide

Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.

Use only parts and accessories from AL-KO. Original parts vs. replica.

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.



AL-KO AAA PREMIUM BRAKE
The high-performance brake

THE PREMIUM BRAKE THAT ADJUSTS AUTOMATICALLY

Suitable for AL-KO wheel brakes, and thus for most trailers with AL-KO axles.
The proven wheel brakes with their braking values far above the average are supplemented by the automatic adjustment function.
When driving in reverse, adjustment is deactivated to prevent the brake from locking up.
Easy changeover to the latest technology via a pre-assembled system (AL-KO screw system).

BRAKING DISTANCE IS TIME

As soon as the brake has excess play, the AAA automatically readjusts. This means the brake system is always optimally adjusted, so you save valuable braking distance in a dangerous situation. E.g. car with caravan perm. gross weight 1500kg:



AL-KO AAA Premium Brake

Braking from 100 km/h
with poorly adjusted brake
system: 79m
Braking from 100 km/h with optimally
adjusted brake system: 74m
= 5 m shorter braking distance = 1 vehicle length



THE ADVANTAGES FOR YOU

Greater driving safety by a braking distance up to 5m shorter.
Greater ride comfort through smooth braking without jolting when setting off.
Lower maintenance costs due to extended service intervals and dispensing with the first workshop visit after 1000km.
No renewed presentation to TÜV required following installation
Tip: Change over to the AAA Premium Brake the next time you change your brake pads, if not before.

AL-KO AAA Premium Brake

Braking distance without AAA 79m
Braking distance with AAA 74m
