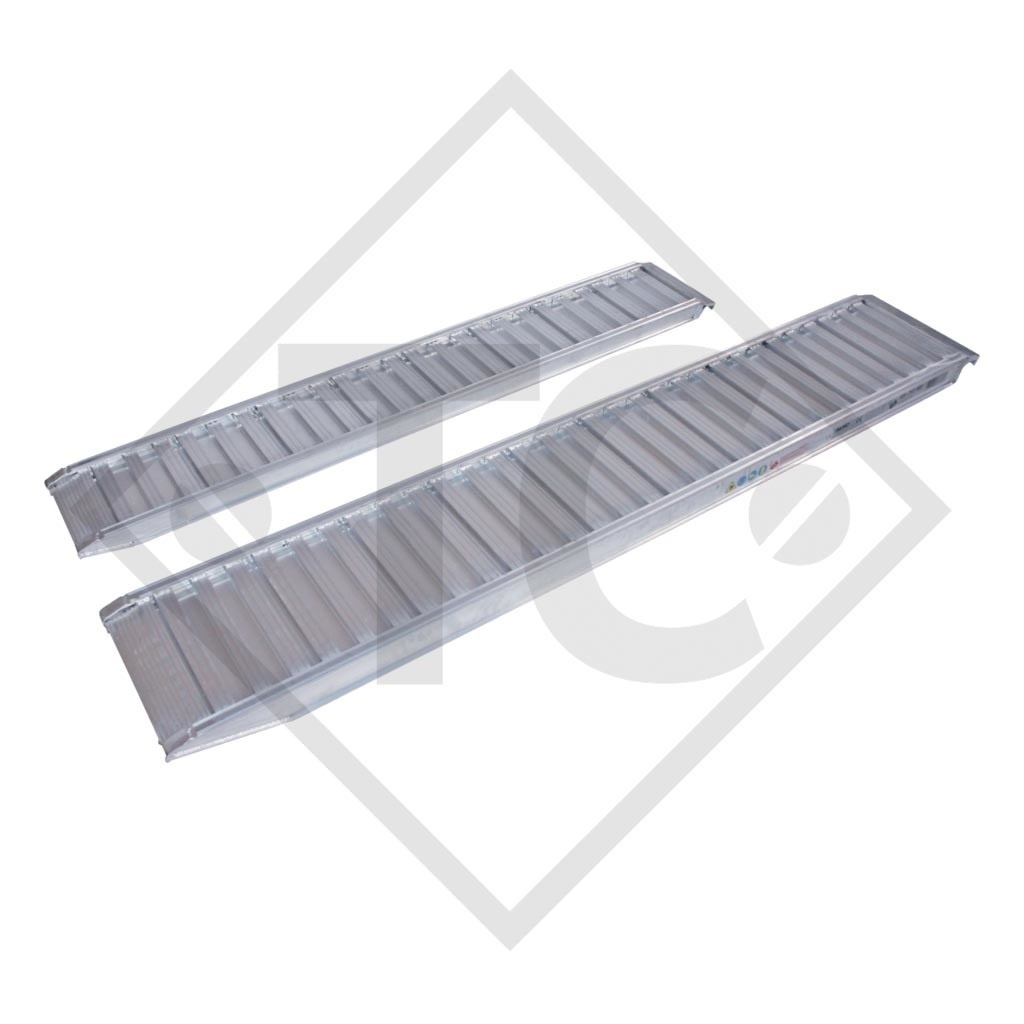

Ramp made from aluminium type 90A20 H552, version B, length L 2020, width B 400, height H 90, loading height max HL 552mm, load capacity 2030kg. Read more...

Wishlist: Add to comparison:
Price 550,00 EUR Incl. tax Excl. Shipping costs

Part no. per unit 1224720

Type / Version
90A20 H552 / B

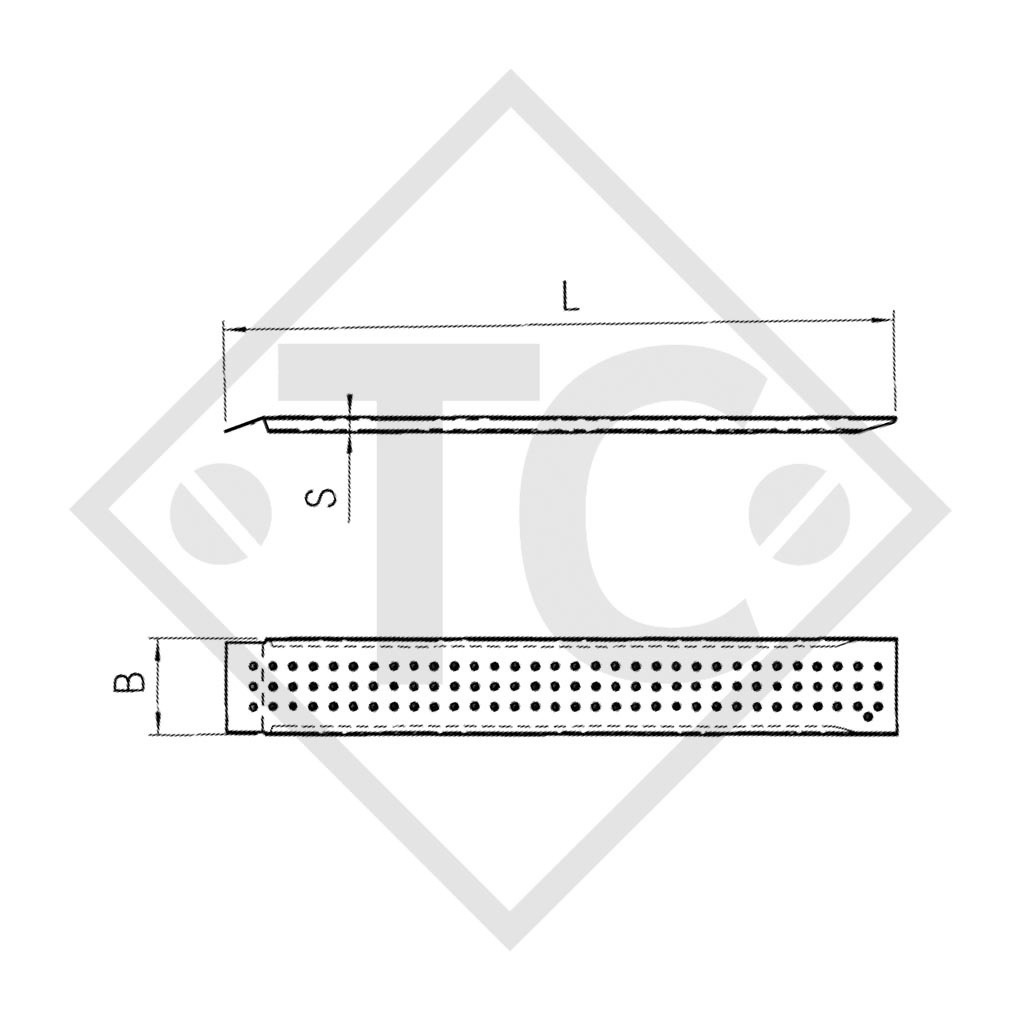

Lenght L 2020mm
Widht B 400mm
Height H
90mm
Max. loading height LH 552mm

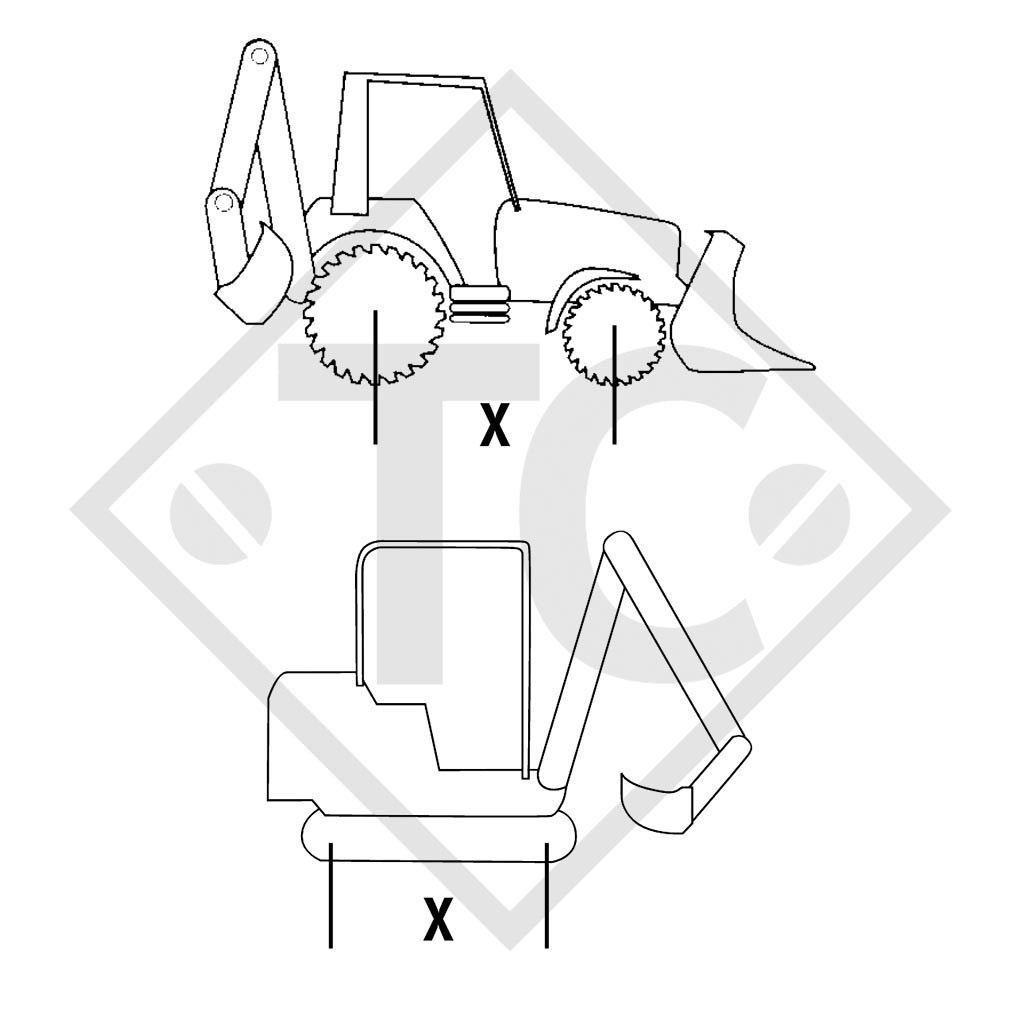

Load capacity with axle distance 1.00m unit
2030kg
Load capacity with axle distance 1.00m pair 4060kg
Load capacity with axle distance 1.50m unit 2030kg
Load capacity with axle distance 1.50m pair 4060kg
Load capacity with axle distance 2.00m unit 2030kg
Load capacity with axle distance 2.00m pair 4060kg
Weight per unit
13,7kg



RAMPS
made from aluminium for heavy loads

YOUR ADVANTAGE
All ramps are CE and GS tested and certified. Many applications require only one ramp, not a pair of ramps (e.g. transporting motor cycles). This is why AL-KO provides individual units, offering you an optimum cost/benefit ratio.
NOT all grades of aluminium are the same!This is why AL-KO uses a combination of the alloys 6005 + 6082: 6005 offers good welding properties and optimum corrosion protection, while the outstanding strength of AL-KO ramps is achieved by using 6082 aluminium: This alloy guarantees the highest strength of all the 6000 alloys, and is normally used in bridge construction because of its very high strength.
100%-quality control. Each ramp is individually checked. You should not be satisfied with anything less, because you are entitled to expect from AL-KO: QUALITY FOR LIFE!

SAFETY
The maximum permitted ramp gradient is 30% = 16.5°.
The ramps must be anchored on the loading surface.
Only use ramps in pairs for multi-track vehicles.
Using ramps horizontally is not permitted.
Only drive on under supervision from a second person.
The ramps are exclusively to be used for loading and unloading powered vehicles with brakes.

Here, you can find the catalogue page as a convenient PDF download.

... ...
