Ramp made from aluminium type 60A25 H665, version B, length L 2439, width B 300, height H 60, loading height max HL 665mm, load capacity 870-950kg. Read more...

Wishlist: Add to comparison:
Price 500,00 EUR Incl. tax Excl. Shipping costs

Part no. per unit 1224705

Type / Version
60A25 H665 / B
Lenght L 2439mm
Widht B 300mm
Height H
60mm
Max. loading height LH 665mm

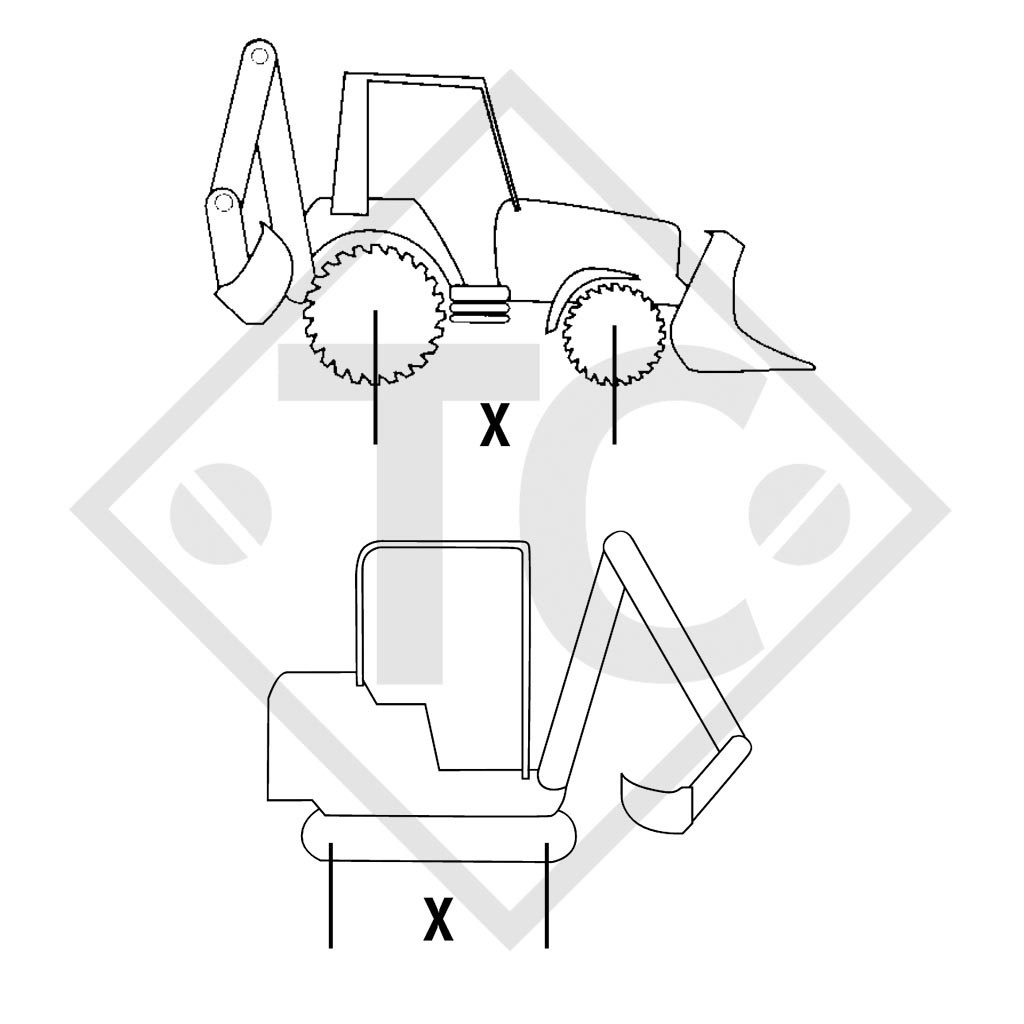

Load capacity with axle distance 1.00m unit
870kg
Load capacity with axle distance 1.00m pair 1740kg
Load capacity with axle distance 1.50m unit 950kg
Load capacity with axle distance 1.50m pair 1900kg
Load capacity with axle distance 2.00m unit 950kg
Load capacity with axle distance 2.00m pair 1900kg
Weight per unit
13kg



RAMPS
made from aluminium for heavy loads

YOUR ADVANTAGE
All ramps are CE and GS tested and certified. Many applications require only one ramp, not a pair of ramps (e.g. transporting motor cycles). This is why AL-KO provides individual units, offering you an optimum cost/benefit ratio.
NOT all grades of aluminium are the same!This is why AL-KO uses a combination of the alloys 6005 + 6082: 6005 offers good welding properties and optimum corrosion protection, while the outstanding strength of AL-KO ramps is achieved by using 6082 aluminium: This alloy guarantees the highest strength of all the 6000 alloys, and is normally used in bridge construction because of its very high strength.
100%-quality control. Each ramp is individually checked. You should not be satisfied with anything less, because you are entitled to expect from AL-KO: QUALITY FOR LIFE!

SAFETY
The maximum permitted ramp gradient is 30% = 16.5°.
The ramps must be anchored on the loading surface.
Only use ramps in pairs for multi-track vehicles.
Using ramps horizontally is not permitted.
Only drive on under supervision from a second person.
The ramps are exclusively to be used for loading and unloading powered vehicles with brakes.

Here, you can find the catalogue page as a convenient PDF download.

... ...
