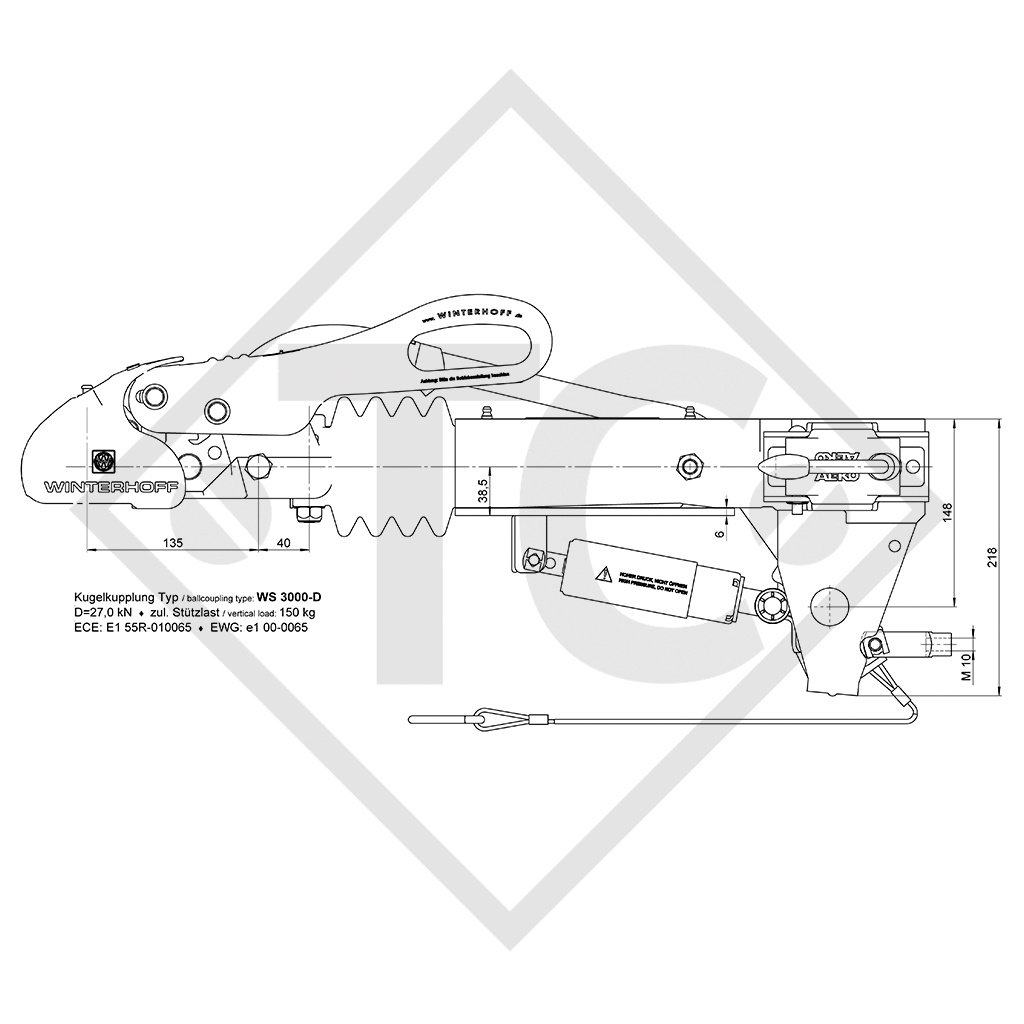

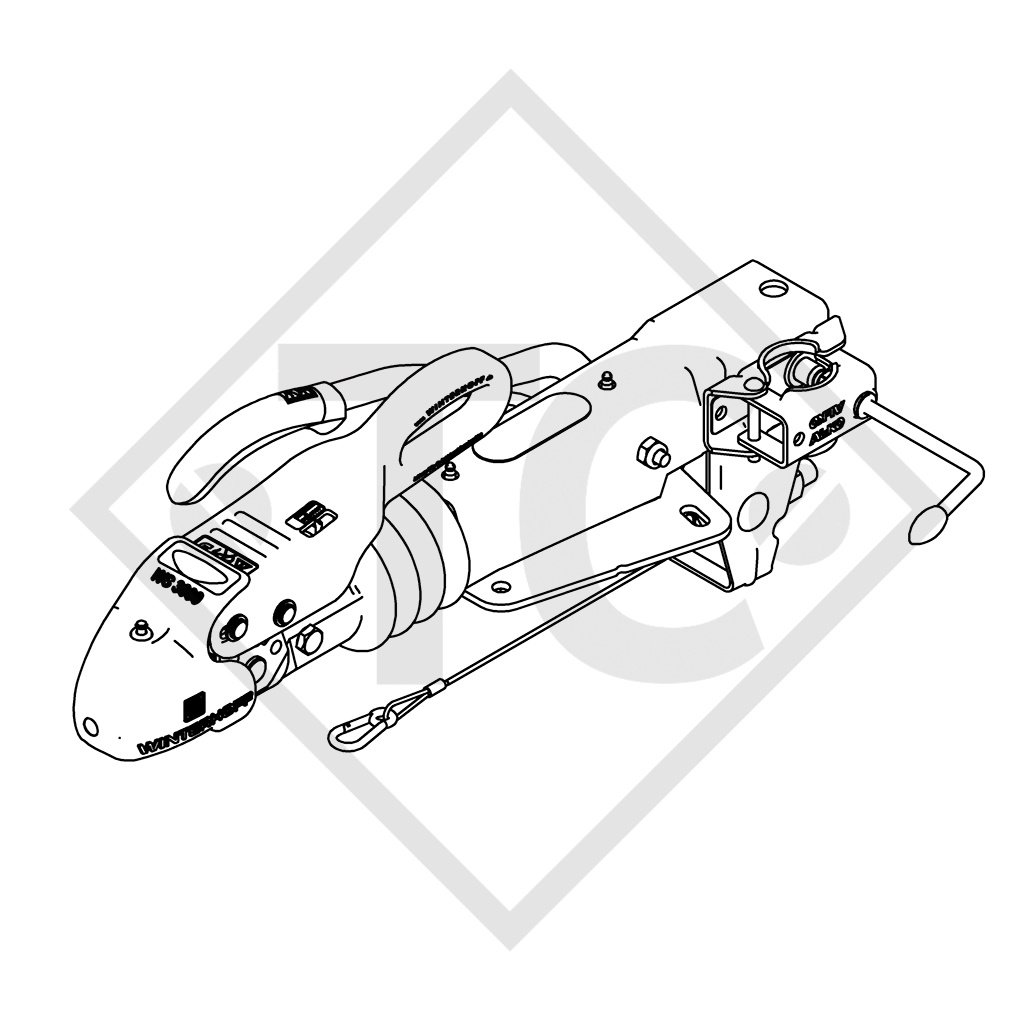

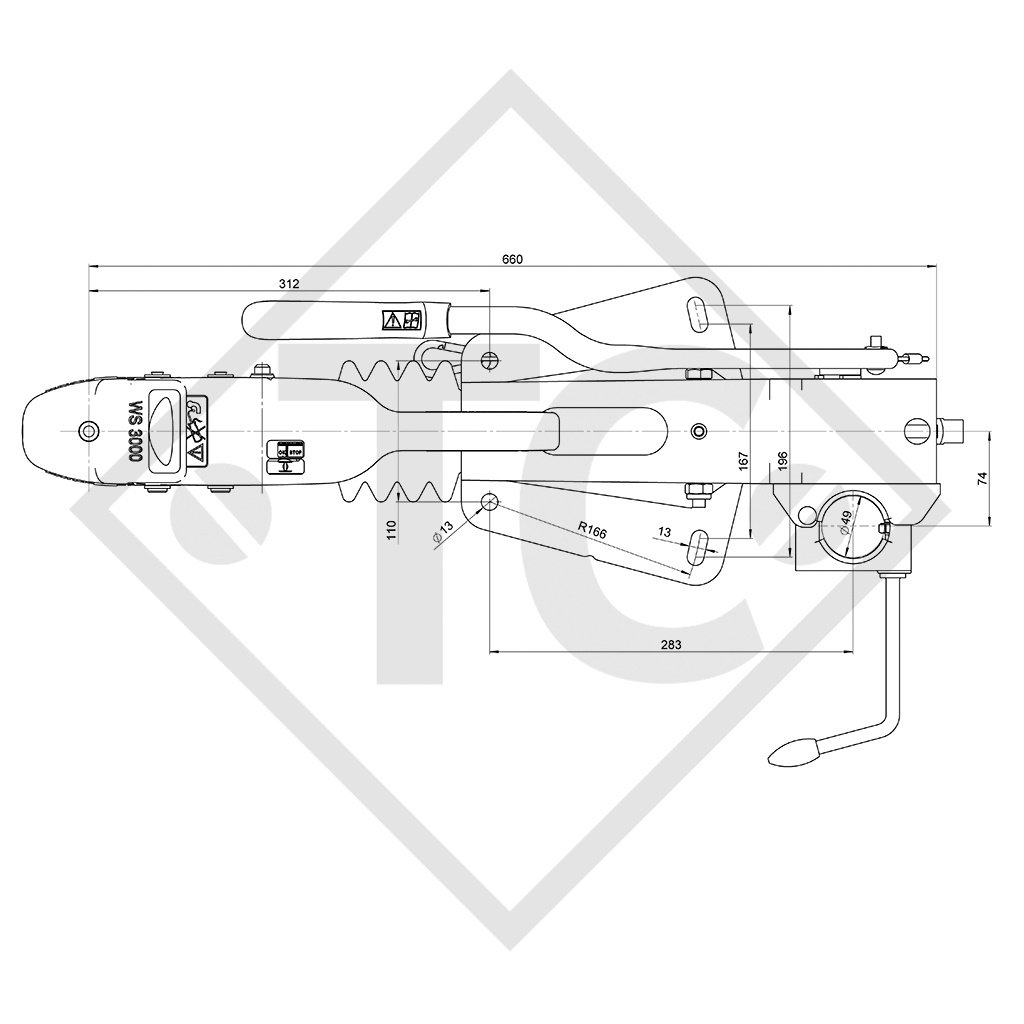

Home / Tags / alko assale b 1800-9 / Overrun device V type ZAF 2.0-3, 1250 to 2000kg, 48.36.581.029
connection 166mm, nose load 150kg, drawbar installation version top, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WS 3000-D. Read more...
| Permitted gross weight (kg) | 1250 - 2000 |
| Sales designation (type) | ZAF 2.0-3 |
| Order No. | 4020503 |
| Reference No. | 48.36.581.029 |
| A |
283mm |
| H | 33mm |
| L |
660mm |
| FH | 167-210mm |
| FH2 |
- |
| FV | 120mm |
| S |
13mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top |
| Combined wheel brakes (RASK) | S1704-7, S2005-7 and S2504-7 |
| ECE test code |
E1 55R-01 2078 |
| Replacement part identification number (ETI) NEW | 827003 |
| Replacement part identification number (ETI) OLD | 48.36.58X.XXX |
