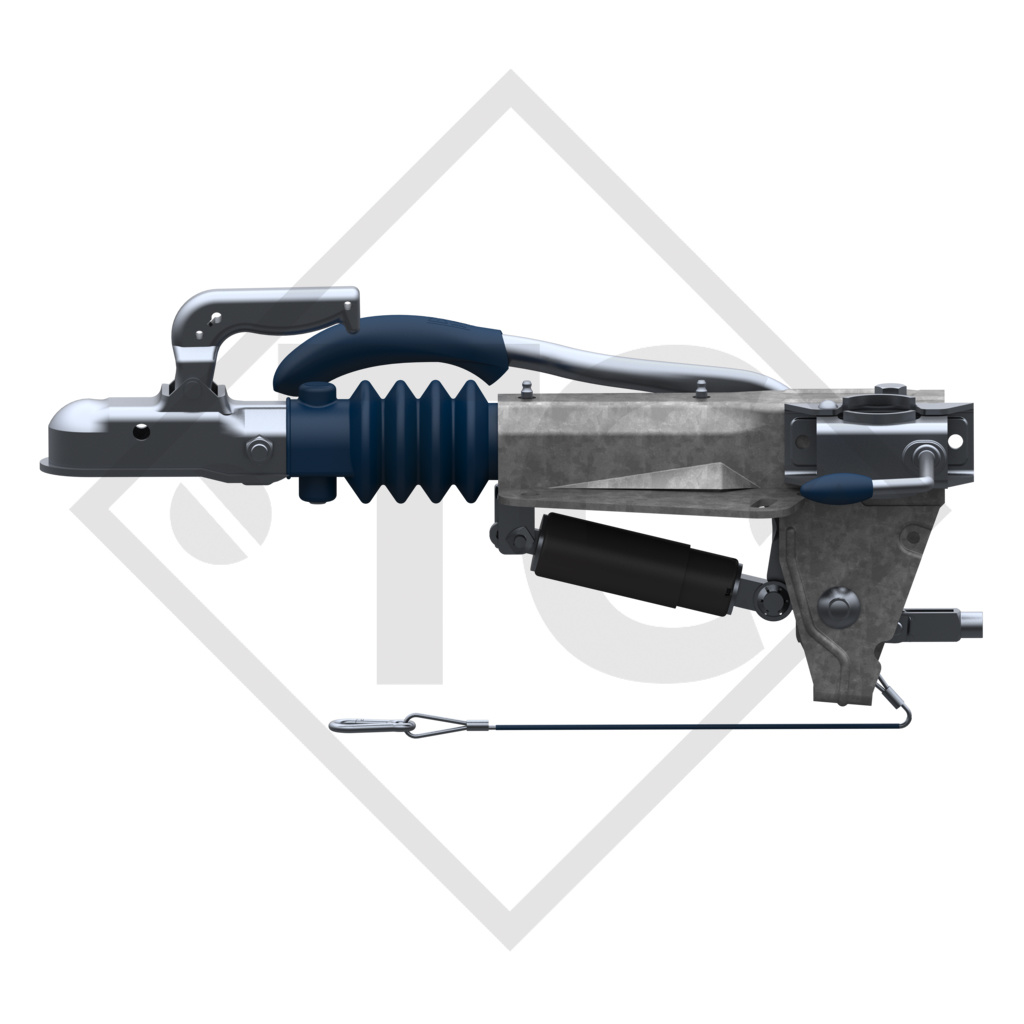

Home / Overrun device V type ZAF 1.0-3, 540 to 1000kg, 48.20.581.025
connection 166mm, nose load 75kg, drawbar installation version top, combined with BPW wheel brake S1704-7 and S2005-7 RASK, with coupling head WW 13-N. Read more...
| Permitted gross weight (kg) | 540-1000 |
| Sales designation (type) | ZAF 1.0-3 |
| Order No. | 4014216 |
| Reference No. | 48.20.581.025 |

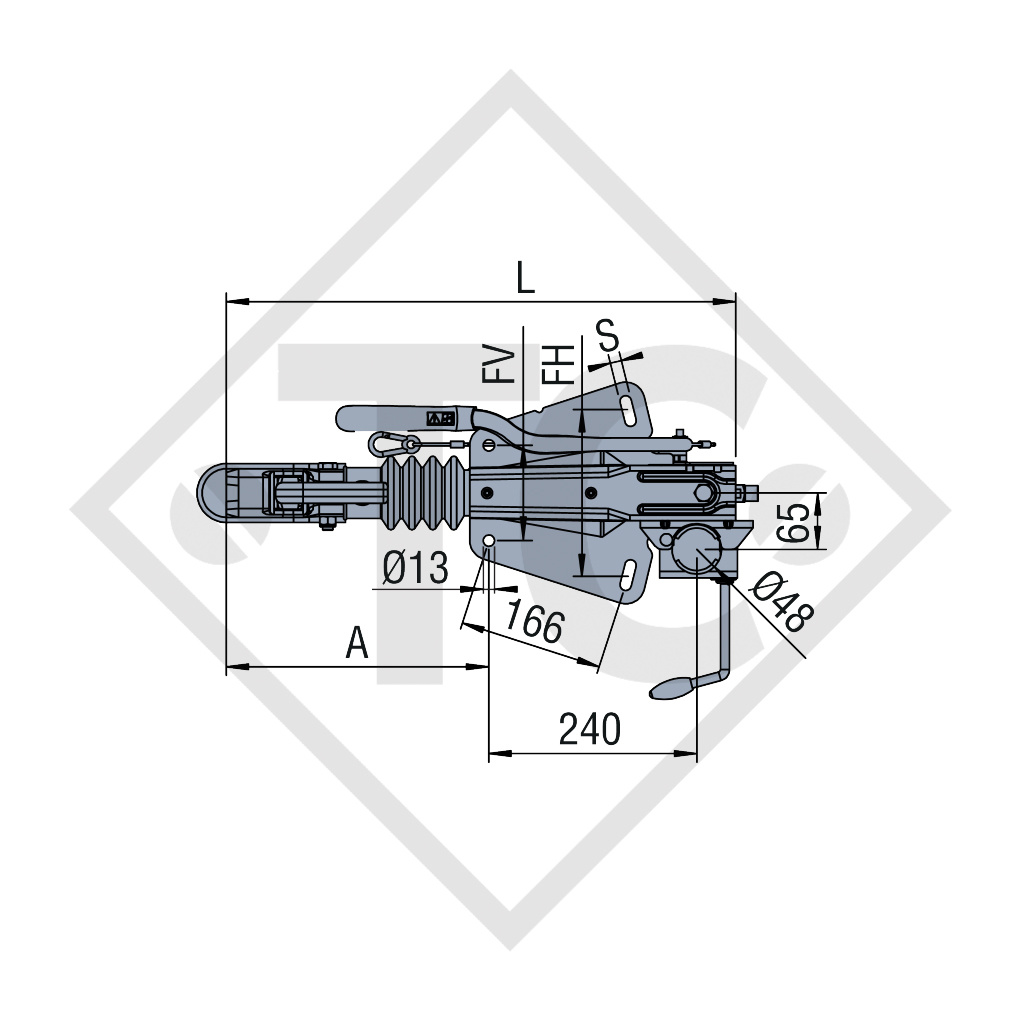

| A |
303mm |

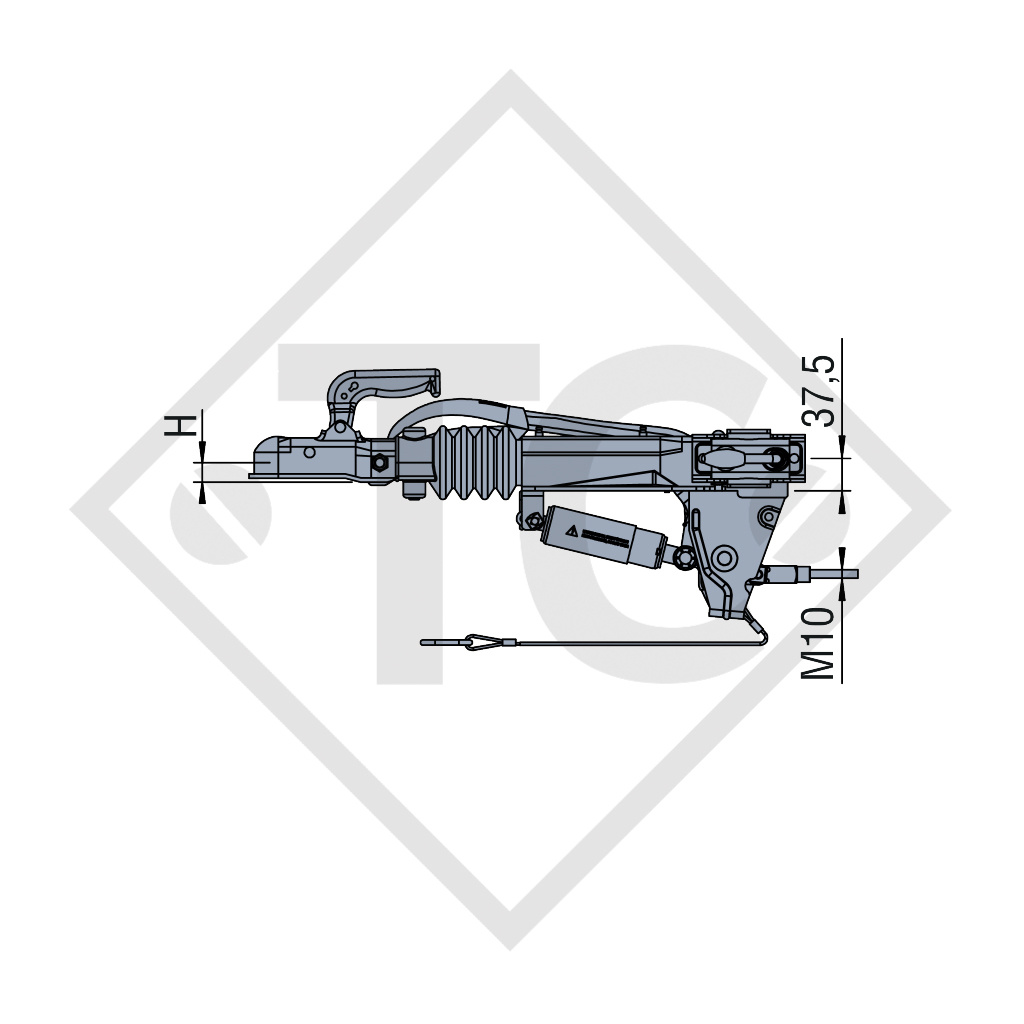

| H | 33mm |
| L |
608mm |
| FH | 167-212mm |
| FH2 |
- |
| FV | 110mm |
| S |
13mm |
| Perm. nose load (kg) |
75 |
| Drawbar installation version | top |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 |
| ECE test code |
E1 55R-012012 |
| Replacement part identification number (ETI) NEW | 827007 |
| Replacement part identification number (ETI) OLD | 48.20.58X.XXX |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
