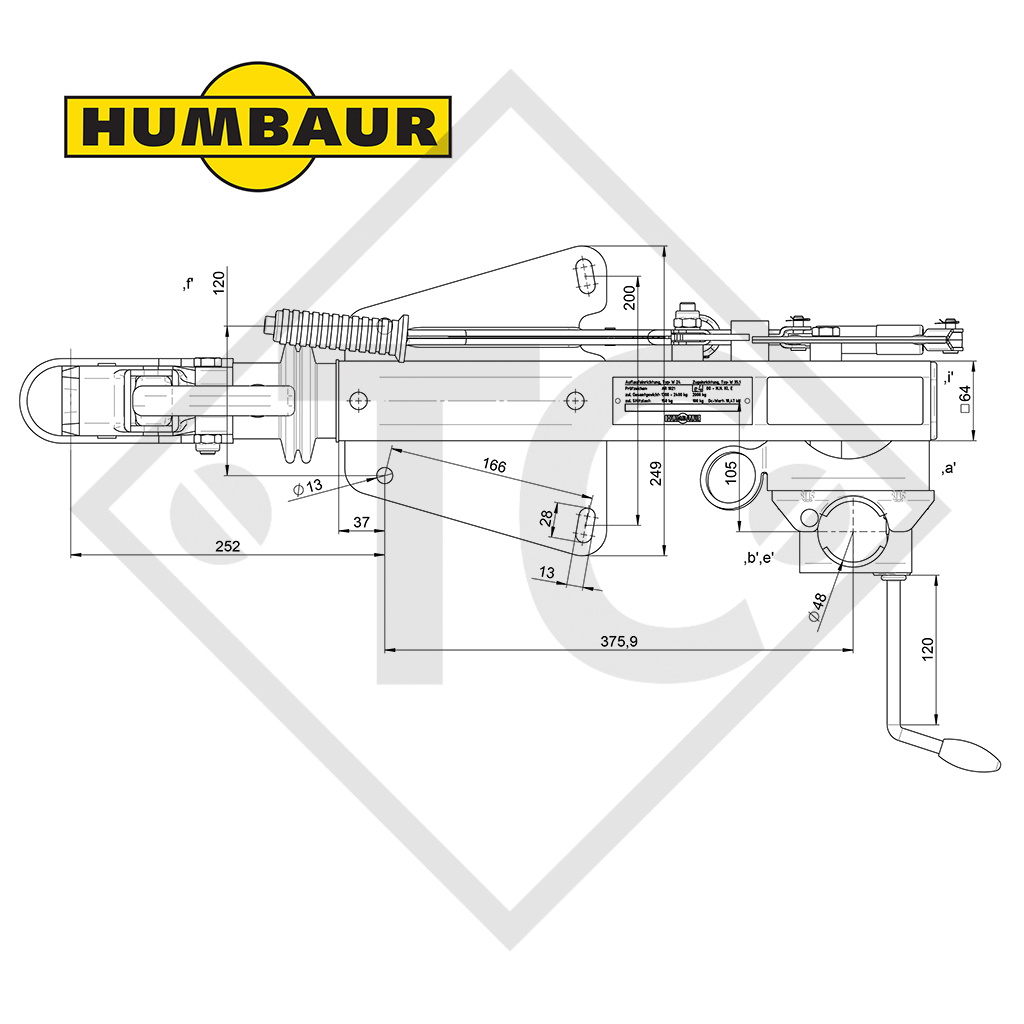

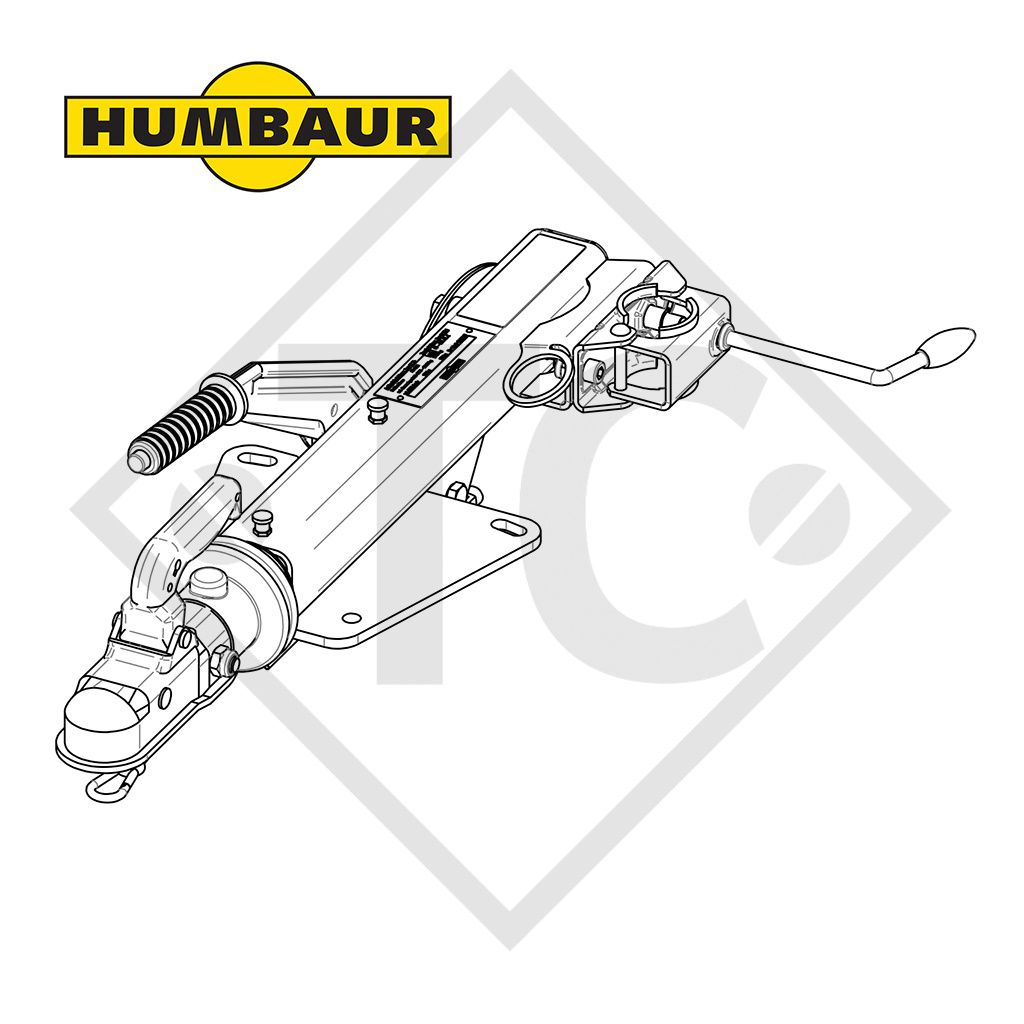

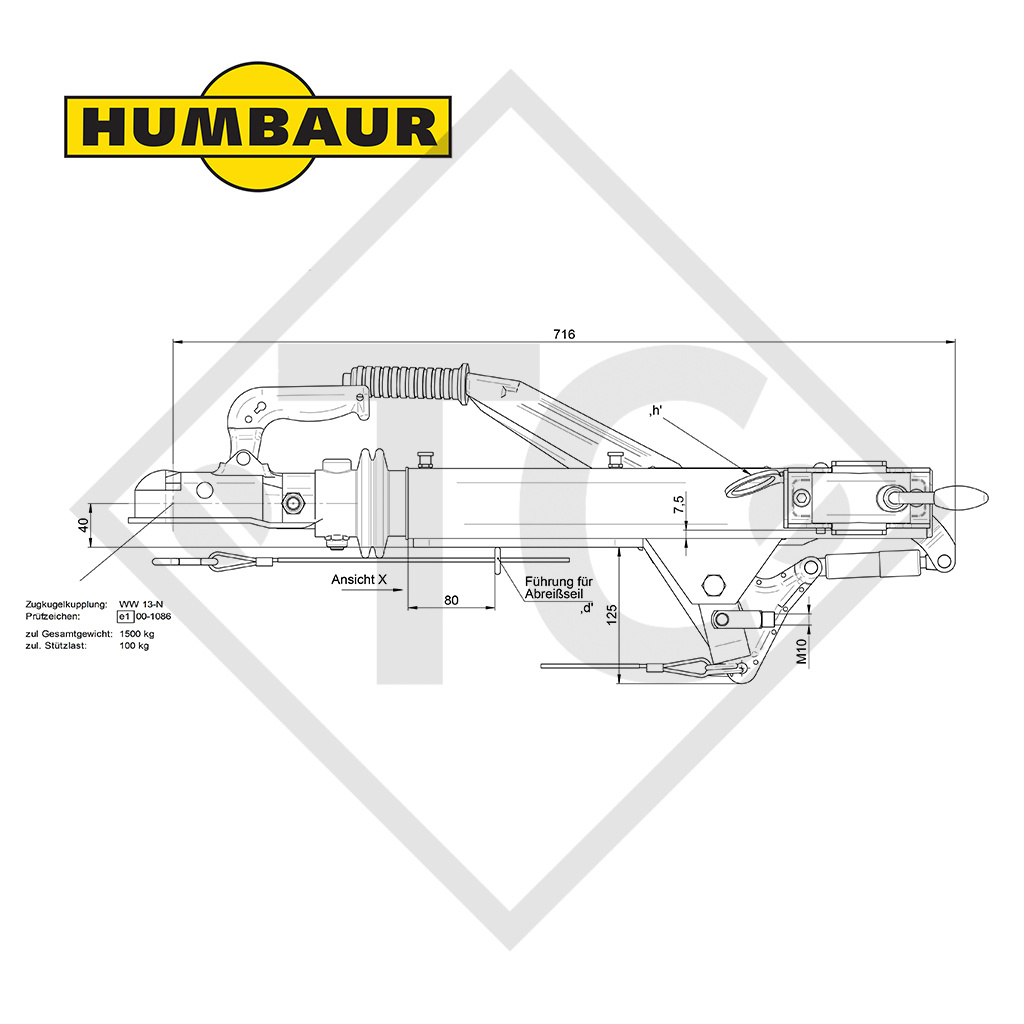

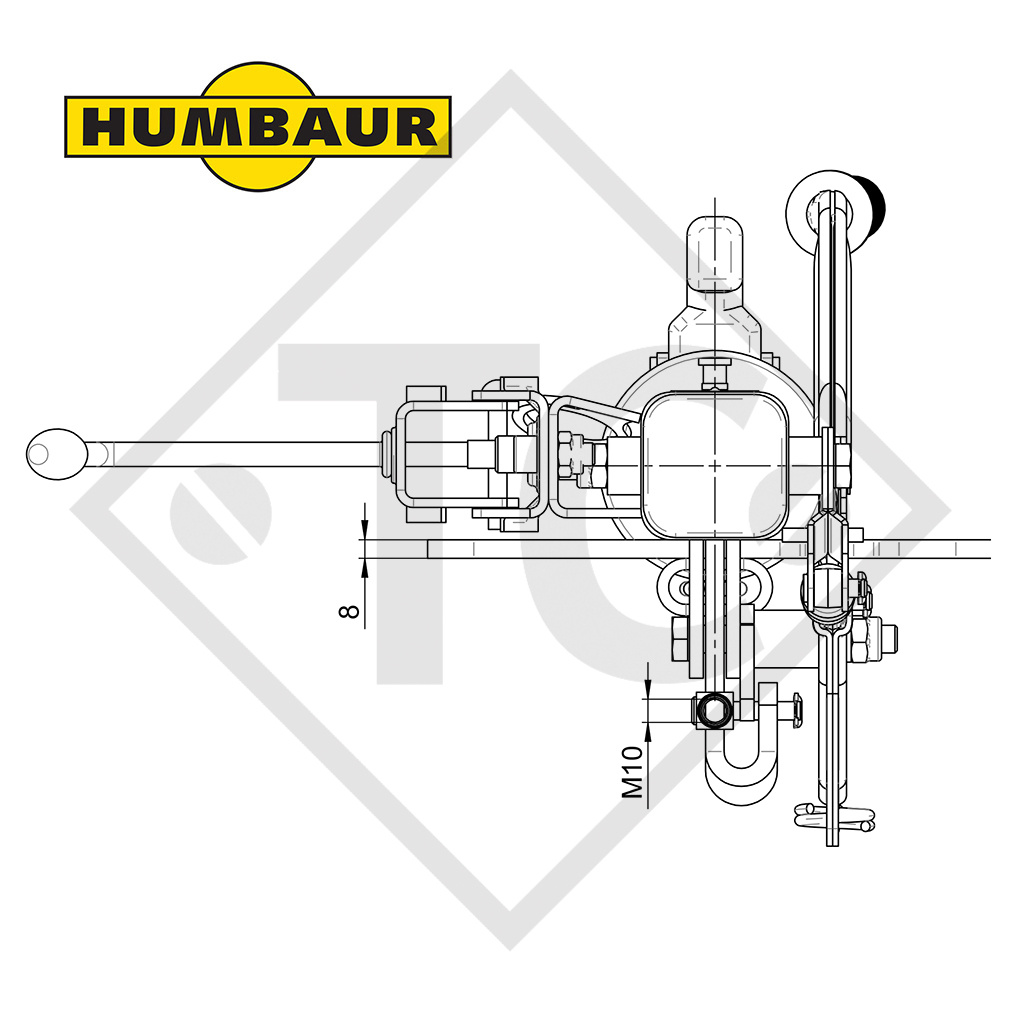

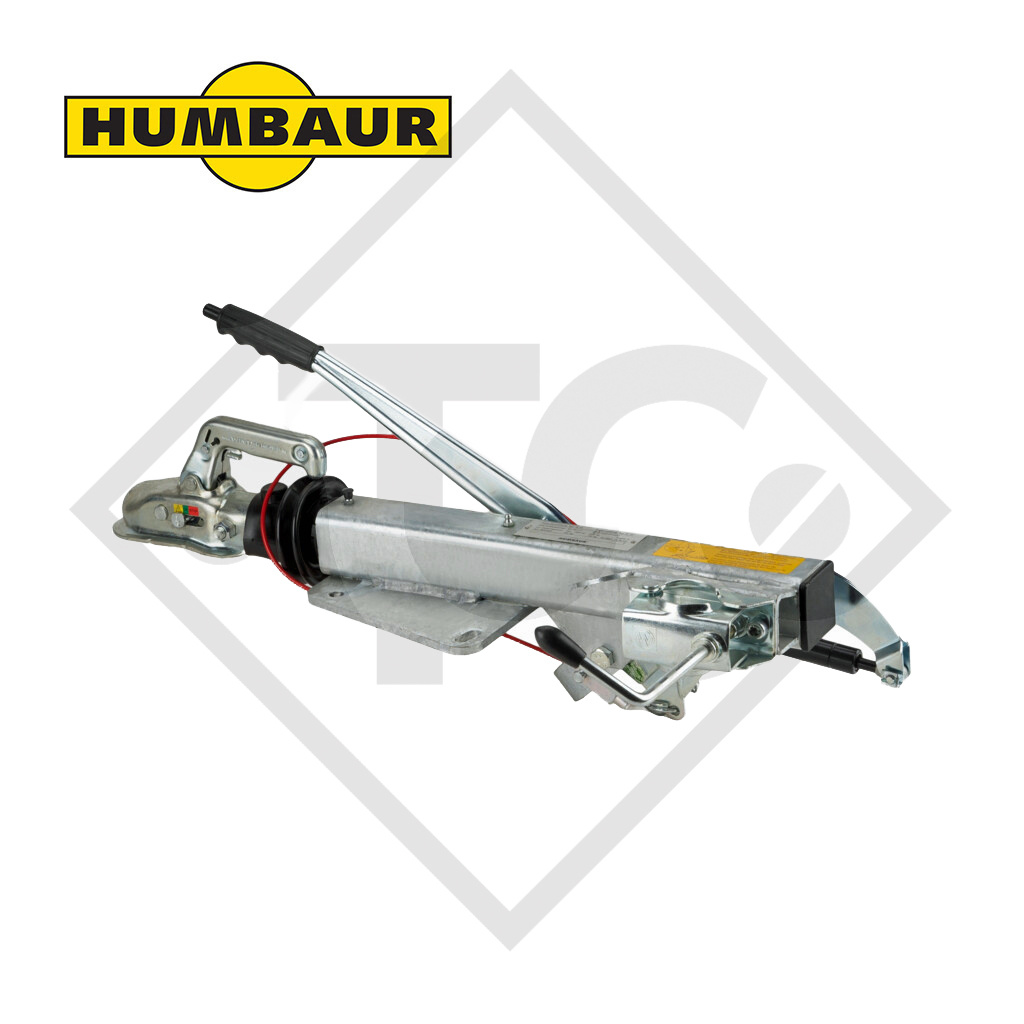

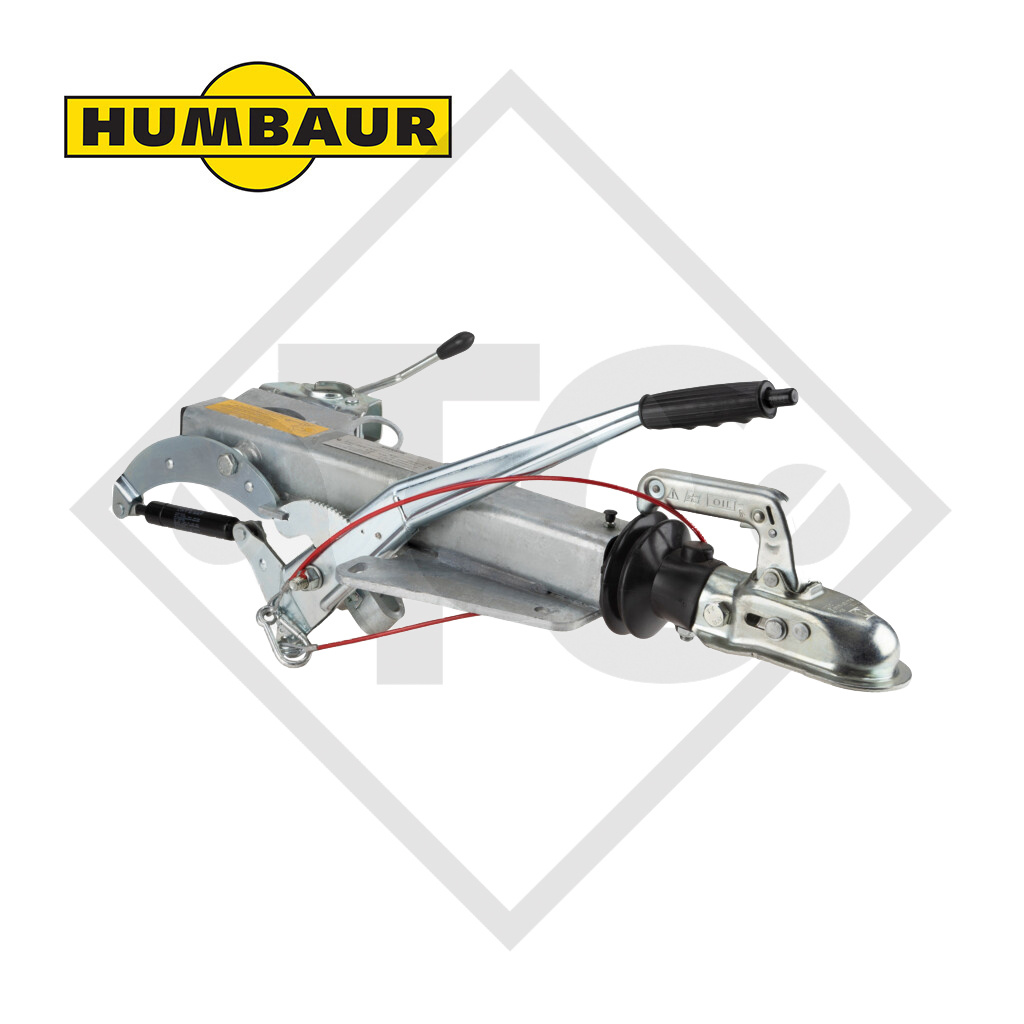

Home / CHASSIS PARTS / CHASSIS PARTS WAP / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 1500KG WSFA-BS, AXLE TYPE WSFA 150 BS / Overrun device V type WAP 15/15.1, 750 to 1500kg - Humbaur
connection 166mm, nose load 100kg, drawbar installation version top, combined with wheel brake W 205 RS, with coupling head WW 13-N. Read more...
| Permitted gross weight (kg) | 750 - 1500 |
| Sales designation (type) | WAP 15.1 |
| Order No. | 2503529-2 |
| Reference No. | - |
| A |
283mm |
| H | 40mm |
| L |
695mm |
| F1 | 130mm |
| F2 | 210mm |
| FV | - |
| S |
13mm |
| Perm. nose load (kg) |
100 |
| Drawbar installation version | top |
| Combined wheel brakes (RASK) | W 205 RS |
| ECE test code |
e4 00-3928 Kl. E |
