Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / PULL BAR WITH FIXING BOLTS / Overrun device V type AE3500, 2000 to 3500kg, with lowering handbrake lever

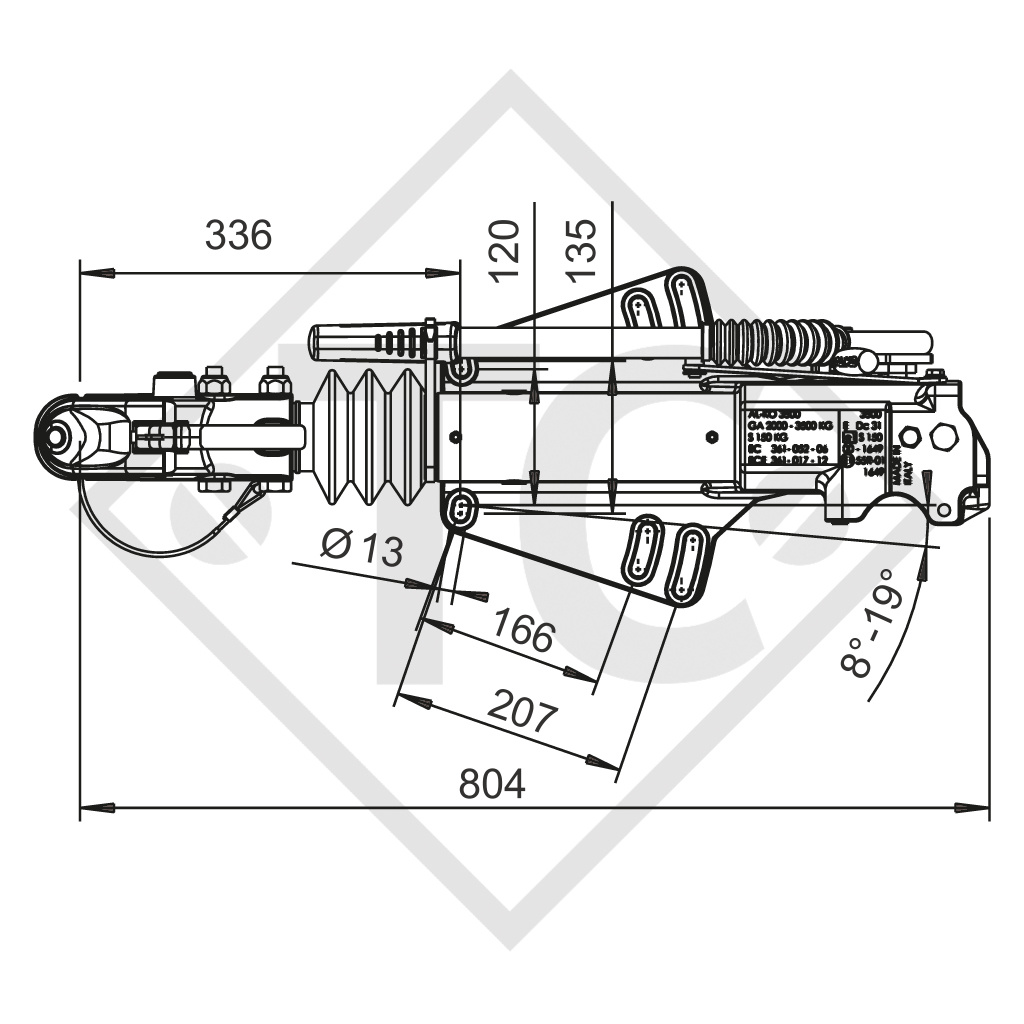

connection 166/207mm, nose load 350kg, drawbar installation version top + bottom, can be combined with AL-KO wheel brake 3062 / 3081, with coupling head AK 351. Read more...
Part no. 1224996
| Type | AE 3500 |
| Gross weight in kg |
2000 - 3500 |
| Nose load in kg |
150 |
| Drawbar installation version |
top and bottom |
| Change-over relay lever? |
No |
| Can be combined with AL-KO wheel brake |
3062 / 3081 |
| Hitch mounted |
AK 351 |
| ECE test report no. |
Overrun device: 361-016-12 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 1649 |
| Replacement part identification number (ETI) | 811593 |
Here, you can find the catalogue page as a convenient PDF download.
