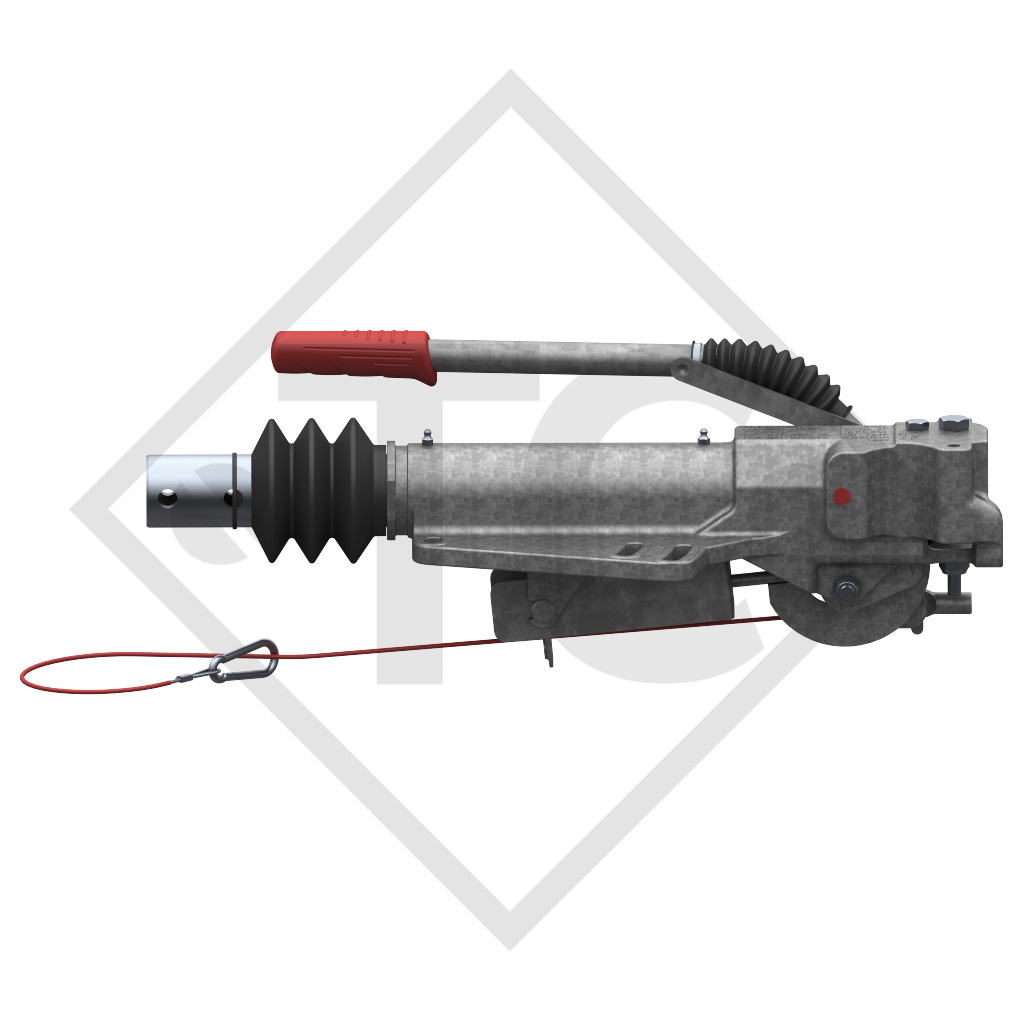

Part no. 1224141

Type AE 3500
Gross weight in kg
2000 - 3500
Nose load in kg
350
Installation
top and bottom
Change-over relay lever?
No
Can be combined with AL-KO wheel brake
3062 / 3081
Hitch mounted
without
ECE test report no.
Overrun device: 361-017-12
ECE type approval no.
Drawbar installation: E1 55R-01 1649
Replacement part identification number (ETI) 811523



Here, you can find the catalogue page as a convenient PDF download.
