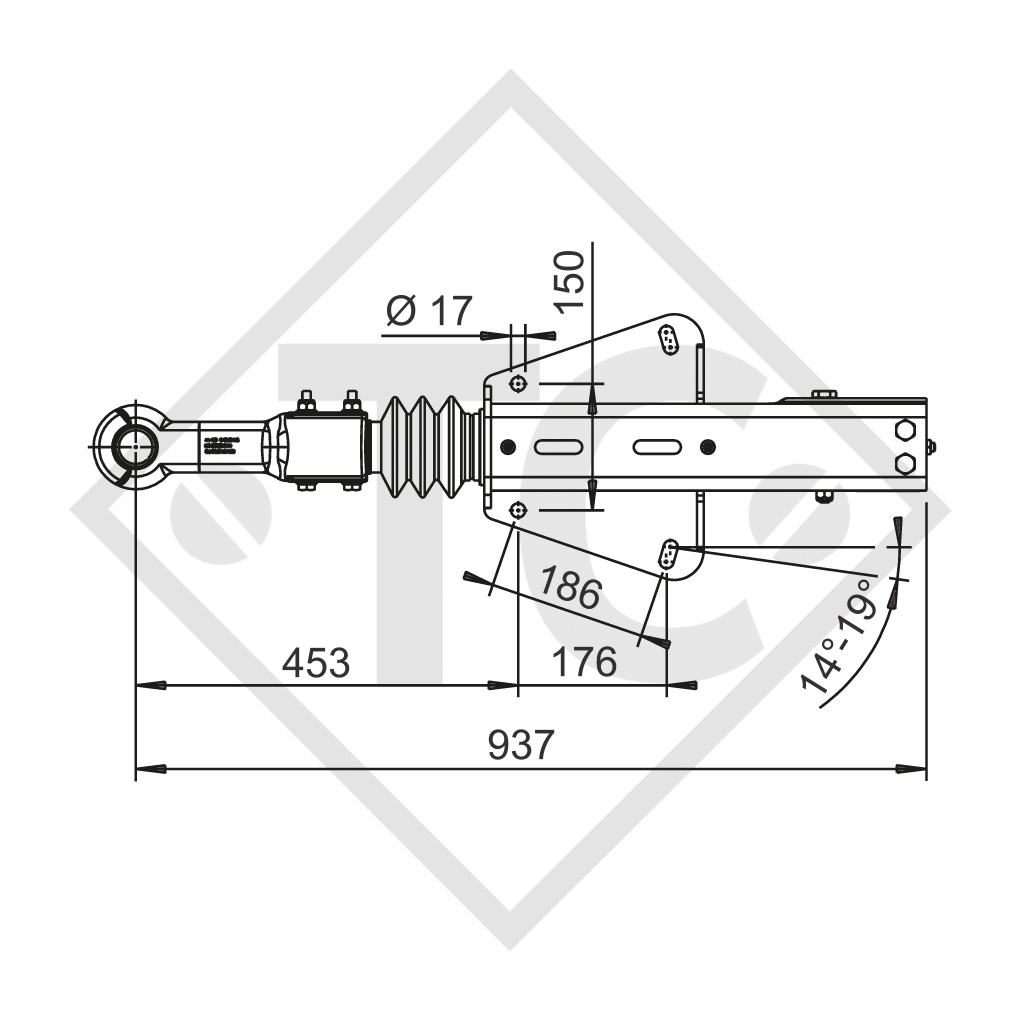

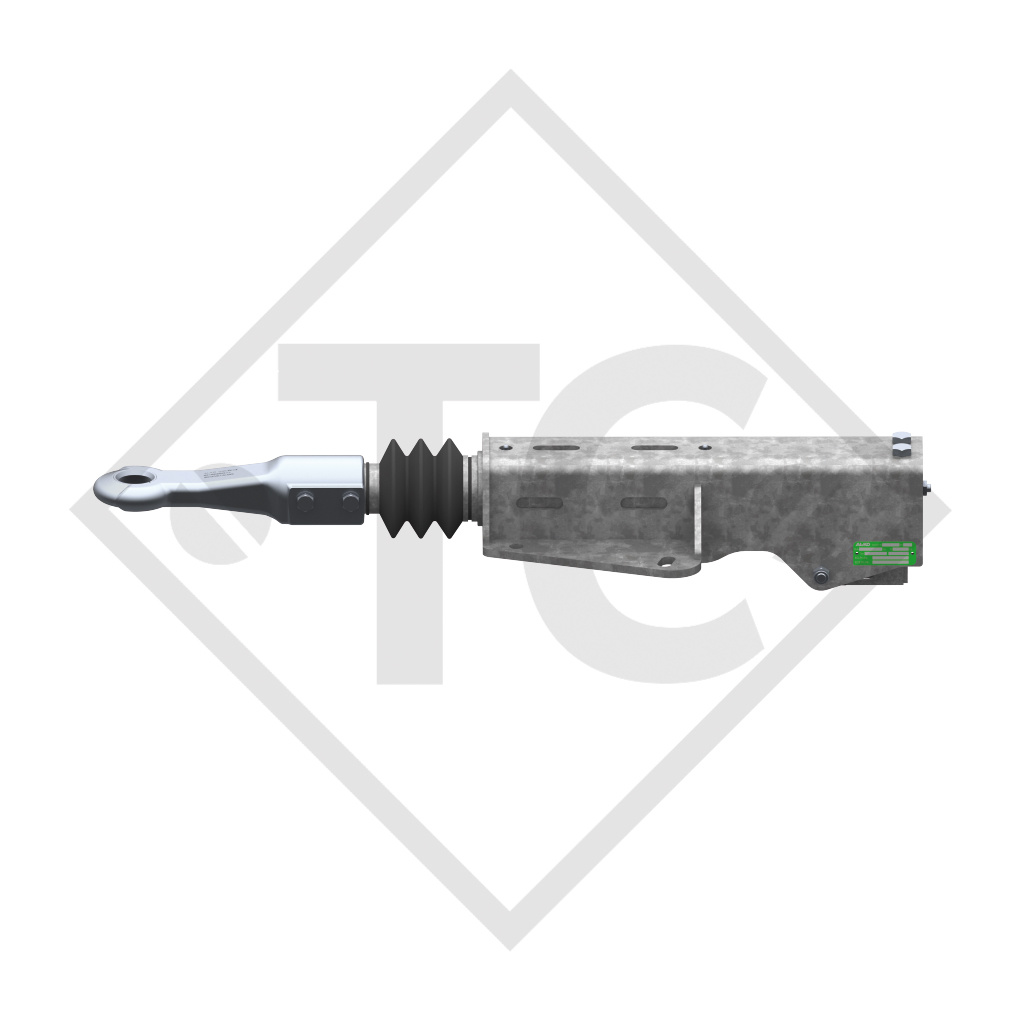

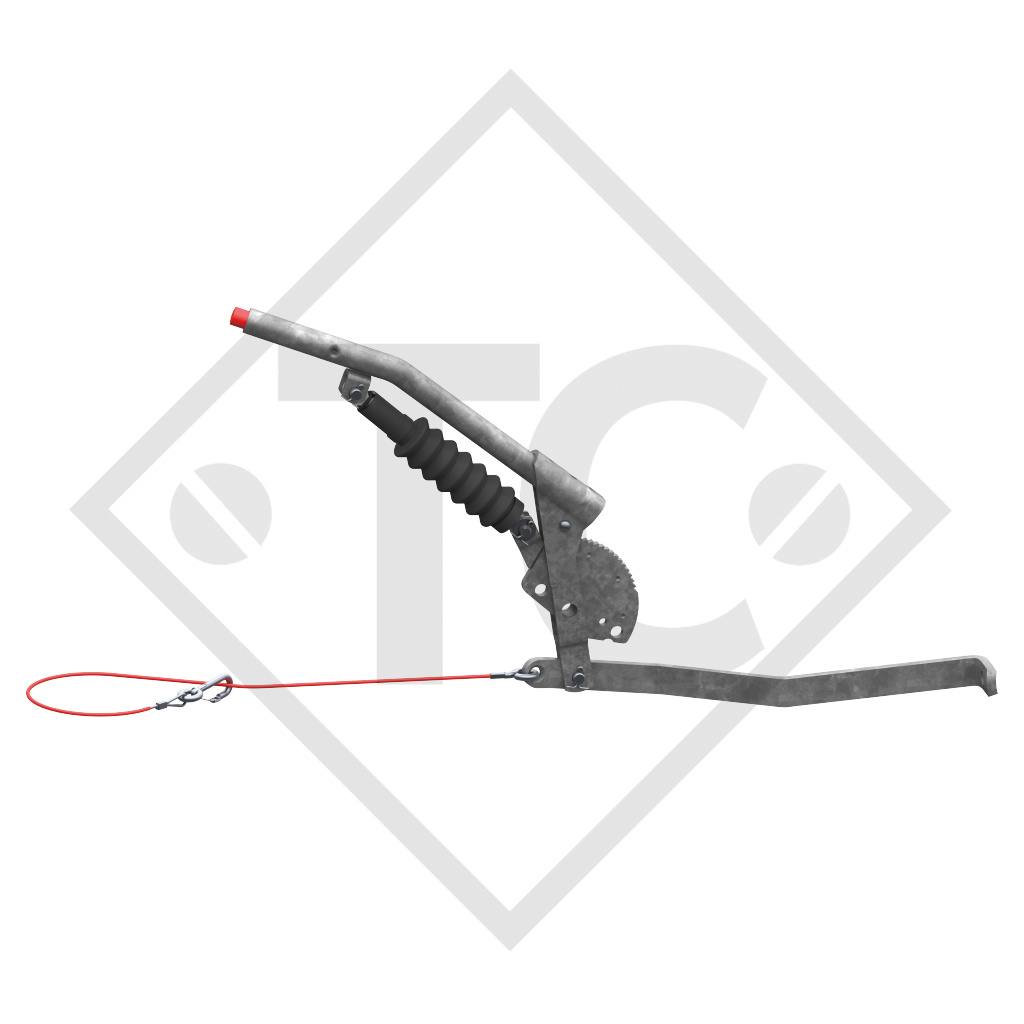

Home / CHASSIS PARTS / CHASSIS PARTS WAP / OVERRUN DEVICES / OVERRUN DEVICES V / OVERRUN DEVICES V FOR A DRUM BRAKE / OVERRUN DEVICES V TYPE WAP 24/35.1 - 1300 TO 2000KG / Overrun device V type 50 V, 4400 to 5000kg, handbrake lever loose
connection 186mm, nose load 300kg, drawbar installation version top, can be combined with AL-KO wheel brake 2361 / 3062 / 3081, with DIN drawbar eye. Read more...
Part no. 1730502
| Type | 50 V |
| Gross weight in kg |
4400 - 5000 |
| Nose load in kg |
300 |
| Drawbar installation version |
top |
| Change-over relay lever? |
no |
| Can be combined with AL-KO wheel brake |
2361 / 3062 / 3081 |
| Hitch mounted |
Drawbar eye DIN 40mm |
| ECE test report no. |
Overrun device: |
| ECE type approval no. |
Drawbar installation: |
| Replacement part identification number (ETI) | 811708 |
Here, you can find the catalogue page as a convenient PDF download.
