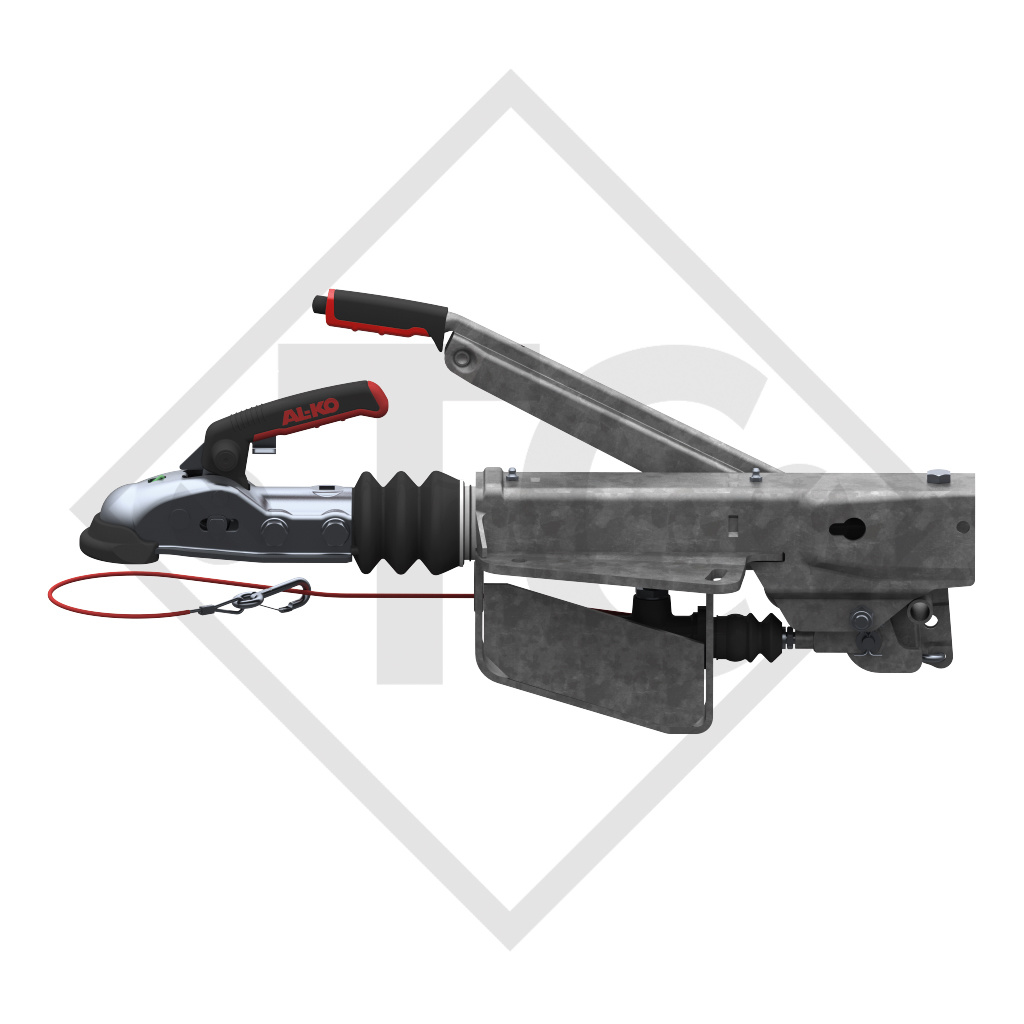

Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / OVERRUN DEVICES / OVERRUN DEVICE WITH DRAWBAR SECTION / OVERRUN DEVICE ROUND TUBE, WITH DRAWBAR SECTION STRAIGHT TYPE SF14 TO 1500KG / Overrun device V type 2.8VB/1, 2500 to 3500kg, with hydraulic brake transmission device
connection 186mm, nose load 150kg, installation top, can be combined with AL-KO wheel brake 2361, with coupling head AK 351. Read more...
Part no. 1211677
| Type | -V- 2.8 VB |
| Gross weight in kg |
2500 - 3500 |
| Nose load in kg |
150 |
| Installation |
top |
| Change-over relay lever? |
no |
| Can be combined with AL-KO wheel brake |
2361 |
| Hitch mounted |
AK 351 |
| ECE test report no. |
Overrun device: 361-0045-97 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 0384 |
| Replacement part identification number (ETI) | 811667 |
Here, you can find the catalogue page as a convenient PDF download.
