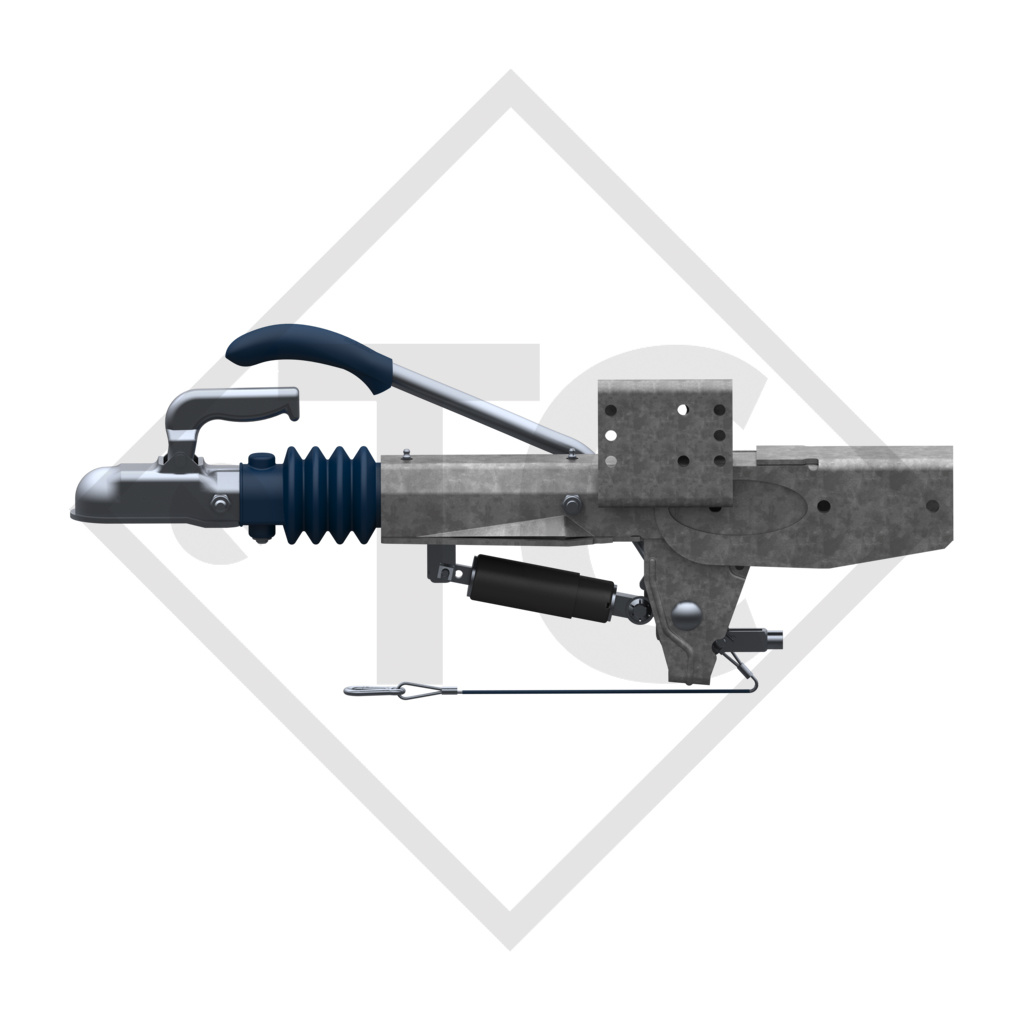

Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITHOUT DRAWBAR SECTION / Overrun device square type ZAAQ 2.0-3, 1250 to 2000kg, 48.36.981.000

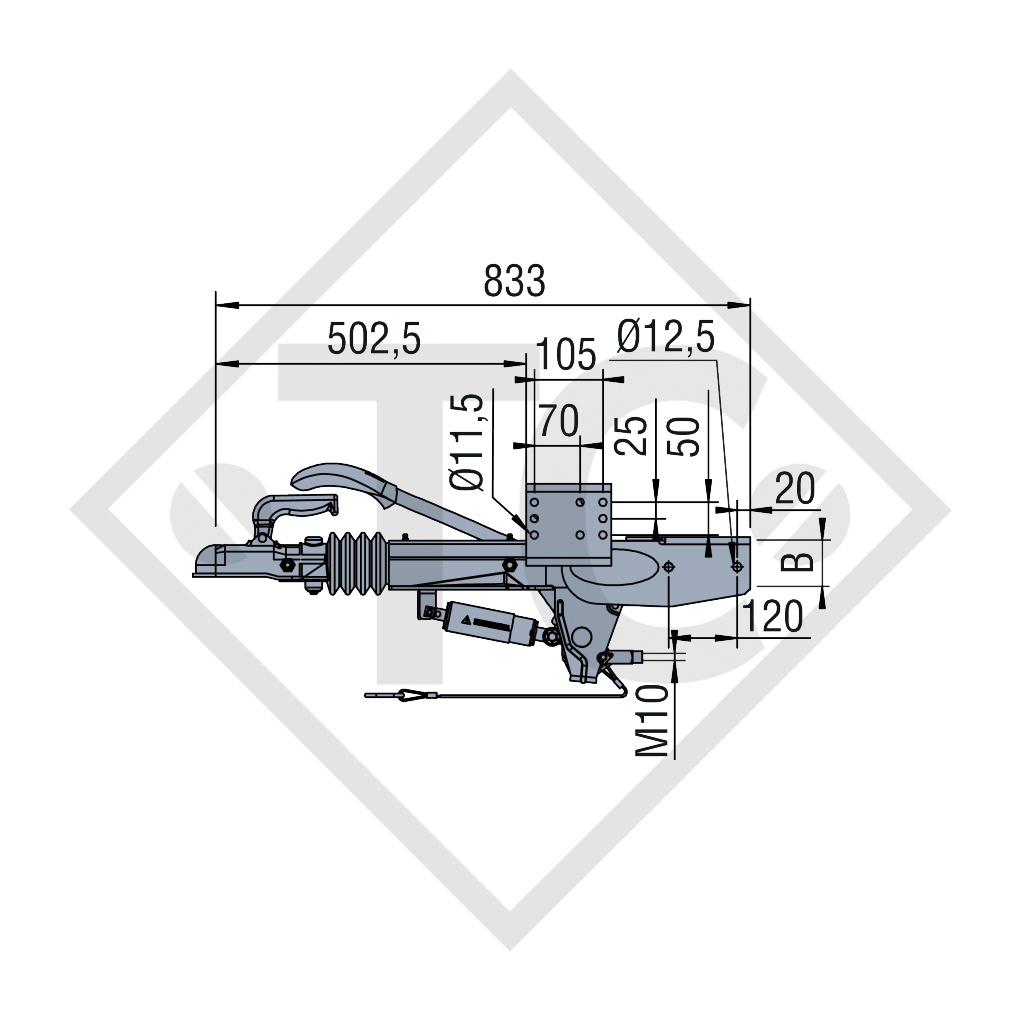

connection dimension B 80mm, nose load 100kg, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head EM 220 R-B. Read more...
| Permitted gross weight (kg) | 1250-2000 |
| Sales designation (type) | ZAAQ 2.0-3 |
| Order No. | 4014402 or 4019295 |
| Reference No. | 48.36.981.000 |
| Push-on fit on square tube dimension B |
80mm |
| Perm. nose load (kg) |
100 |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 |
| ECE test code | E1 55R-012234 |
| Replacement part identification number (ETI) NEW | 827006 |
| Replacement part identification number (ETI) OLD |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
