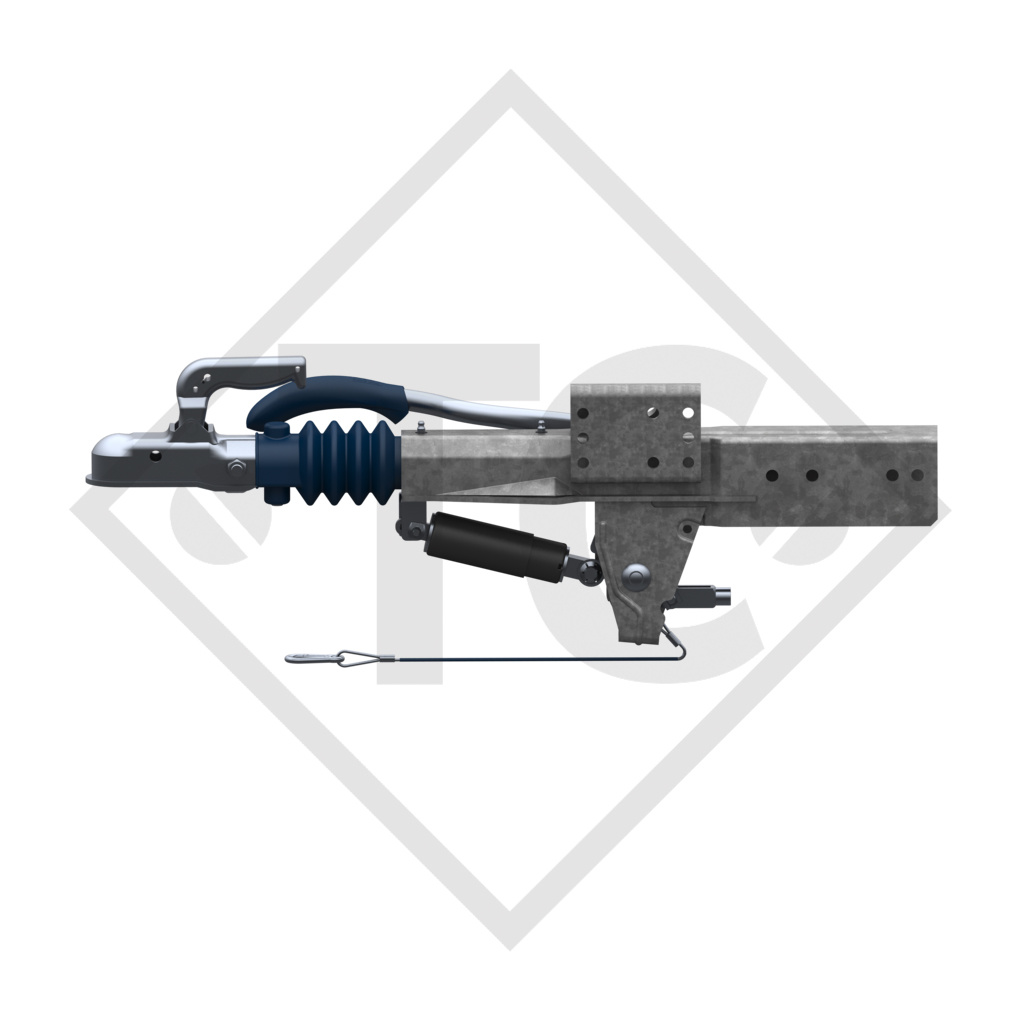

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / TOWBAR CONNECTION WITH FIXING BOLTS FOR ATTACHMENT TO THE AXLE / Overrun device square type ZAAQ 1.0-3, 540 to 1000kg, 48.20.981.002

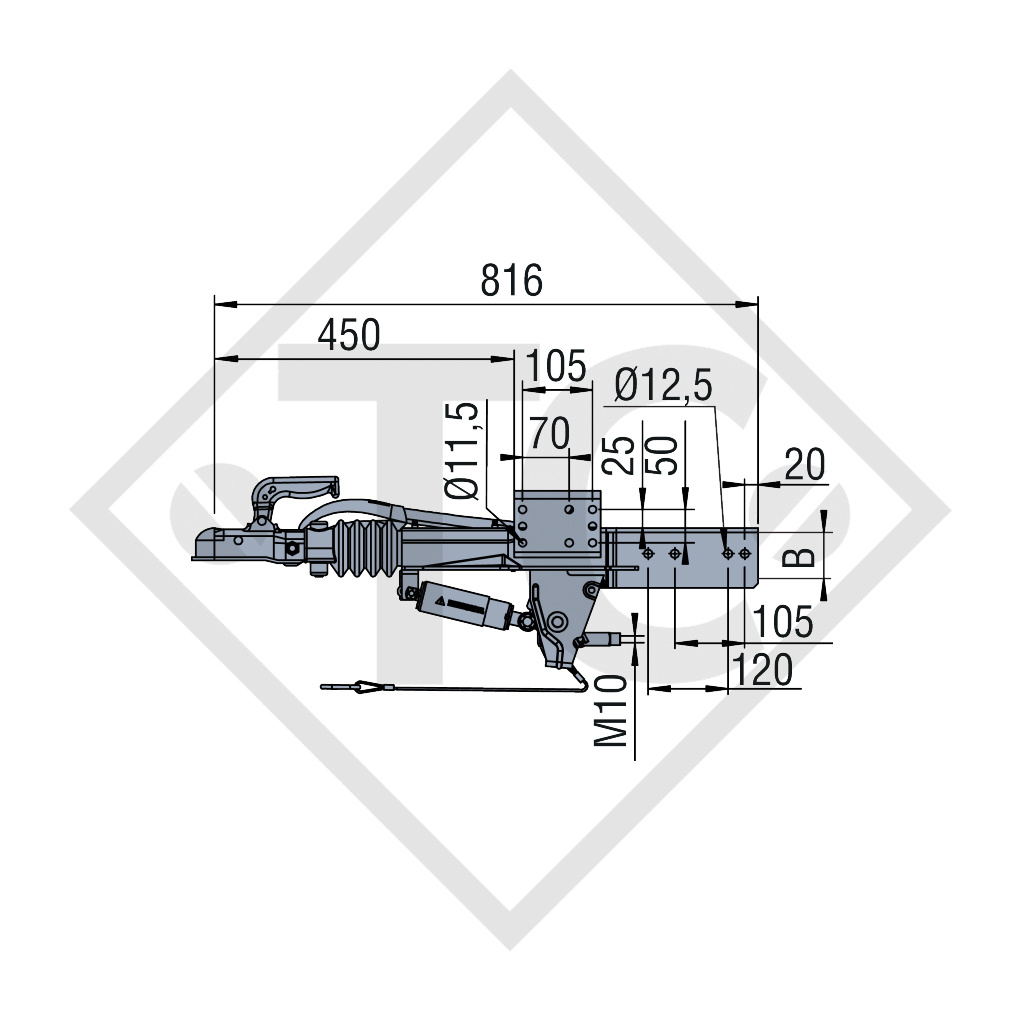

connection dimension B 70mm, nose load 100kg, combined with BPW wheel brake S1704-7 and S2005-7 RASK, with coupling head WW 13-N. Read more...
| Permitted gross weight (kg) | 540-1000 |
| Sales designation (type) | ZAAQ 1.0-3 |
| Order No. | 4014223 |
| Reference No. | 48.20.981.002 |
| Push-on fit on square tube dimension B |
70mm |
| Perm. nose load (kg) |
100 |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 |
| ECE test code | E1 55R-012007 |
| Replacement part identification number (ETI) NEW | 827008 |
| Replacement part identification number (ETI) OLD |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
