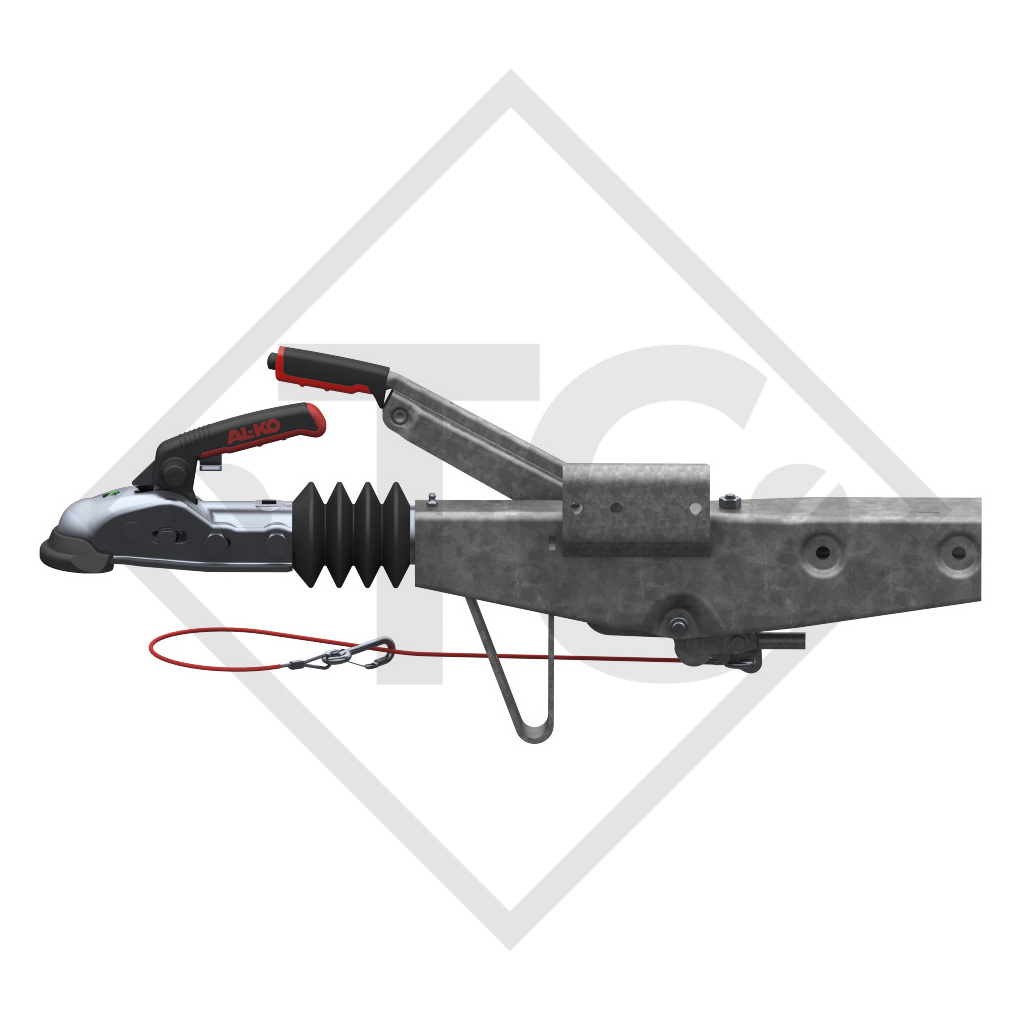

connection dimension B 60mm, nose load 75kg, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 161, Soft-Dock. Read more...
Part no. 1251902
| Type | 90S/3 |
| Gross weight in kg |
700 - 1000 |
| Nose load in kg |
75 |
| Dimension B mm |

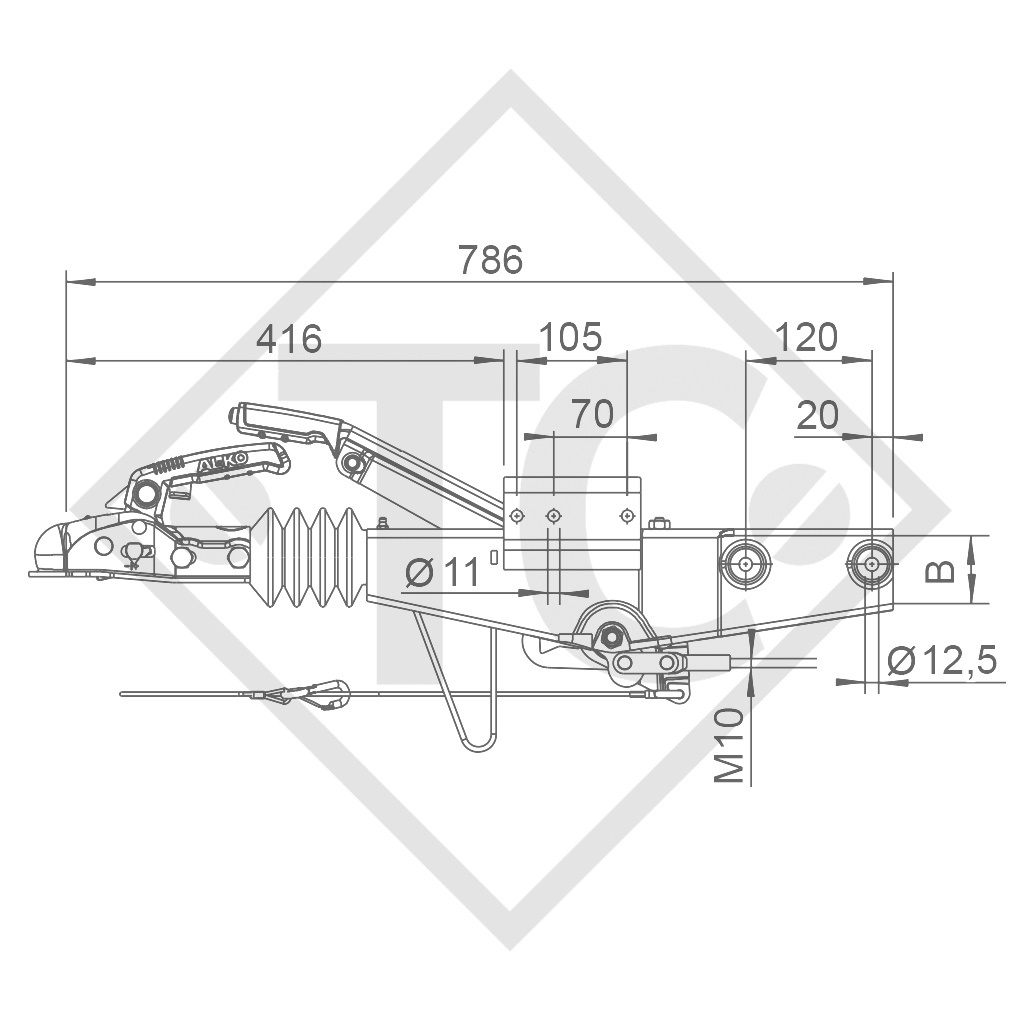

(check mounting dimension B, see technical drawing) 60 |
| Change-over relay lever? | No |
| Can be combined with AL-KO wheel brake | 1637 / 2051 |
| Hitch mounted |
AK 161 |
| ECE test report no. |
Overrun device: 361-033-92 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 0233 |
| Replacement part identification number (ETI) | 811172 |
Here, you can find the catalogue page as a convenient PDF download.
