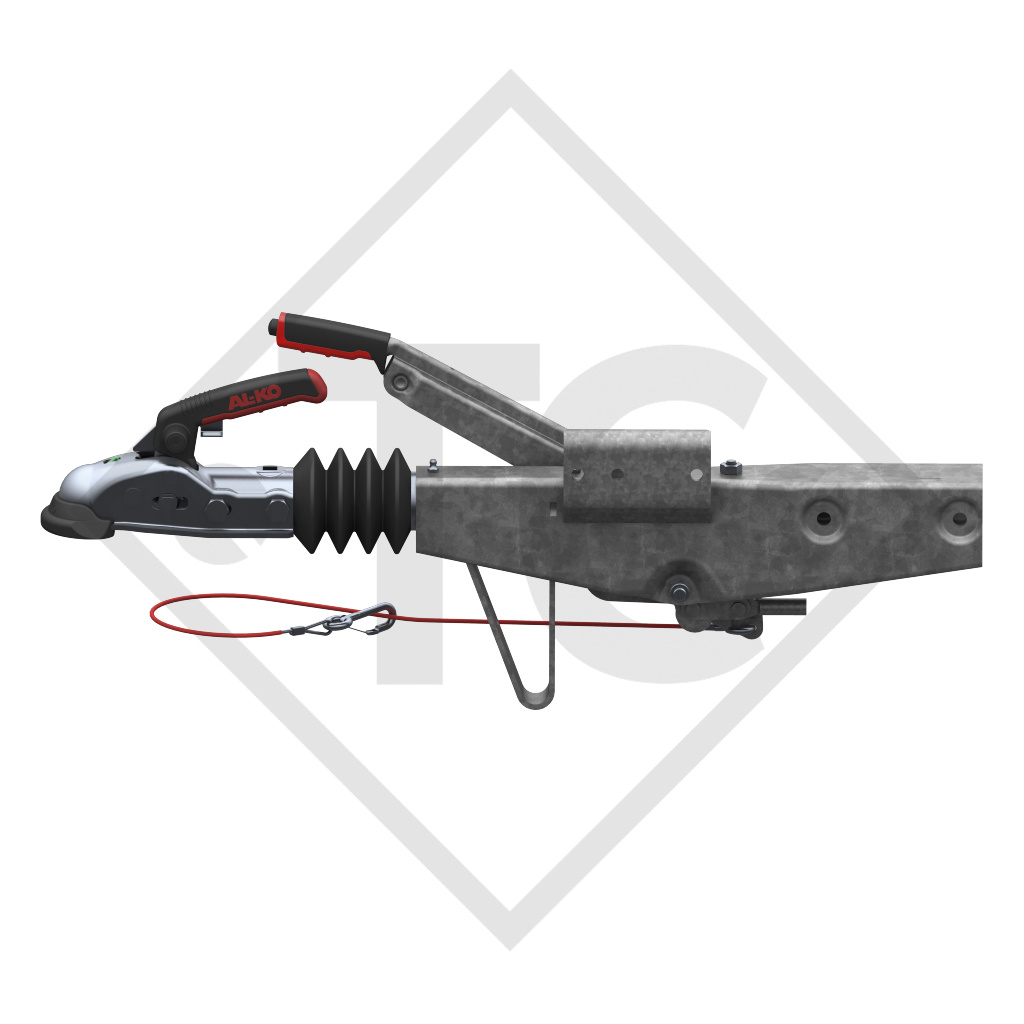

connection dimension B 70mm, nose load 75kg, can be combined with AL-KO wheel brake 1636G / 1637, with coupling head AK 161, Soft-Dock. Read more...
Part no. 1251901
| Type | 60S/2 |
| Gross weight in kg |
450 - 750 |
| Nose load in kg |
75 |
| Dimension B mm |

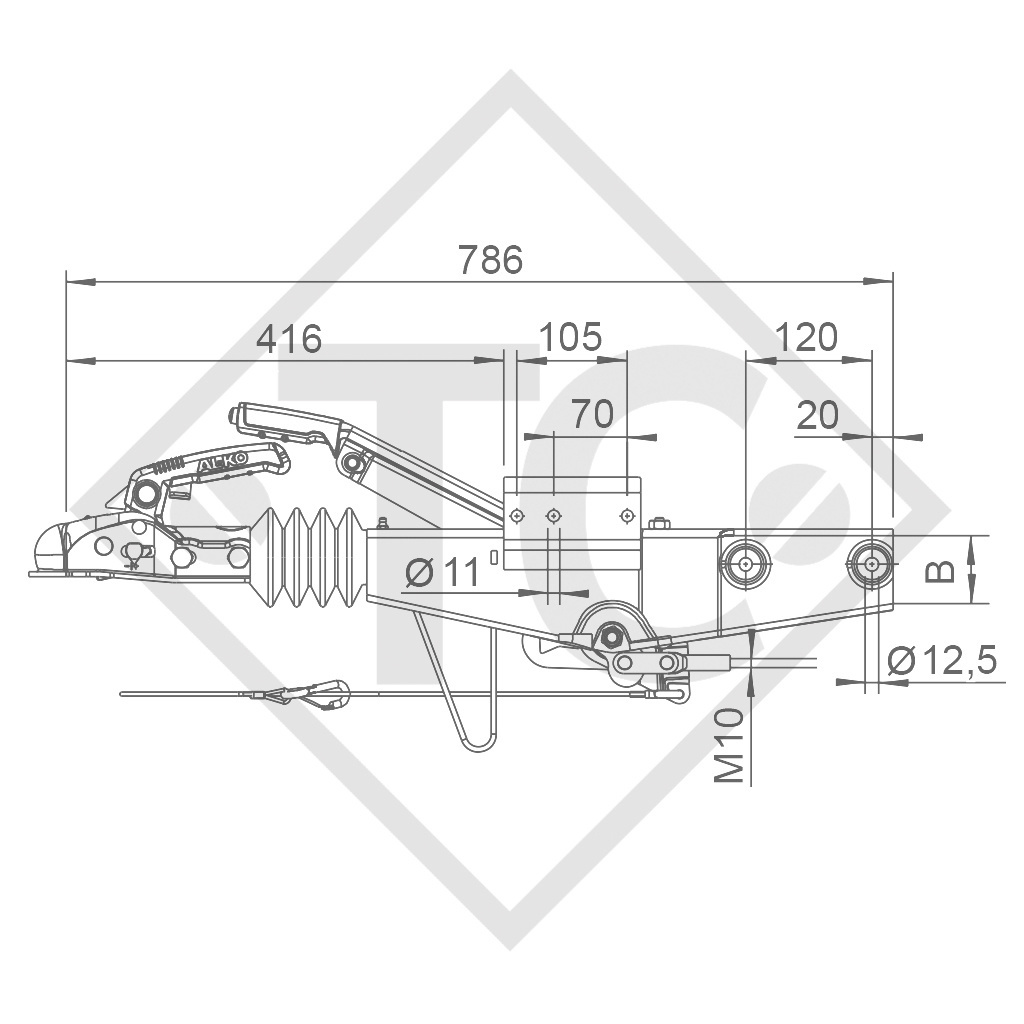

(check mounting dimension B, see technical drawing) 70 |
| Change-over relay lever? |
No |
| Can be combined with AL-KO wheel brake |
1636G / 1637 |
| Hitch mounted |
AK 161 |
| ECE test report no. |
Overrun device: 361-0126-97 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 0234 |
| Replacement part identification number (ETI) | 811171 |
Here, you can find the catalogue page as a convenient PDF download.
