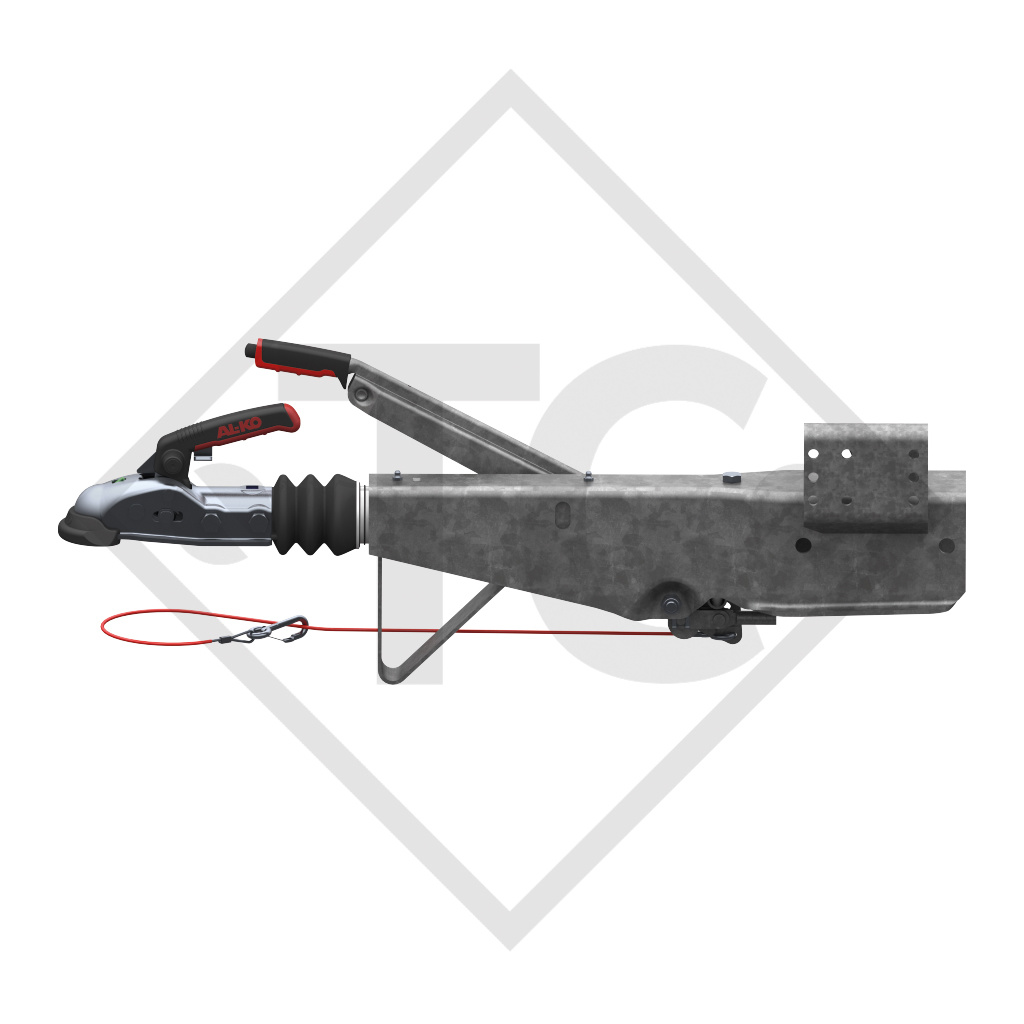

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE 101 VB COMPACT / Overrun device square type 251S, 1500 to 2600kg
connection dimension B 100mm, nose load 100kg, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 270, Soft-Dock. Read more...
Part no. 1251908
| Type | 251S |
| Gross weight in kg |
1500 - 2600 |
| Nose load in kg |
100 |
| Dimension B mm |

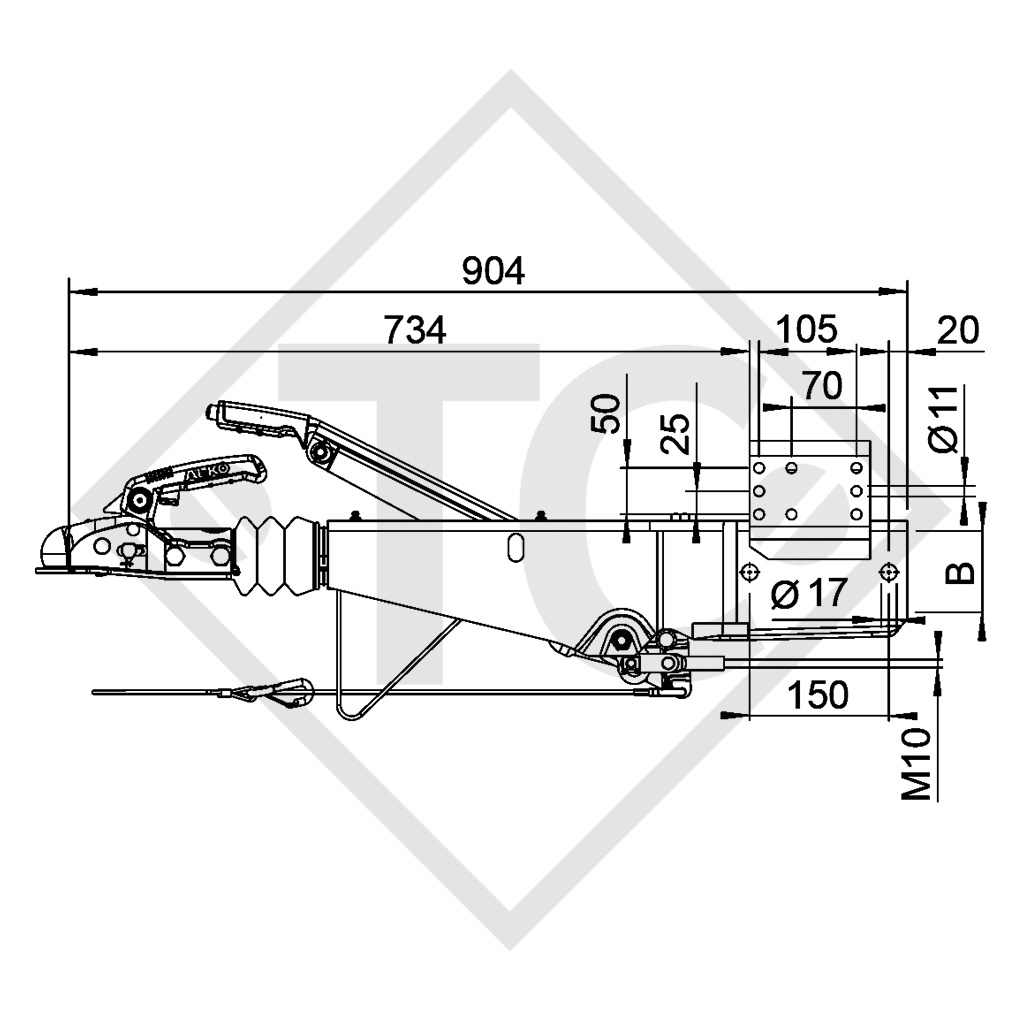

(check mounting dimension B, see technical drawing) 100 |
| Change-over relay lever? |
yes |
| Can be combined with AL-KO wheel brake |
1637 / 2051 |
| Hitch mounted |
AK 270 |
| ECE test report no. |
Overrun device: 361-0044-97 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 0268 |
| Replacement part identification number (ETI) | 811186 |
Here, you can find the catalogue page as a convenient PDF download.
