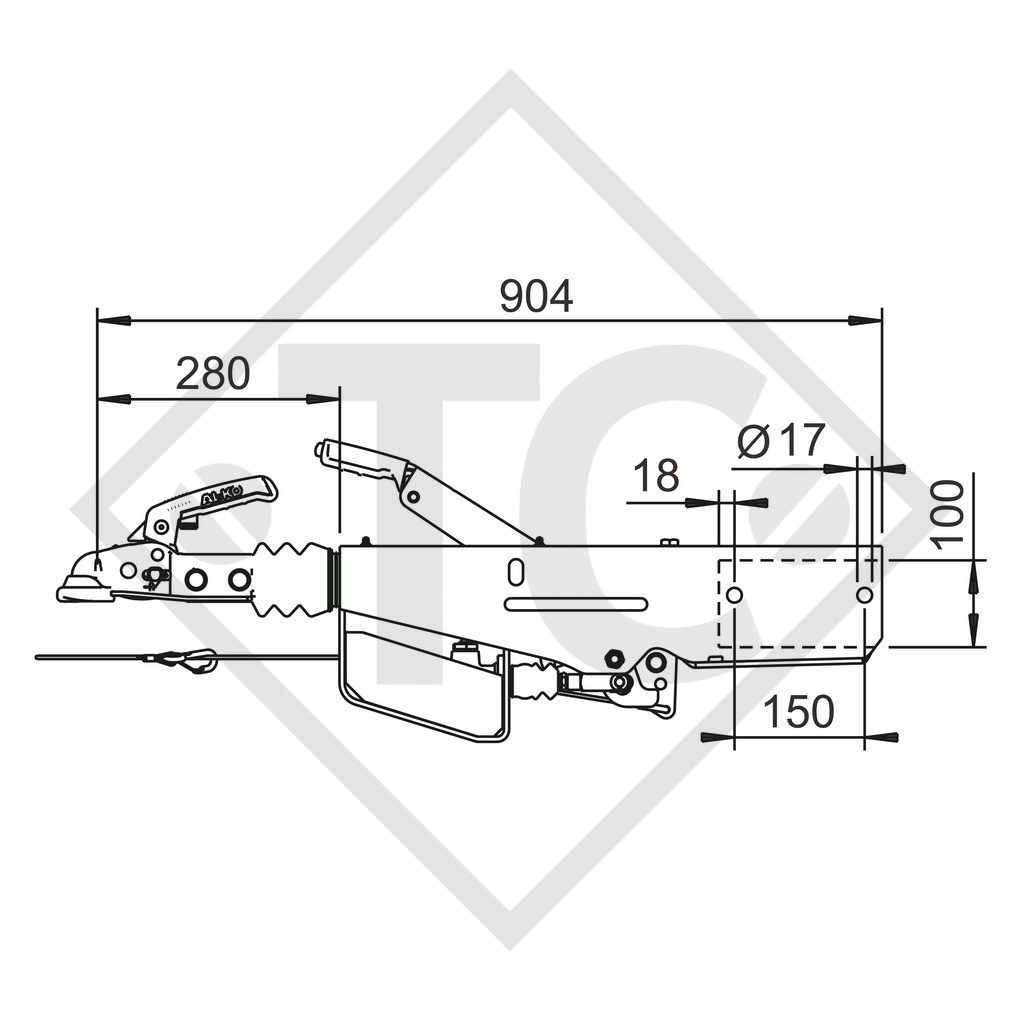

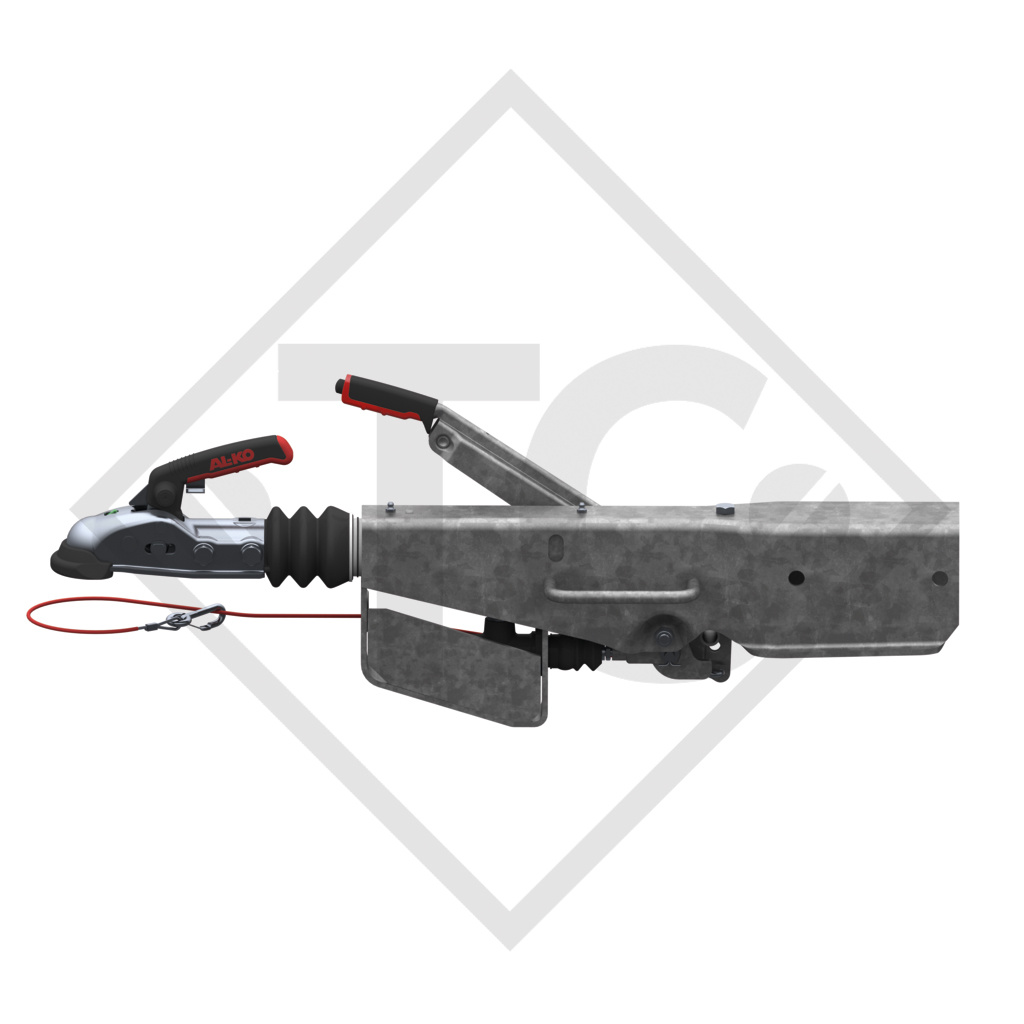

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / UNBRAKED AXLES & ACCESSORIES / UNBRAKED AXLES / UNBRAKED AXLE 750KG BASIC, AXLE TYPE 700-5 / Overrun device square type 251S, 1500 to 2600kg, without jockey wheel carrier, with hydraulic brake transmission device
connection dimension B 100mm, nose load 100kg, can be combined with AL-KO wheel brake 2051, with coupling head AK 270, Soft-Dock. Read more...
Part no. 1253081
| Type | □ 251 S |
| Gross weight in kg |
1500 - 2600 |
| Nose load in kg |
100 |
| Installation |
□ 100 |
| Change-over relay lever? |
yes 2361 / 3081 |
| Can be combined with AL-KO wheel brake |
2051 |
| Hitch mounted |
AK 270 |
| ECE test report no. |
Overrun device: 361-0044-97 |
| ECE type approval no. |
Drawbar installation: E1 55R-01-268 |
| Replacement part identification number (ETI) | 811260 |
Here, you can find the catalogue page as a convenient PDF download.
