total length K (at 0°) 3750mm, drawbar length E 2610mm, drawbar section 70x140x3mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051. Read more...

Wishlist: Add to comparison:

Part no. 20056621

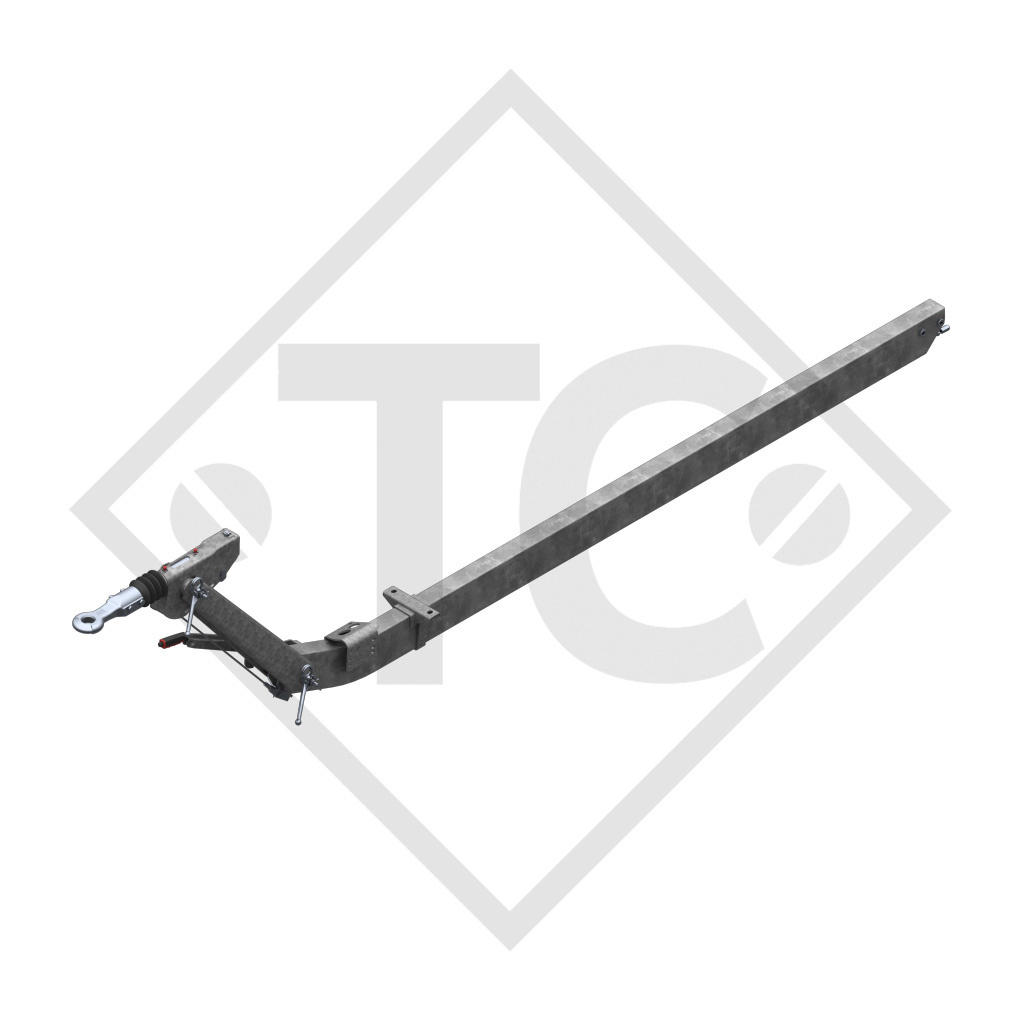

Overrun device cpl. with drawbar section mounted (without hitch components)

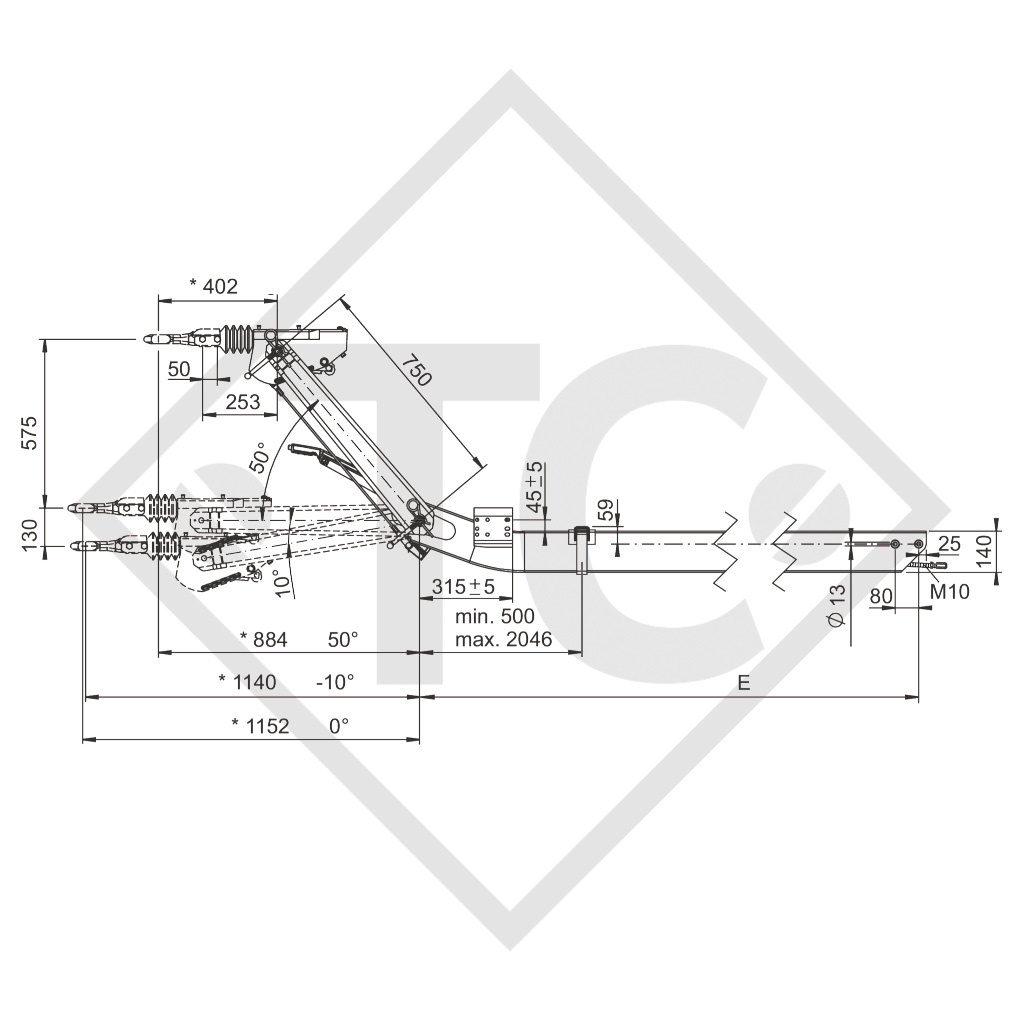

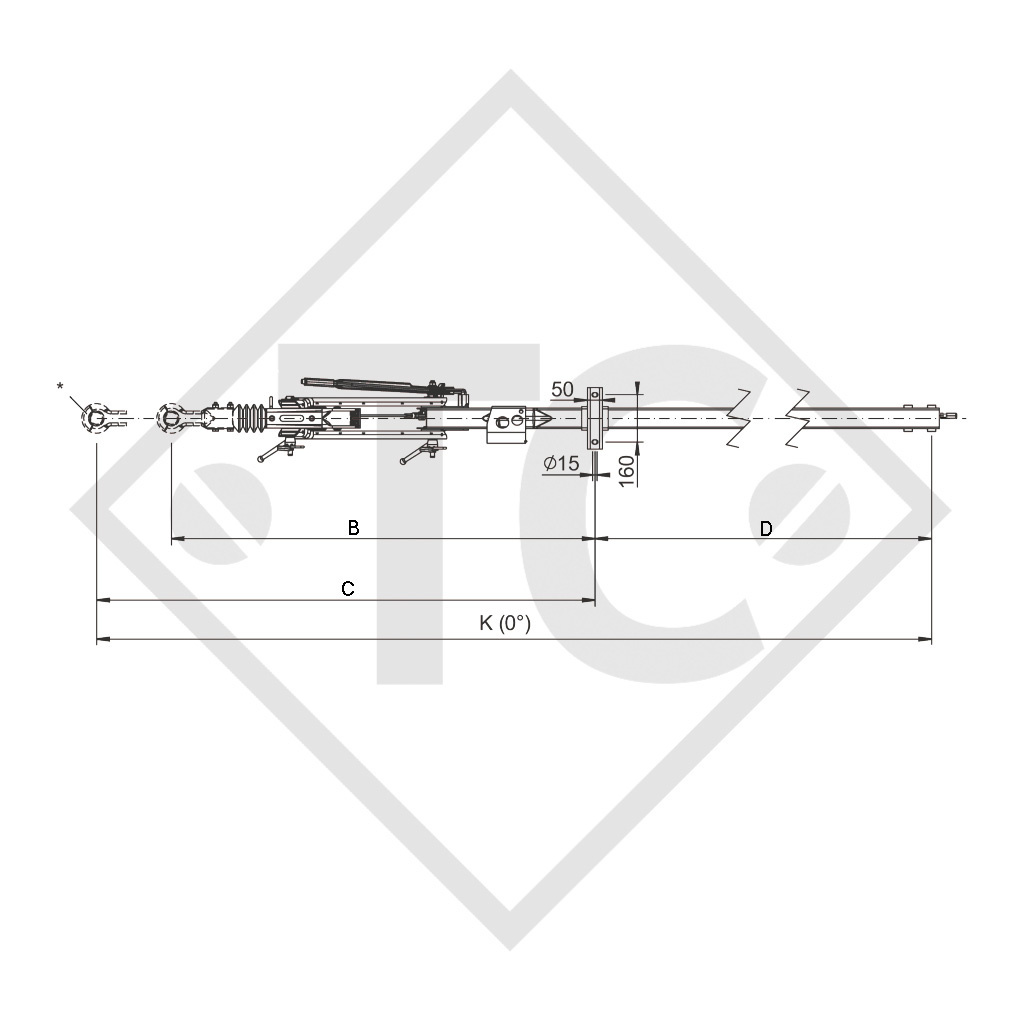

Total length K at 0° 3750mm
Drawbar length E 2610mm
Intermediate piece 750mm
For wheel brake 1637 / 2051

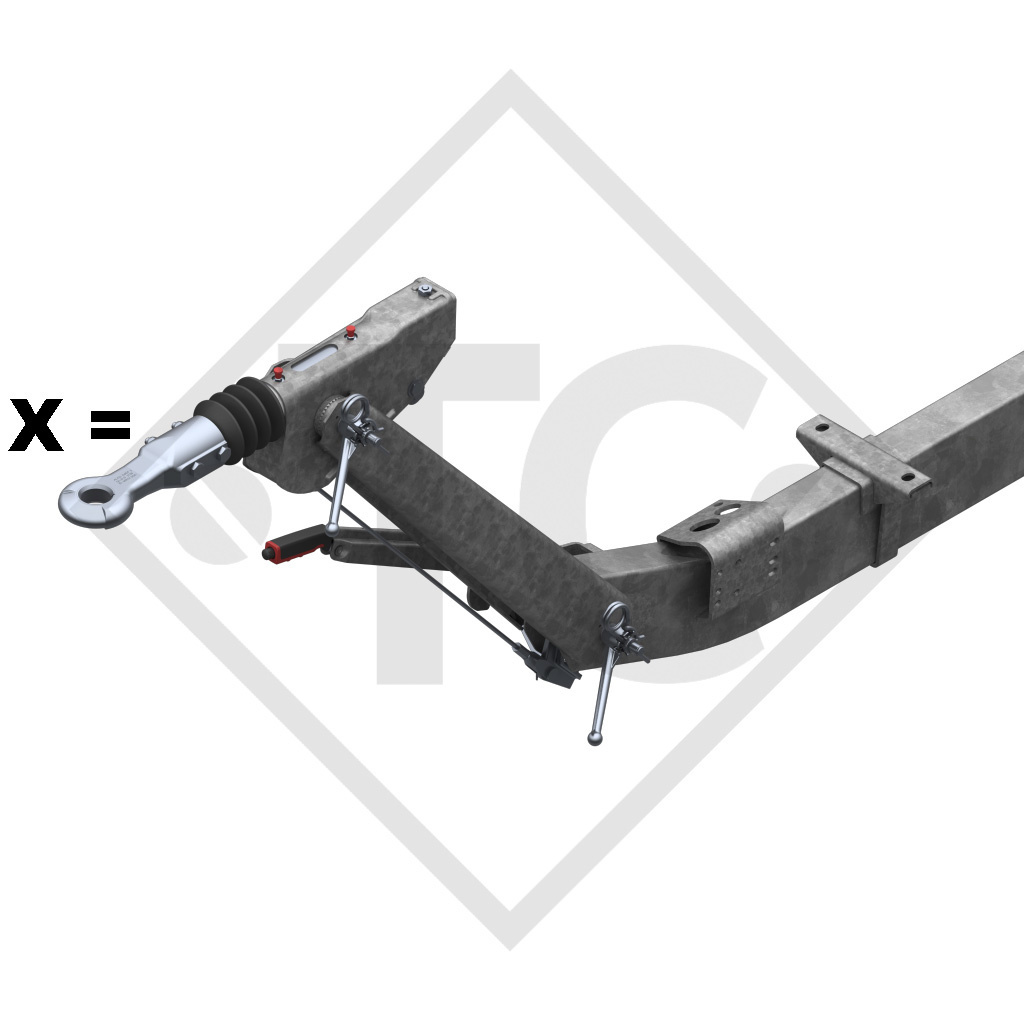

* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

Original operating instructions
Replacement part identification number (ETI) 811930

TECHNOLOGY
Type overrun device 101 VB COMPACT
Intermediate piece with drawbar section 102 VB Compact
Permissible nose load 100kg

ECE test report no.:
Overrun device: 361-0127-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0211

Changeover relay lever: No
