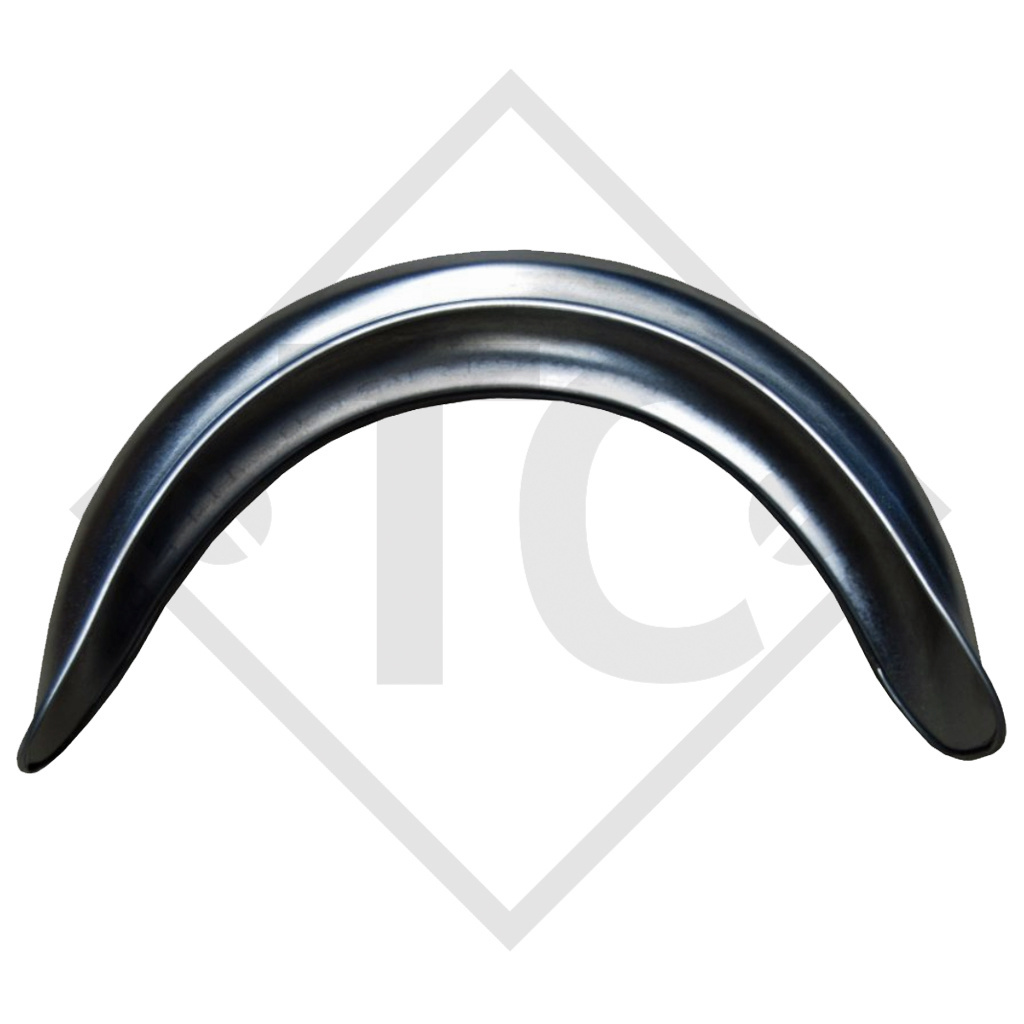

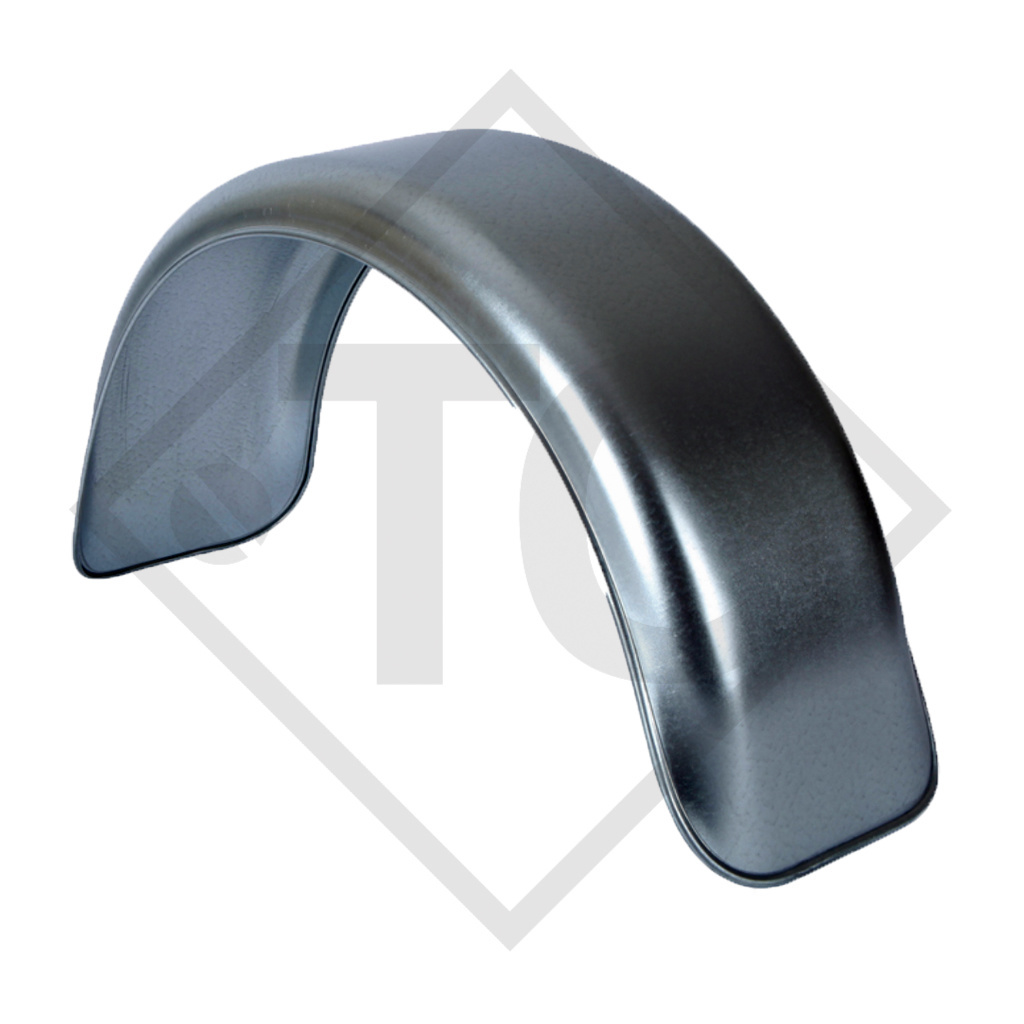

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / TOWBAR CONNECTIONS / DRAWBAR INSTALLATION V PROFI 3500 FOR TRAILERS WITH PNEUMATIC BRAKES UP TO 3500KG / Mudguard, single axle trailer, sheet metal suitable for all common trailer types

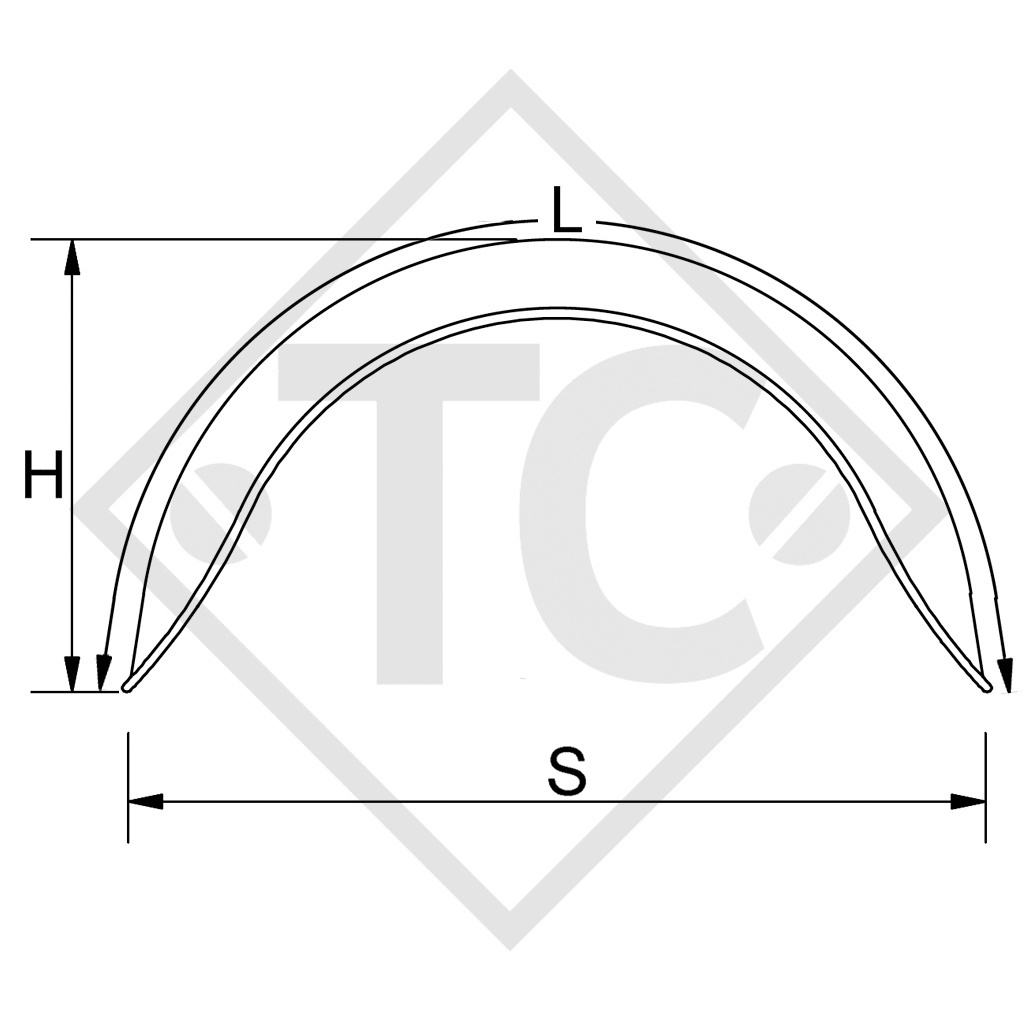

profile R40/R40, width (B) 220mm, length (L) 1285mm, height (H) 415mm, span width (S) 800mm, type R 2280 vers. H 2213. Read more...
Part no. R2280-H2213

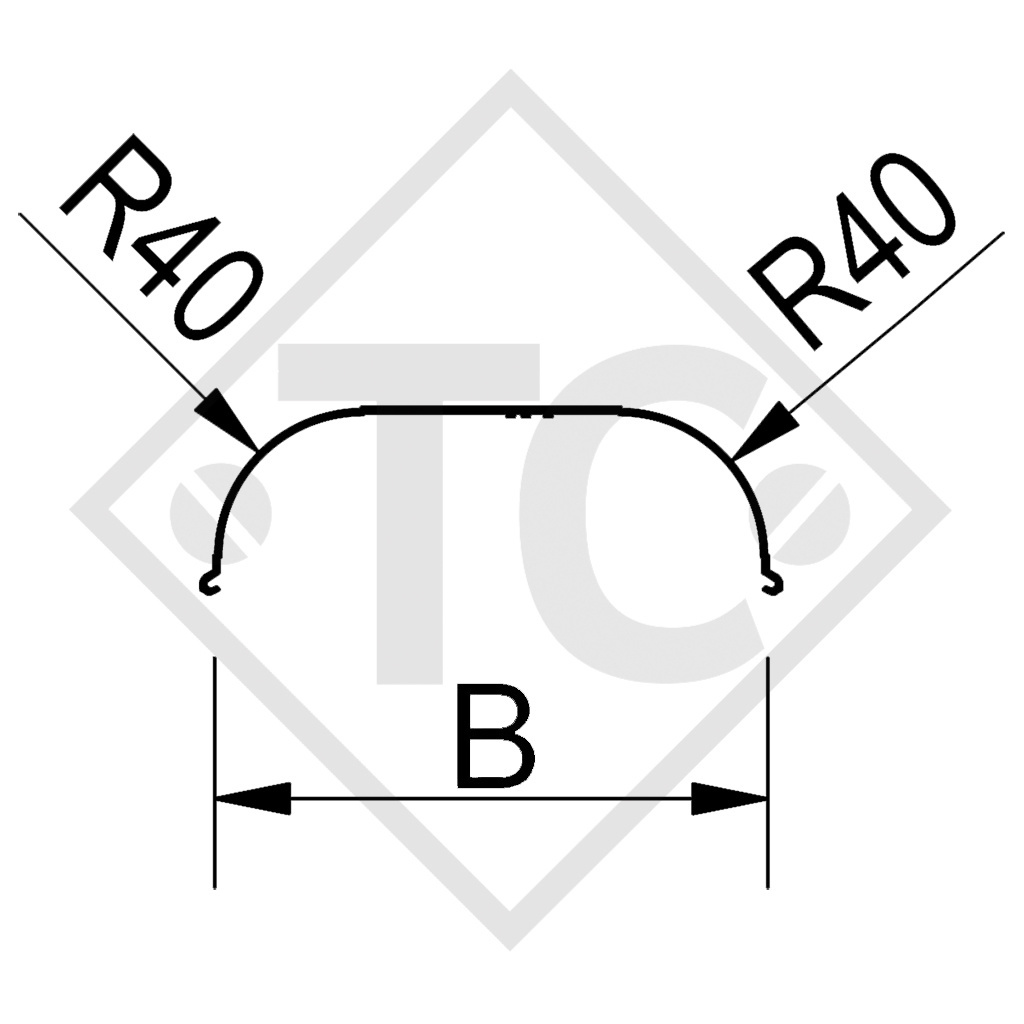

| Profile | R40/R40 |
| Width (B) | 220mm |
| Length (L) | 1285mm |
| Height (H) | 415mm |
| Span width (S) | 800mm |
| Type | R 2280 |
| Vers. | H 2213 |
