width (B) 200mm, height (H) 335mm, span width (S) 730mm, RAL colour similar to black RAL 9017, max. perm. tyre radius 300mm. Read more...

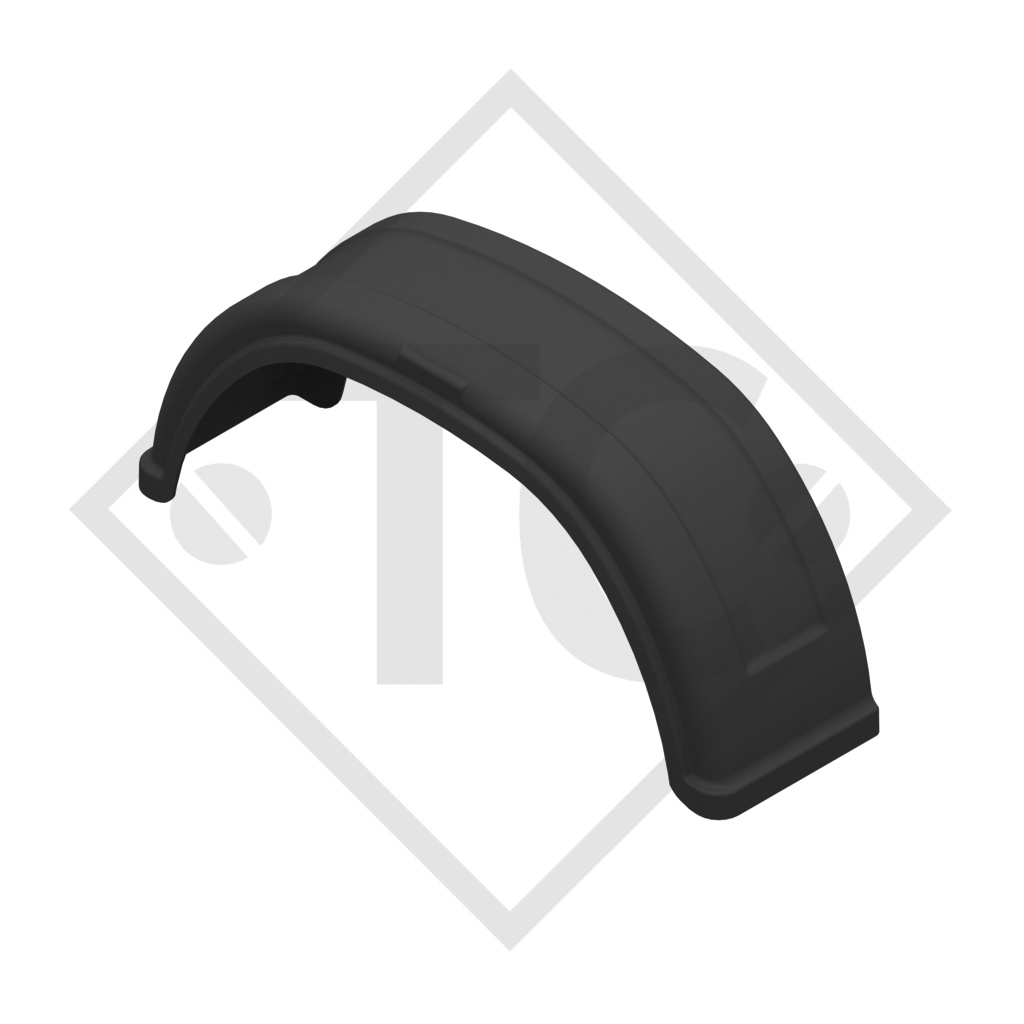

BASIC mudguard, single axle trailer, without mud flap
Part no. 1257130
| Type |
SA 200 |
| Process | injectionmoulded |
| RAL colour |
similar to black RAL 9017 |
| max. perm. tyre radius | 300mm |

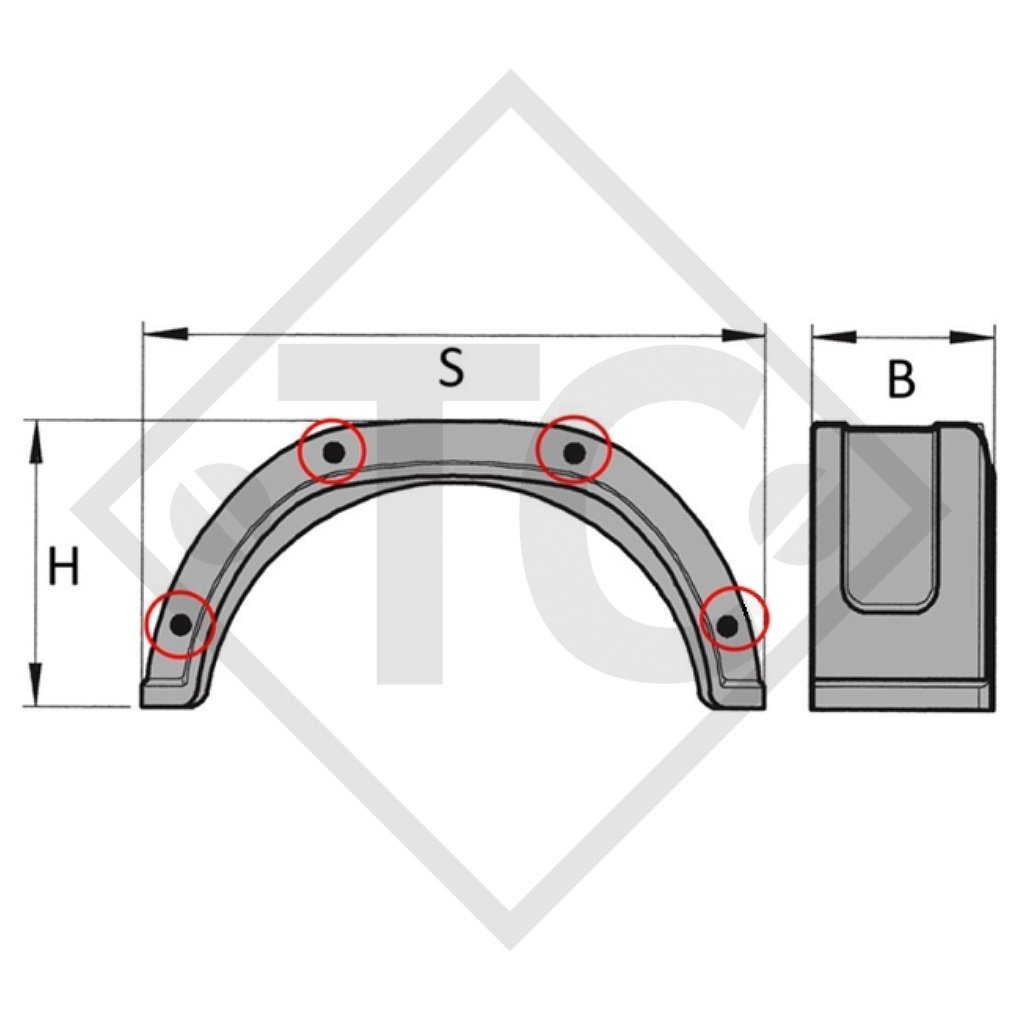

A = Area for customer logo (optional)
B = Recommended fixing holes
Here, you can find the catalogue page as a convenient PDF download. You can also enter the part no. from the catalogue as a search term in our online store.
AL-KO Mudguard
Protection from dirt and spray water
Read more....
