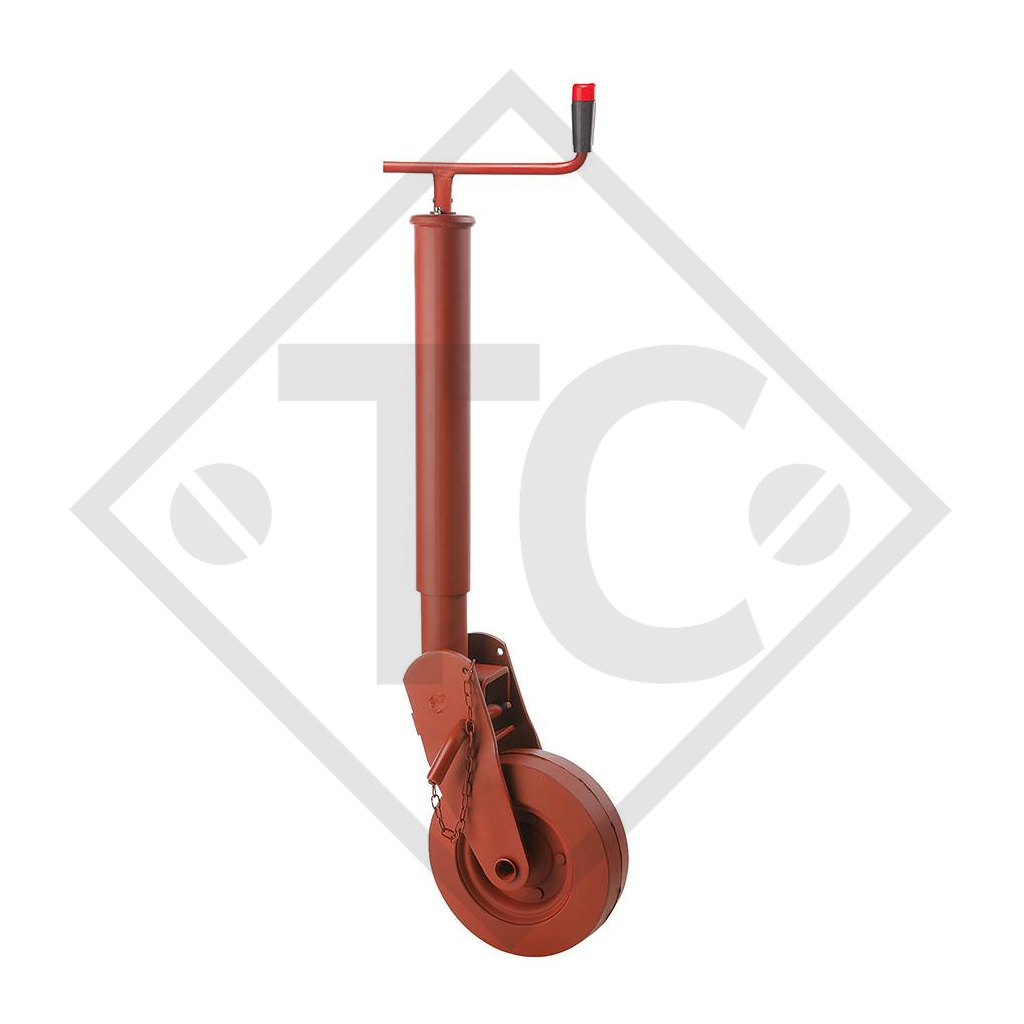

Jockey wheel ø90mm round, type S 170

Jockey wheel ø90mm round with manual turnover support shoe, top crank, type S 170, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 300mm, rim steel, wheel 310x90mm steel plate, maxi. static load 2000kg, dimension A 430mm, dimension B 500mm, dimension D 1030mm, dimension E 185mm. Read more...

Wishlist: Add to comparison:

Price 249,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Outer tube

ø90mm

Screw stroke (extended length)

300mm

Steel wheel

310x90mm

Maxi. static load

2000kg

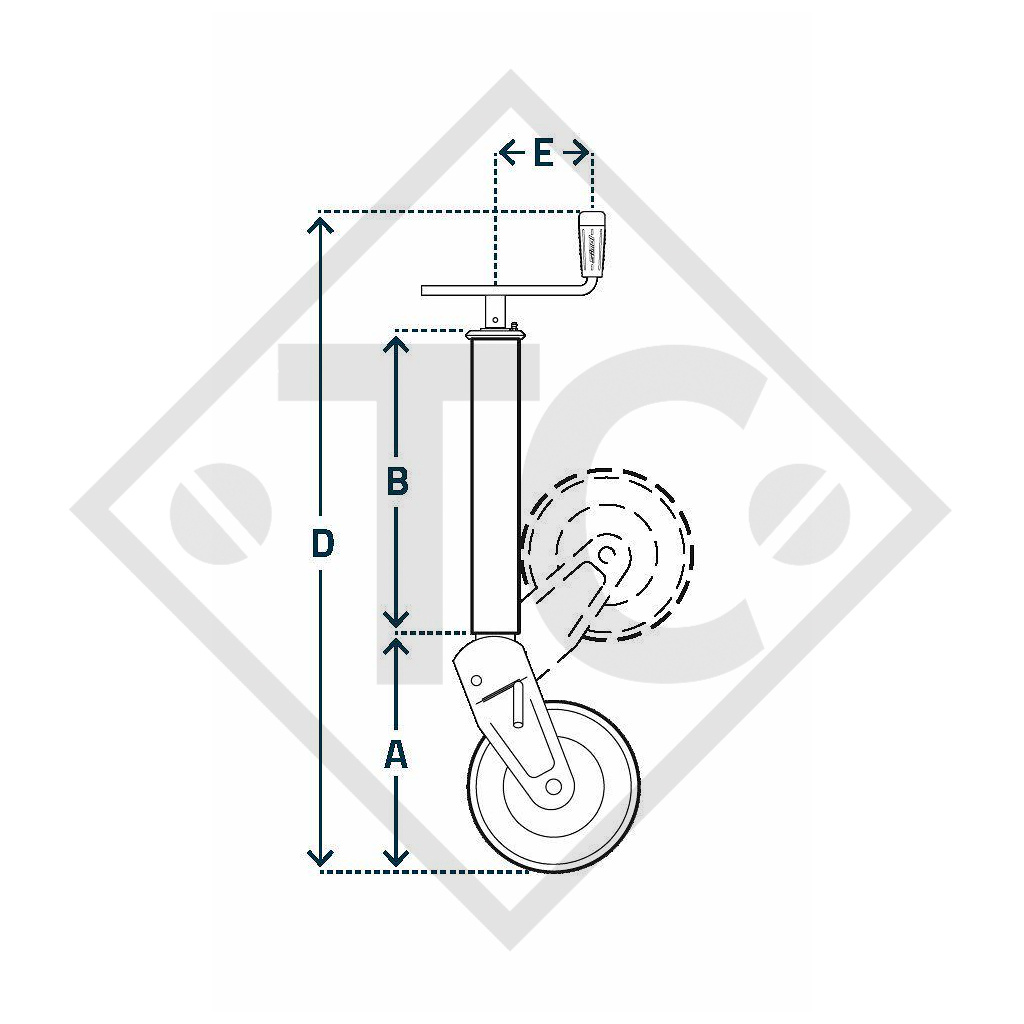

Dimension A

430mm

Dimension B

500mm

Dimension D

1030mm

Dimension E

185mm

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Jockey wheel ø90mm round with manual turnover support shoe, top crank, type S 170, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
