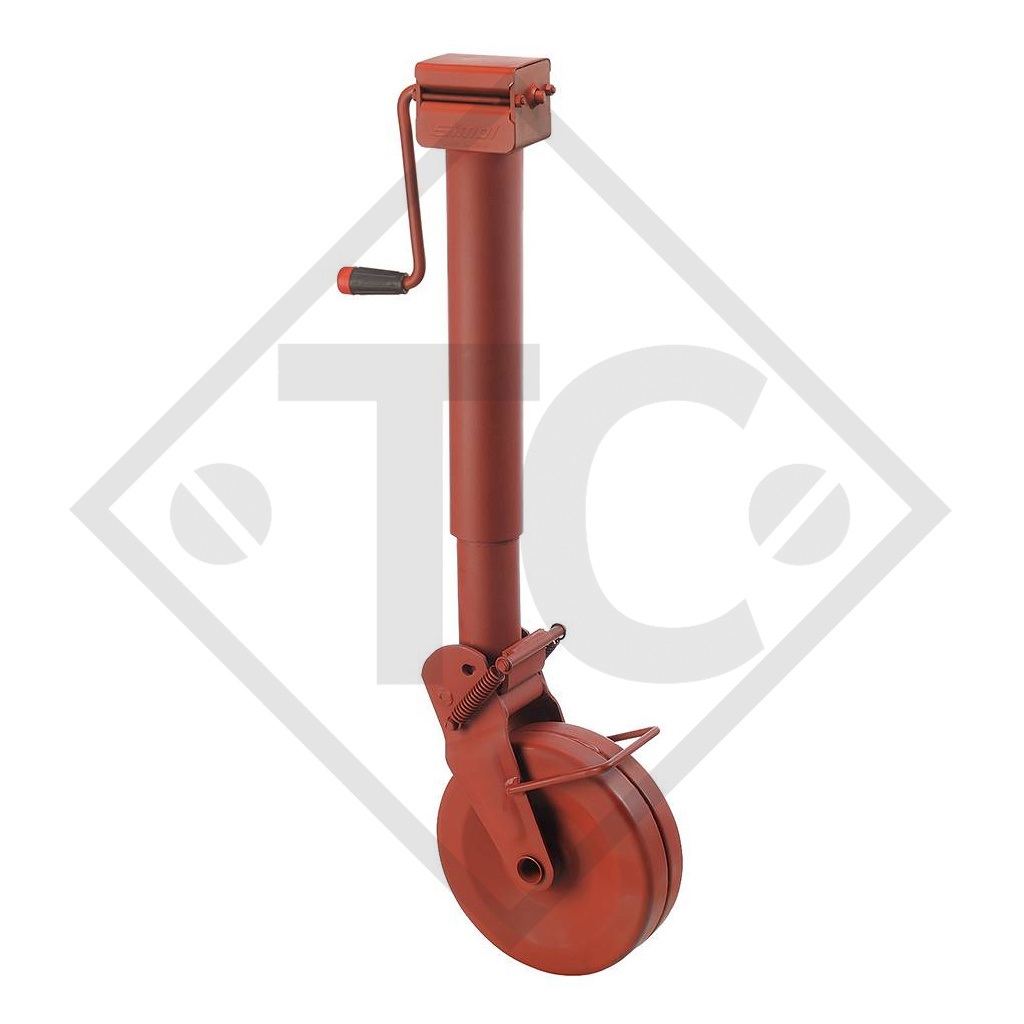

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / LOWERING AXLES 750 TO 3500KG, AXLE TYPE CB 755, CB 1055, CB 1355, CB 1505, CB1805, DB 2/1355, DB 2/1505 AND DB 2/1805 / LOWERING AXLES DOWN TO 180MM, AXLE TYPE CB 1055, SINGLE AXLE TRAILER TO 1050KG / Jockey wheel ø90mm round with semi-automatic support shoe, with side crank, type DM 432, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, rim steel, wheel 310x90mm steel plate, maxi. static load 2000kg, dimension A 370mm, dimension B 455mm, dimension D 920mm, dimension E 225mm. Read more...
| Outer tube |
ø90mm |
| Screw stroke (extended length) | 300mm |
| Steel wheel | 310x90mm |
| Maxi. static load | 2000kg |

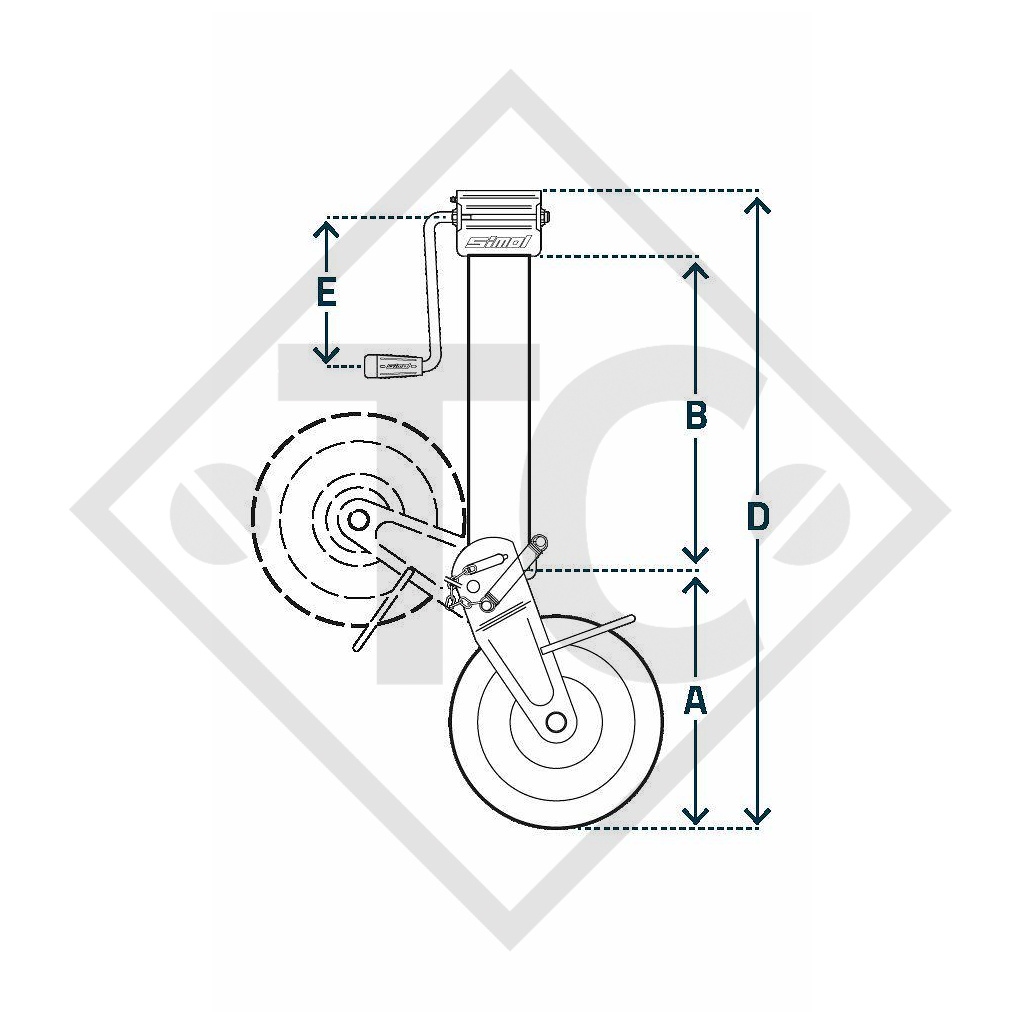

| Dimension A |
370mm |
| Dimension B |
455mm |
| Dimension D |
920mm |
| Dimension E |
225mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
