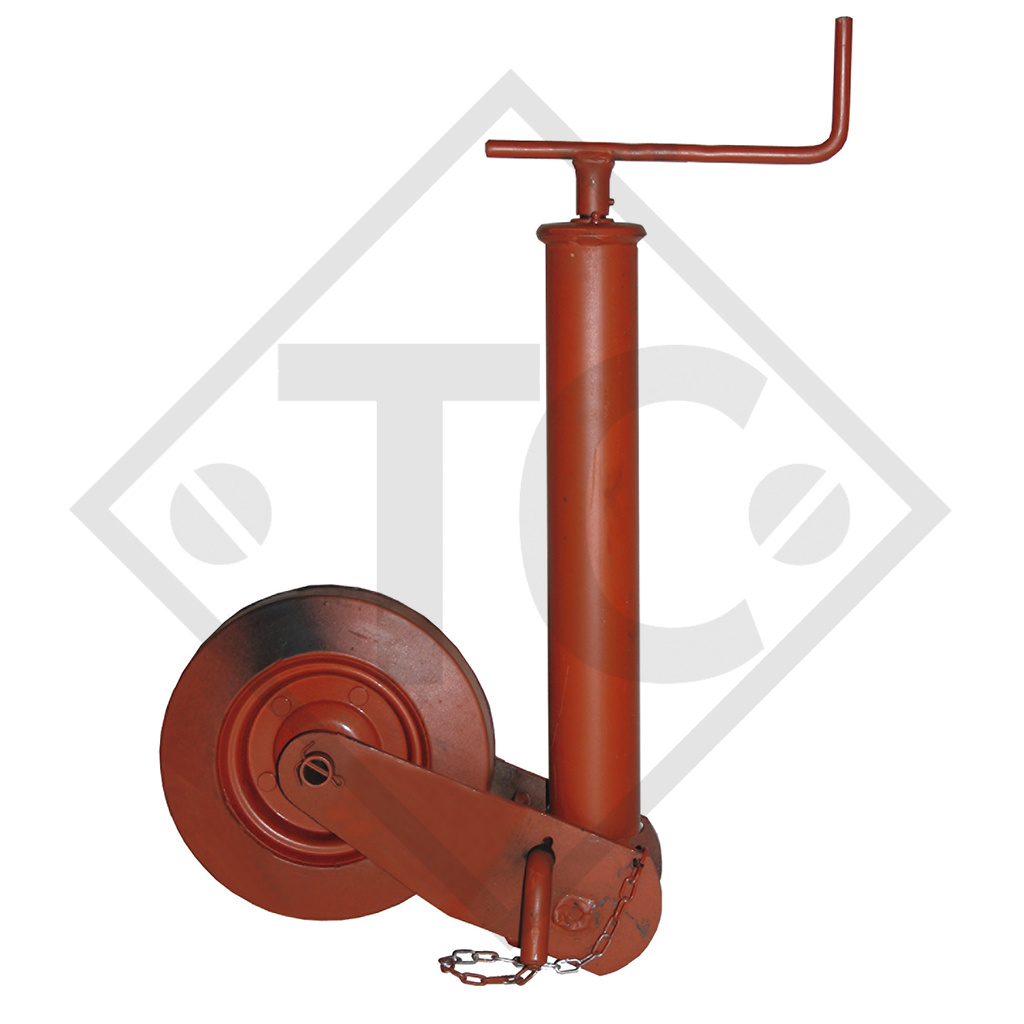

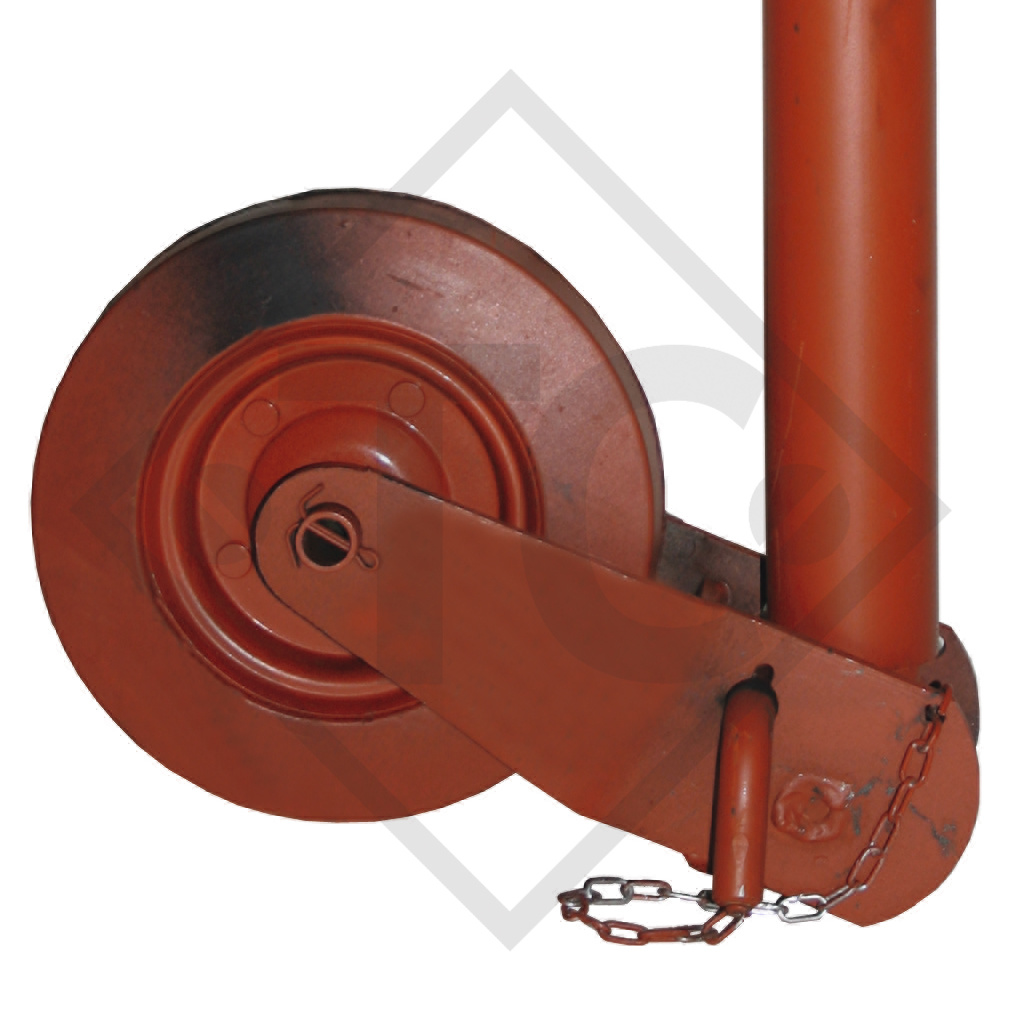

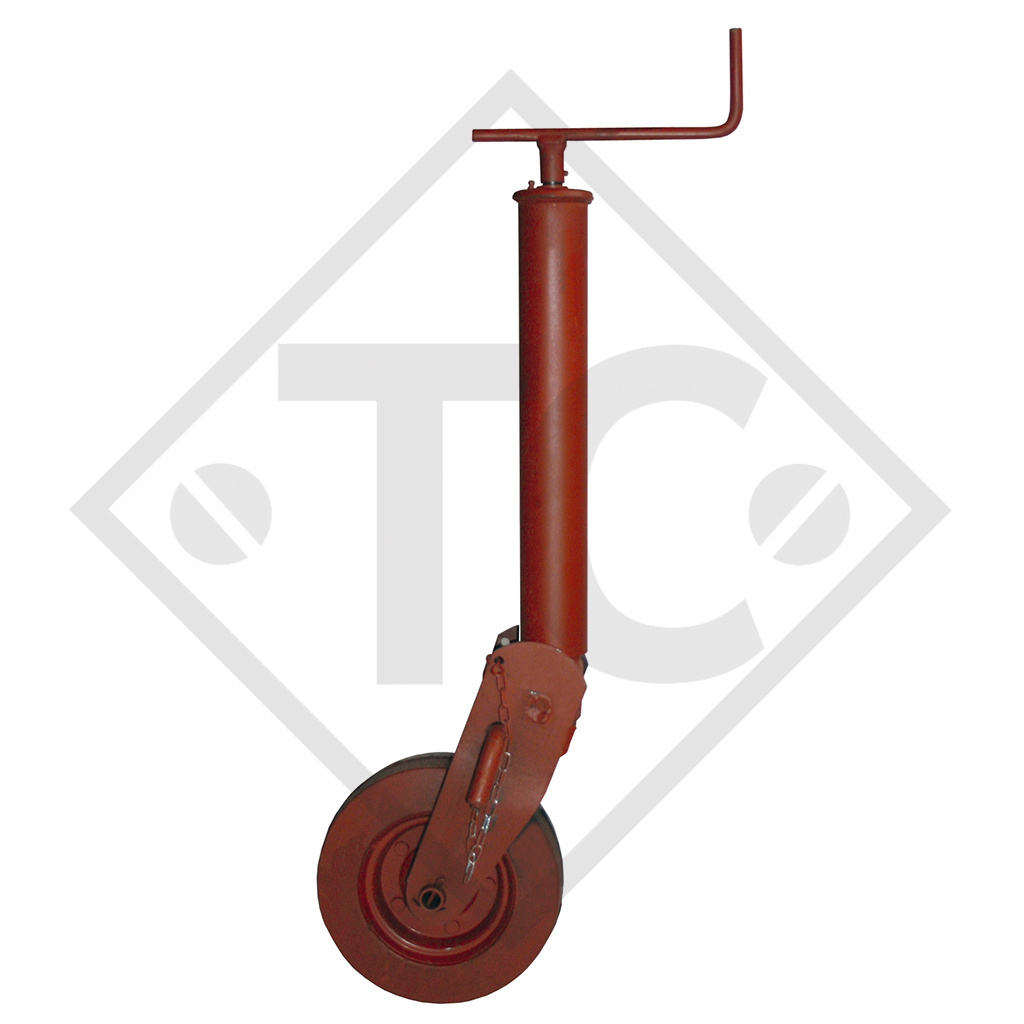

Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION / Jockey wheel ø70mm round with support shoe semi-automatic, 1224013, for caravans, car trailers, machines for building industry

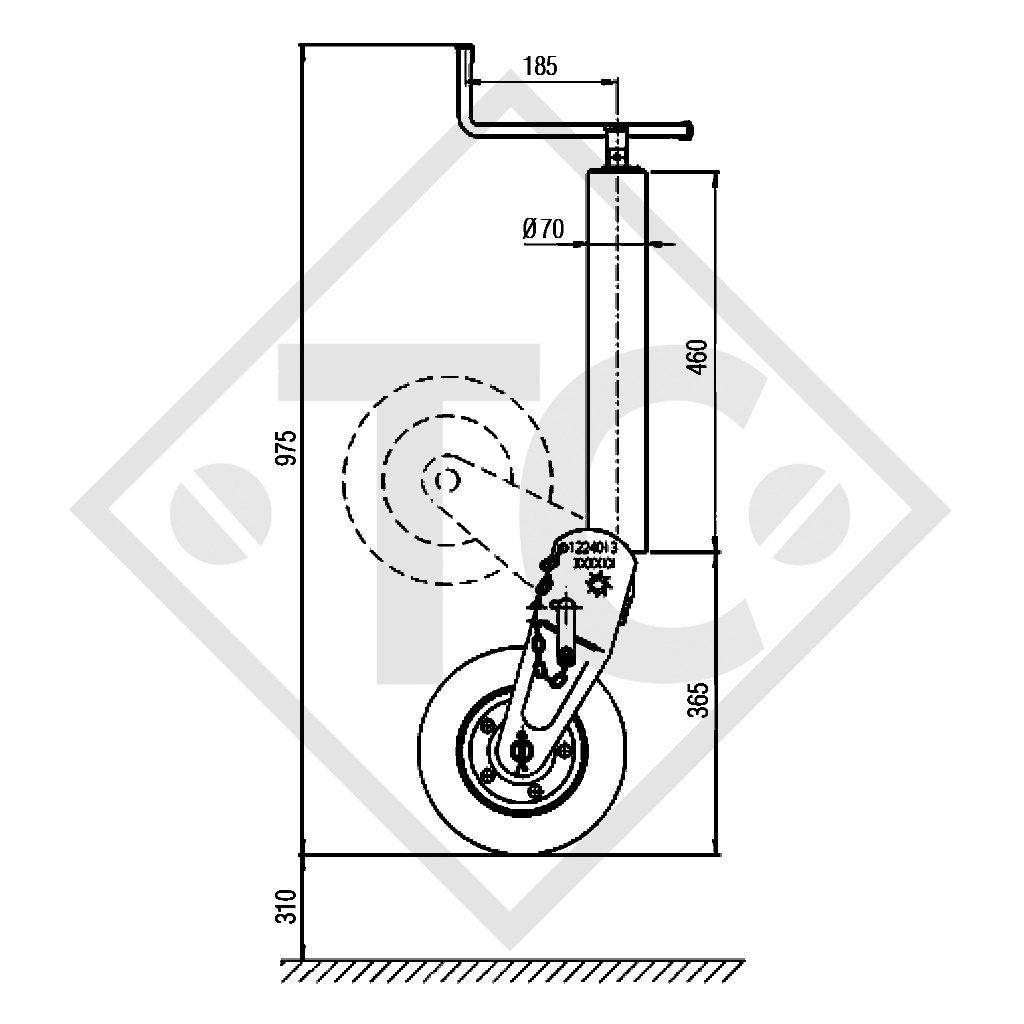

stationary nose load max. 1200kg, nose load when manoeuvring max.720kg, rim steel, wheel 250x80mm solid rubber, extended length 310mm. Read more...
| Stationary nose load | Max. 1200kg |
| Nose load when manoeuvring | Max. 720kg |
| Rim | steel |
| Wheel | 250x80mm solid rubber |
| Extended length | 310mm |
Here, you can find the catalogue page as a convenient PDF download.
