Home / CHASSIS PARTS / CHASSIS PARTS WAP / OVERRUN DEVICES / OVERRUN DEVICES V / OVERRUN DEVICES V FOR THE DISK BRAKE / OVERRUN DEVICES V TYPE WSA 24/35.2 - 1300 TO 2400KG / Jockey wheel ø60mm round, type FC 260 with rim steel, for caravans, car trailers, machines for building industry and aircraft docking systems
screw stroke (extended length) 250mm, Solid rubber wheel 255x80mm, maxi. static load 400kg, dimension A 150mm, dimension B 430mm, dimension D 720mm, dimension E 160mm. Read more...
| Outer tube |
ø60mm |
| Screw stroke (extended length) | 250mm |
| Rubber wheel | 255x80mm |
| Maxi. static load | 400kg |

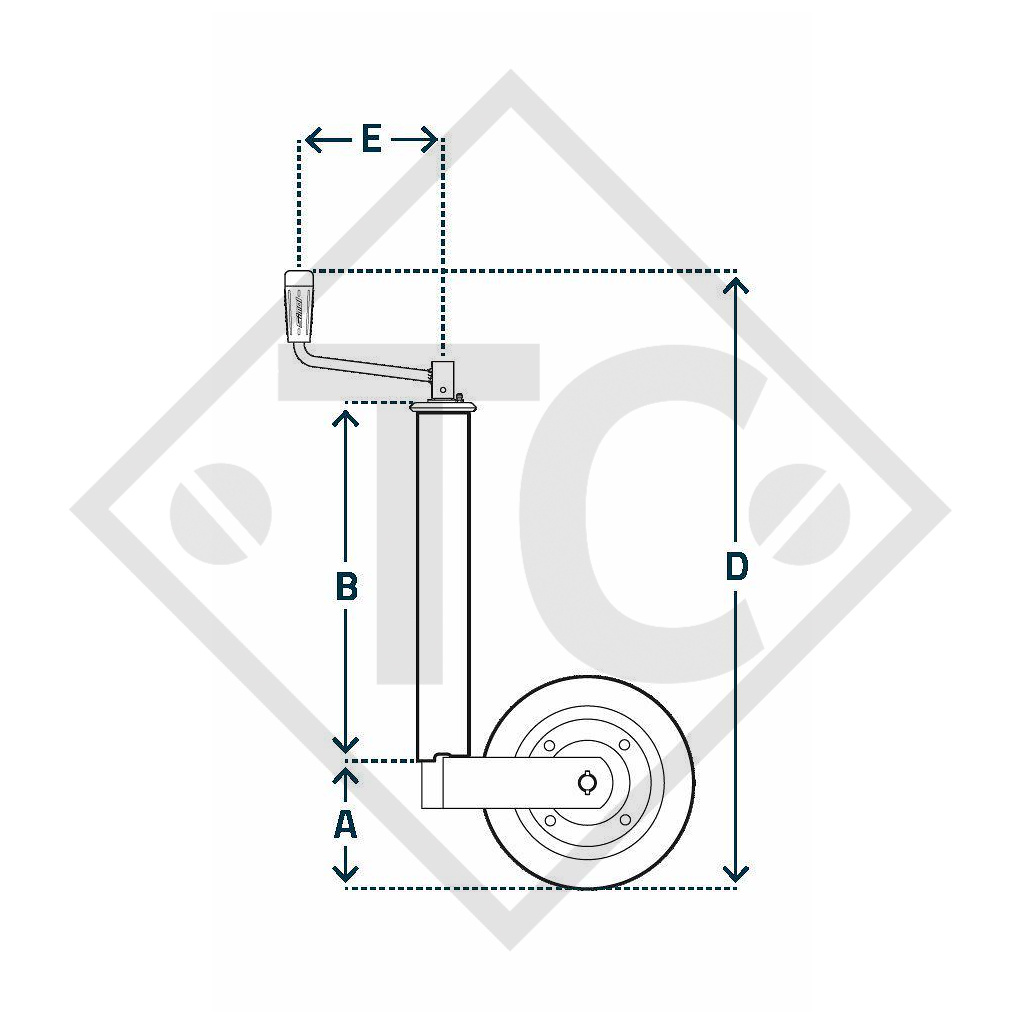

| Dimension A |
150mm |
| Dimension B |
430mm |
| Dimension D |
720mm |
| Dimension E |
160mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
