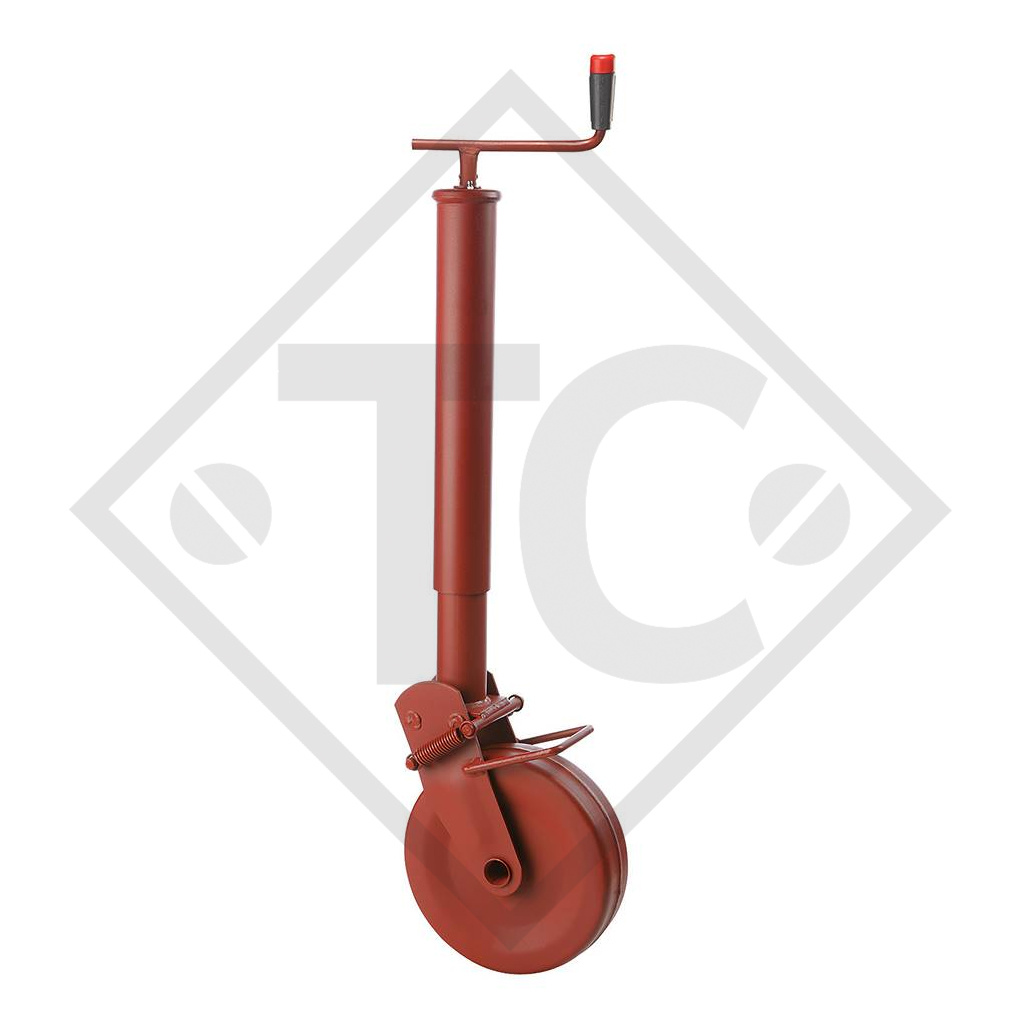

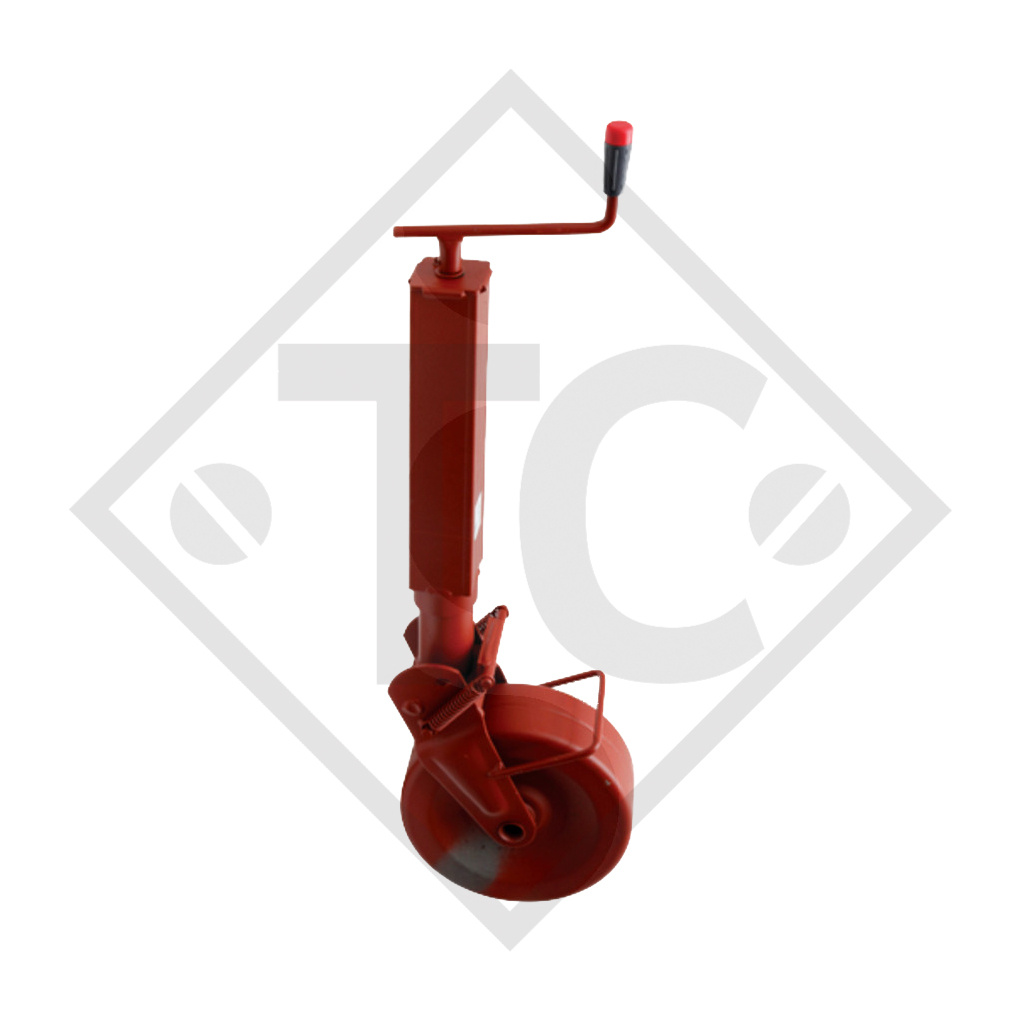

Home / Jockey wheel □80mm square with semi-automatic support shoe, top crank, type M 237, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, rim steel, wheel 310x90mm steel plate, maxi. static load 1400kg, dimension A 370mm, dimension B 465mm, dimension D 1000mm, dimension E 185mm. Read more...
| Outer tube |
□80mm square |
| Screw stroke (extended length) | 300mm |
| Steel wheel | 310x90mm |
| Maxi. static load | 1400kg |

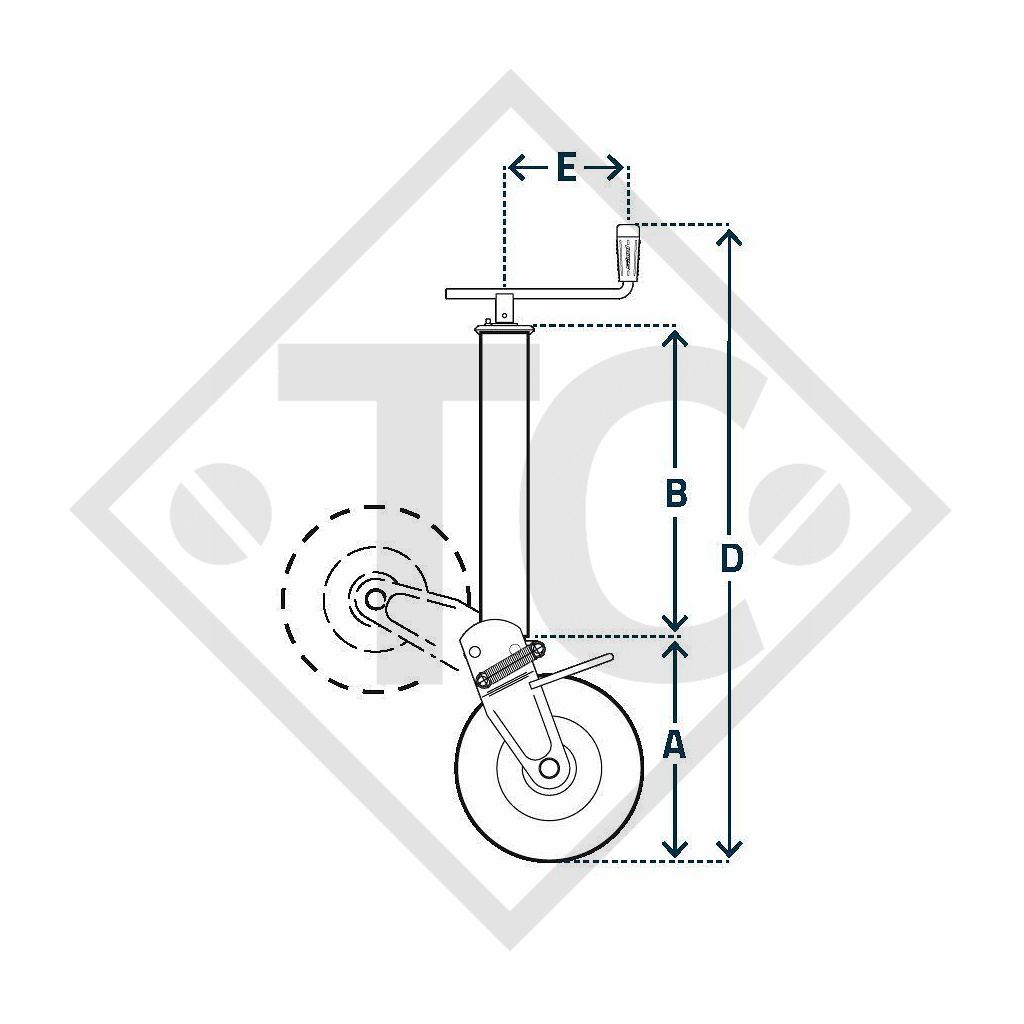

| Dimension A |
370mm |
| Dimension B |
465mm |
| Dimension D |
1000mm |
| Dimension E |
185mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
