Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / LOWERING AXLES 750 TO 3500KG, AXLE TYPE CB 755, CB 1055, CB 1355, CB 1505, CB1805, DB 2/1355, DB 2/1505 AND DB 2/1805 / Jockey wheel □50mm square with manual turnover support shoe, top crank, type S 165, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 200mm, rim steel, wheel 200x50mm solid rubber, maxi. static load 400kg, dimension A 260mm, dimension B 330mm, dimension D 740mm, dimension E 115mm. Read more...
| Outer tube |
□50mm square |
| Screw stroke (extended length) | 200mm |
| Rubber wheel | 200x50mm |
| Maxi. static load | 400kg |

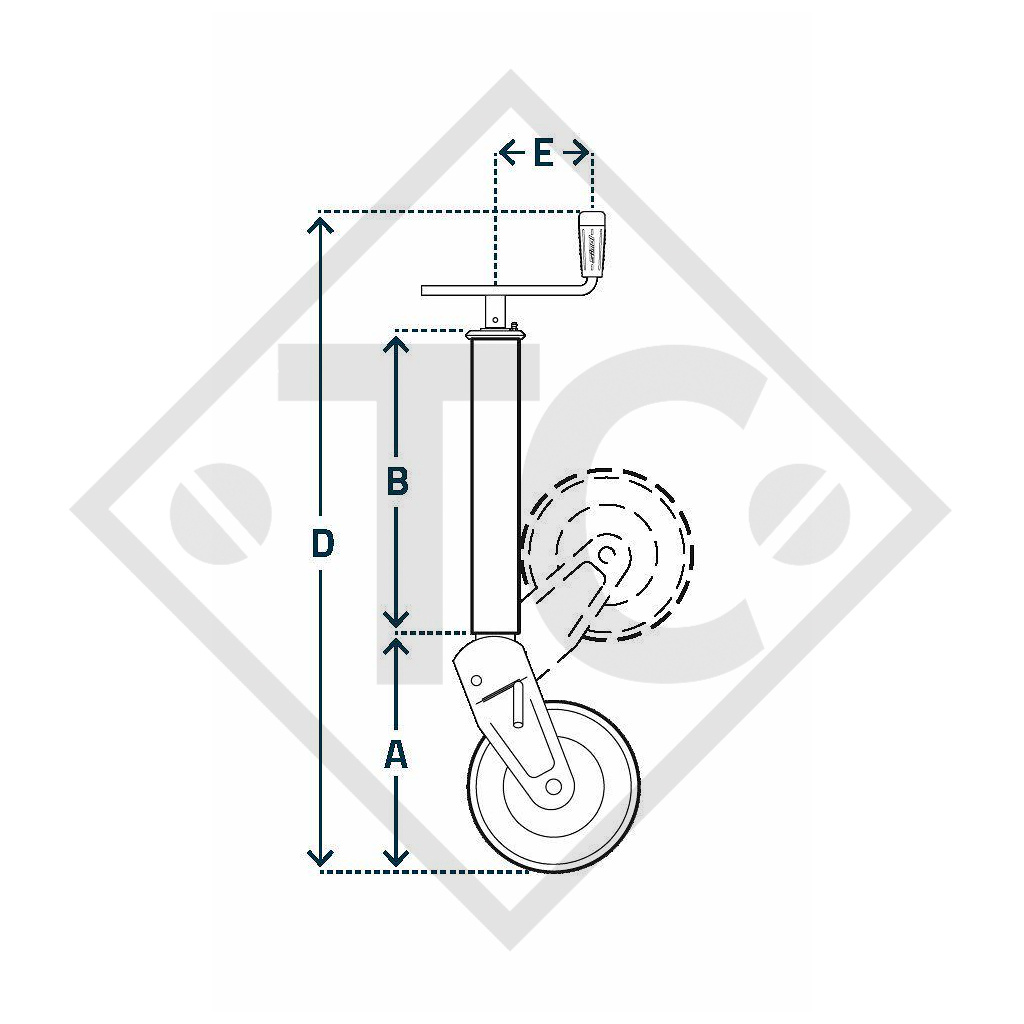

| Dimension A |
260mm |
| Dimension B |
330mm |
| Dimension D |
740mm |
| Dimension E |
115mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
