wheel load per hub up to max. 140 km/h 1100kg, up to max. 40 km/h 1100kg, wheel connection (G) 205x6, thread M18x1.5, offset 0, dimension A 167mm, dimension B 68mm, dimension C 44.8mm, dimension D 250mm, dimension E 42mm, dimension F 160mm, bearing type 5 Read more...

Wishlist: Add to comparison:
Wheel load per hub up to max. 140 km/h
1100kg
Wheel load per hub up to max. 40 km/h 1100kg
Wheel connection, connection G
205x6
Wheel connection, thread M18x1.5
Offset 0mm

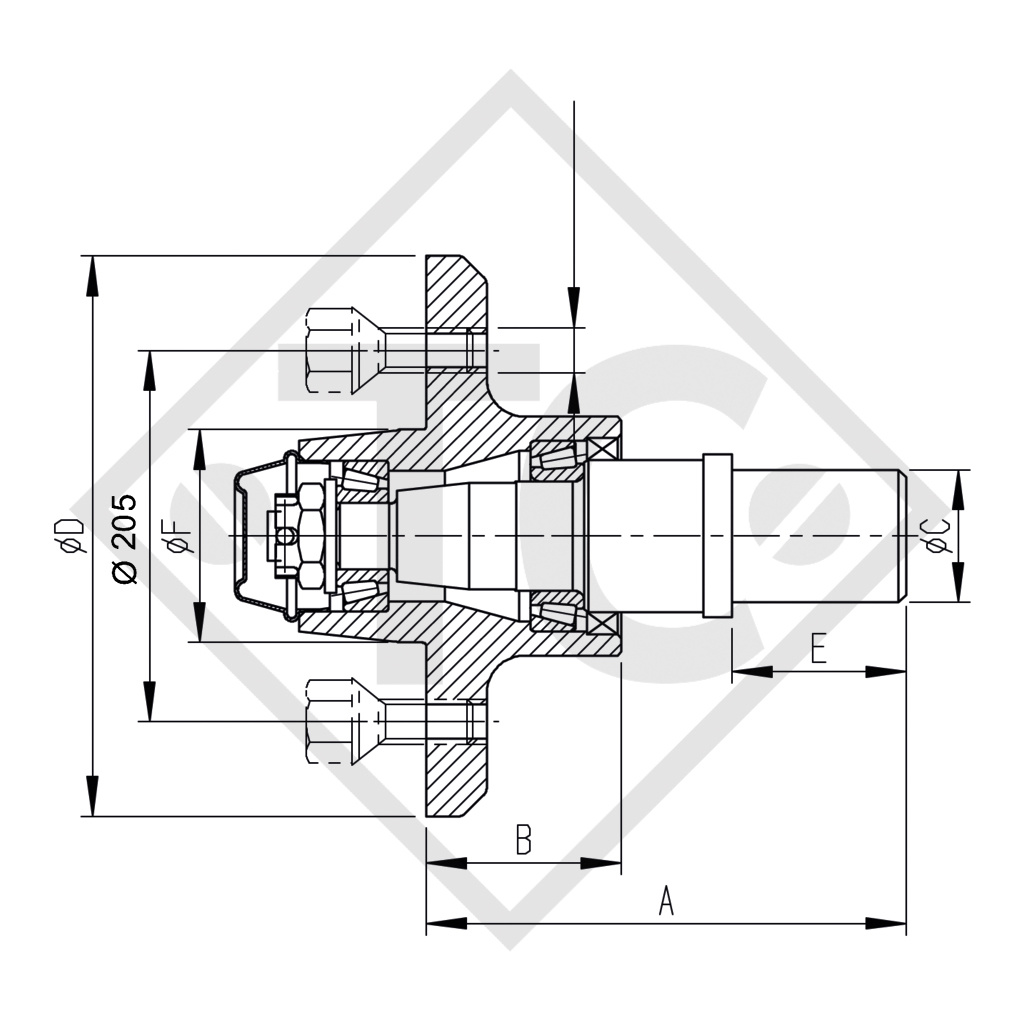

Dimension A
167mm
Dimension B 68mm
Dimension C 44.8mm
Dimension D 250mm
Dimension E
42mm
Dimension F 160mm
Splash guard no
Bearing type tapered rollers



IMPORTANT!
As per ECE Directive R13 / Directive EC 2007/46, only unbraked trailers with a permitted gross weight of up to 750kg may be brought into circulation. Special regulations for specific countries must be observed.

SCOPE OF DELIVERY

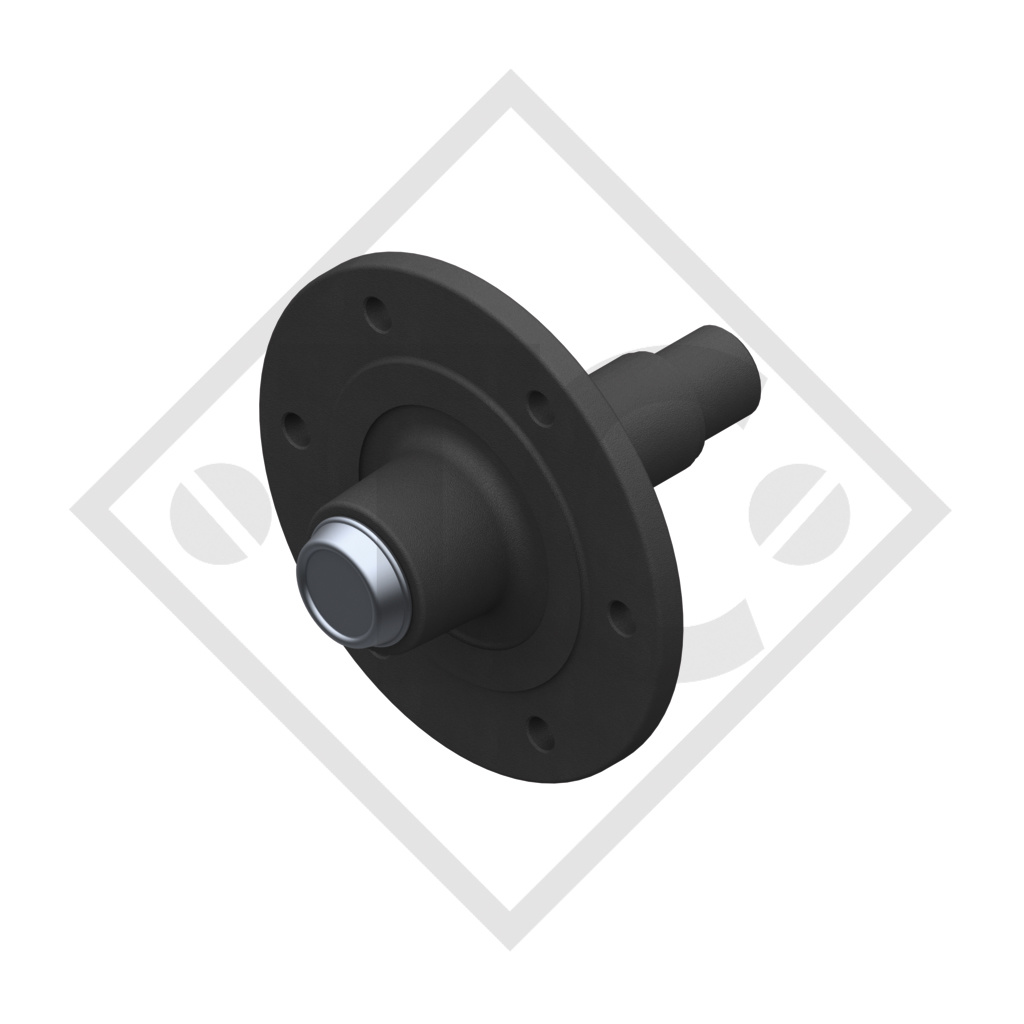

See illustration.
Wheel bolts not included in scope of delivery, please order separately.

SURFACE TREATMENT
Synthetic resin dip-coating black

POSSIBLE WHEEL CONNECTIONS
On request
Suitable for rims with centre hole min. 57mm

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
