wheel load per hub up to max. 140 km/h 750kg, up to max. 40 km/h 850kg, wheel connection (G) 112x5, thread M12x1.5, offset 27-33, dimension A 238mm, dimension B 103mm, dimension C 180mm, dimension D 50mm, dimension E 49mm, bearing type Compact. Read more...

Wishlist: Add to comparison:
Wheel load per hub up to max. 140 km/h
750kg
Wheel load per hub up to max. 40 km/h 850kg
Wheel connection, connection G
112x5
Wheel connection, thread M12x1.5
Offset 27-33mm

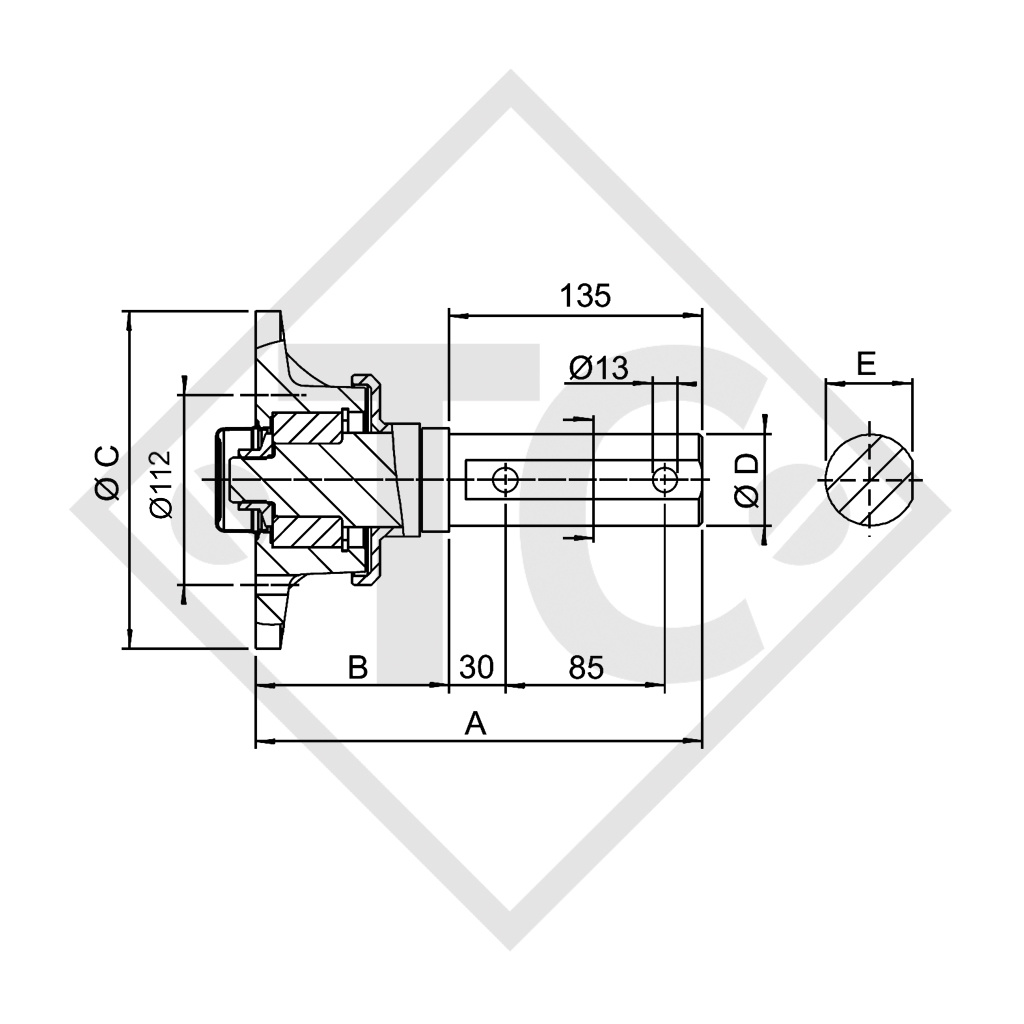

Dimension A
238mm
Dimension B 103mm
Dimension C 180mm
Dimension D 50mm
Dimension E
49mm
Splash guard Yes
Bearing type Compact



IMPORTANT!
As per ECE Directive R13 / Directive EC 2007/46, only unbraked trailers with a permitted gross weight of up to 750kg may be brought into circulation. Special regulations for specific countries must be observed.

SCOPE OF DELIVERY

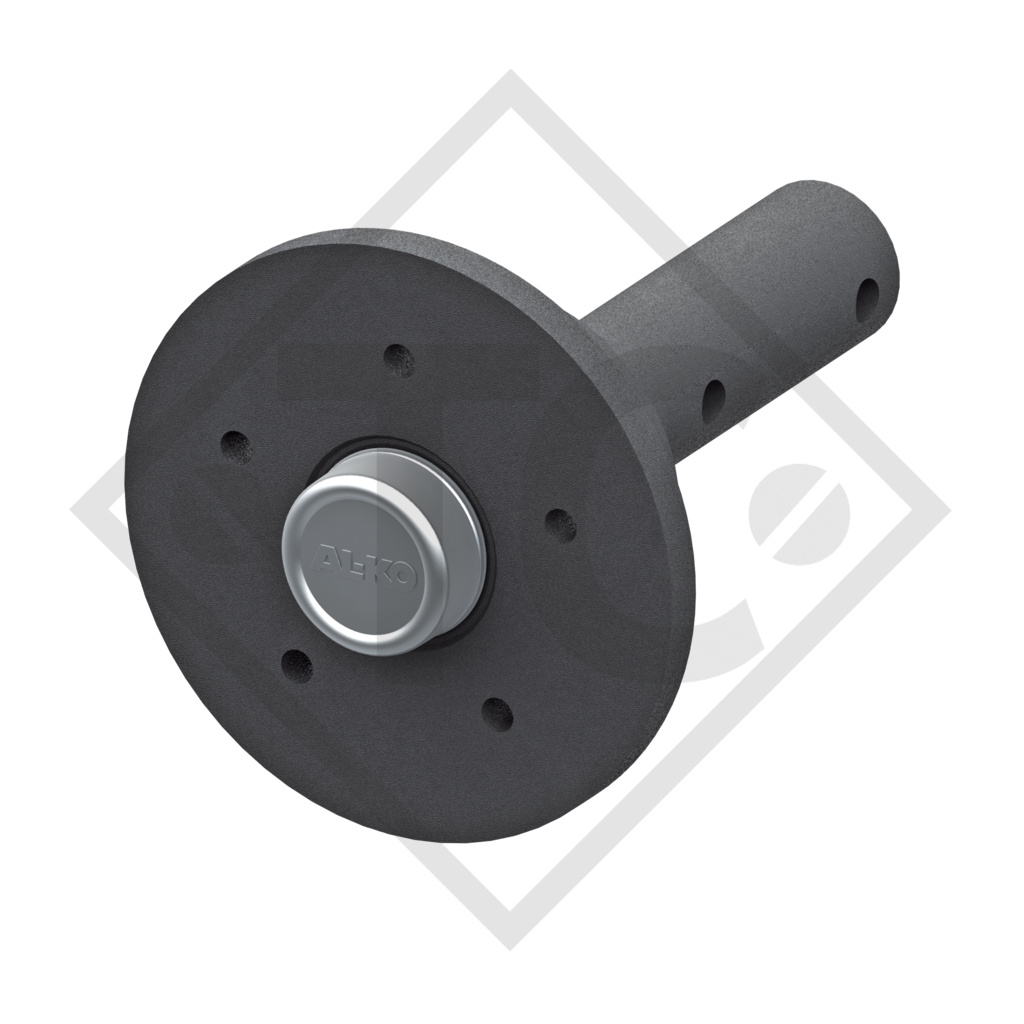

See illustration.
Wheel bolts not included in scope of delivery, please order separately.

SURFACE TREATMENT
Synthetic resin dip-coating black

POSSIBLE WHEEL CONNECTIONS
On request
Suitable for rims with centre hole min. 57mm

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
