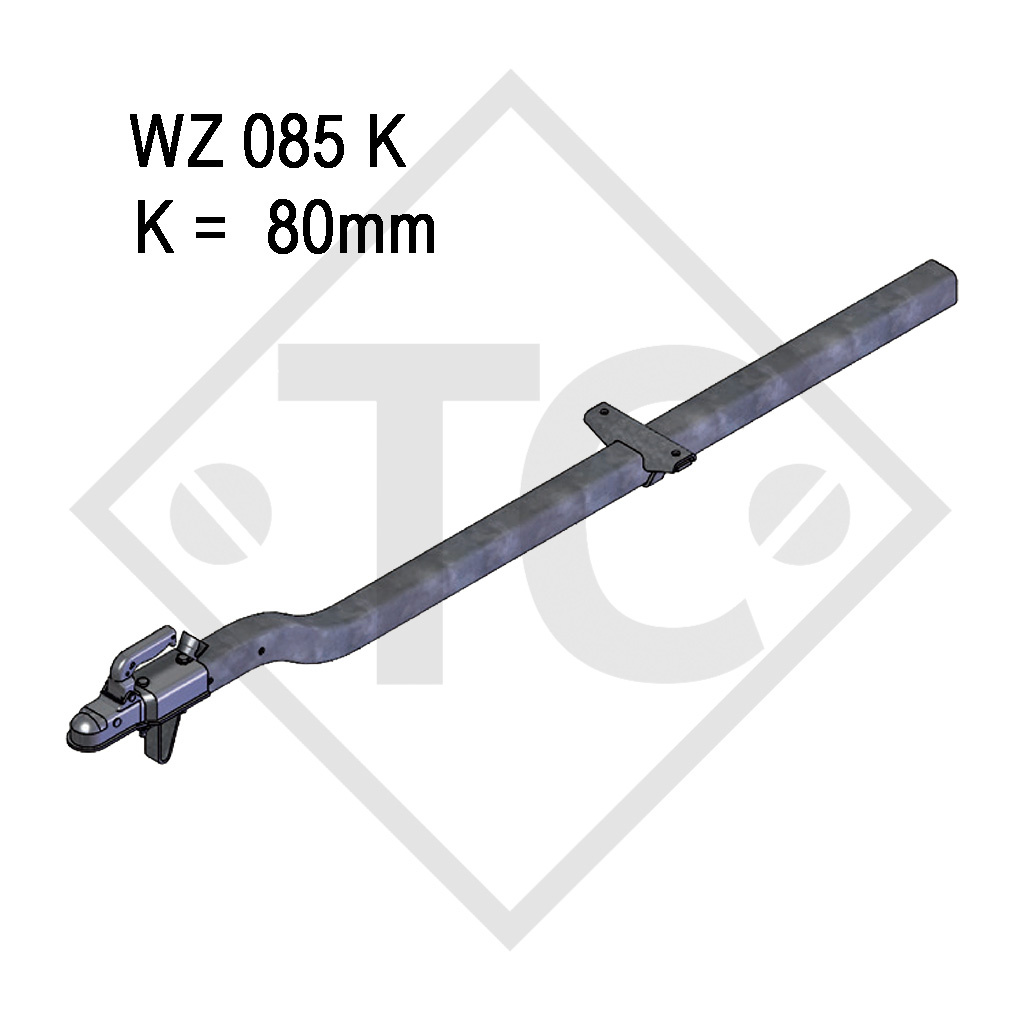

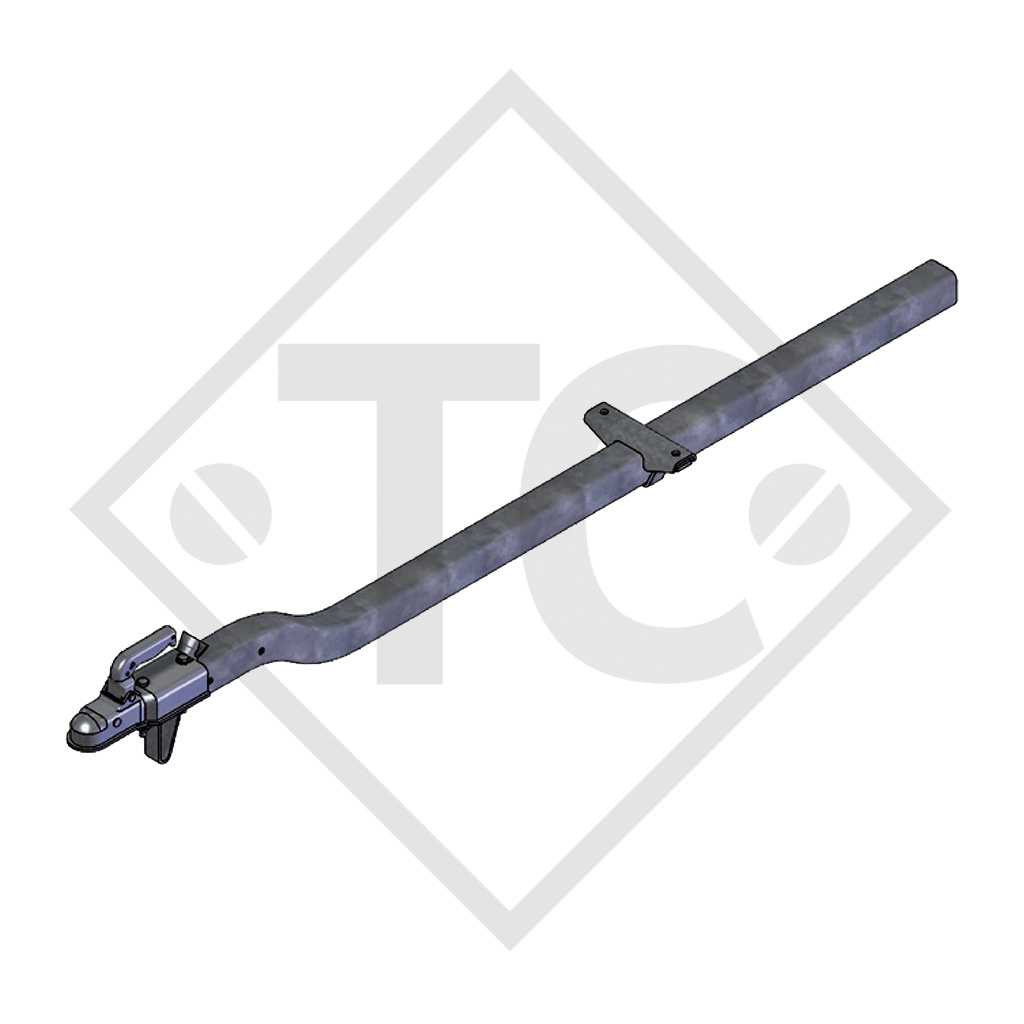

Home / Drawbar type WZ 085 K square tube straight up to 850kg
dimension GL 2000mm-5000mm, drawbar section 64x64x3mm, dimension K 80mm, perm. nose load 75kg, inclusive skid bracket, clamping bracket and plug holder. Read more...
Part no. WZ085K80
TECHNOLOGY
GA max. 850 kg
Perm. nose load 75 kg
ECE type approval no.: E4-55R010497
YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted
SCOPE OF DELIVERY

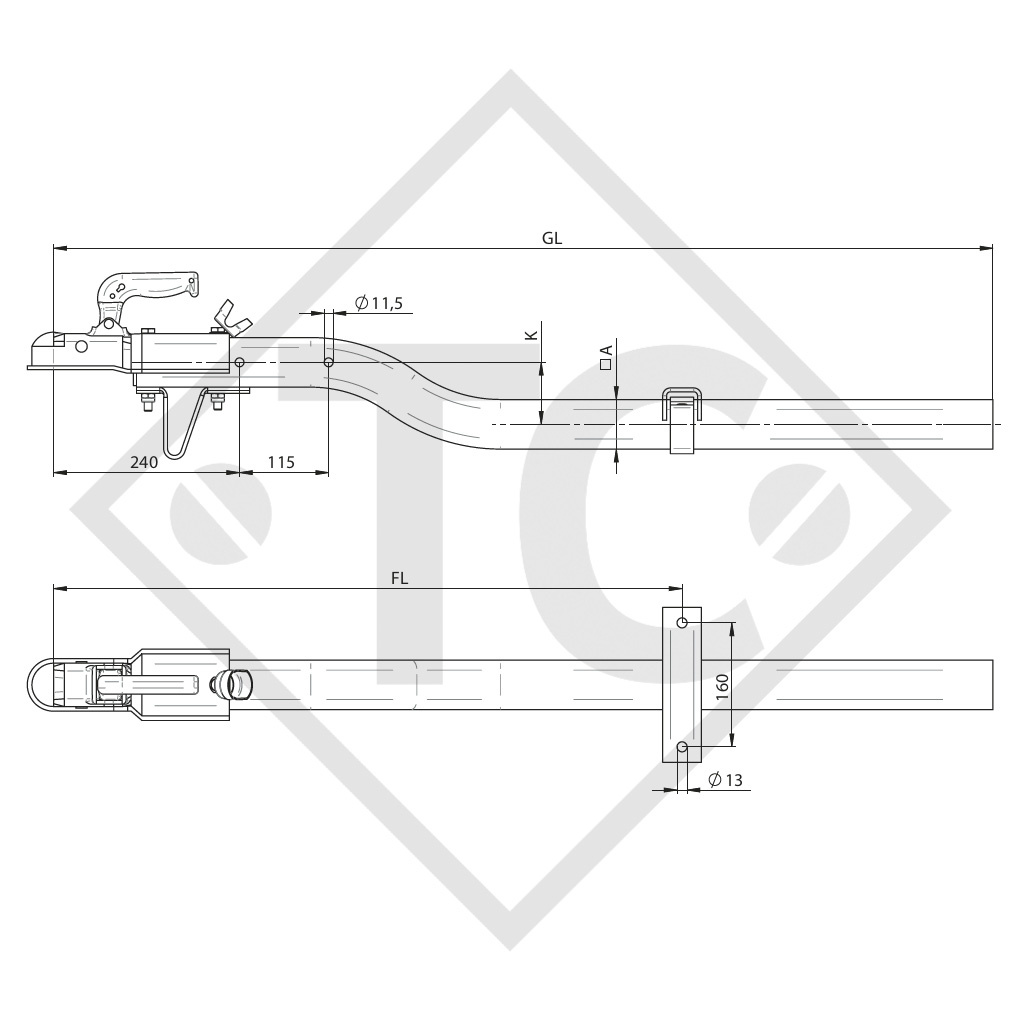

See drawing, inclusive
Skid bracket
Clamping bracket
Plug holder
SURFACE TREATMENT
Hot-dip galvanised
