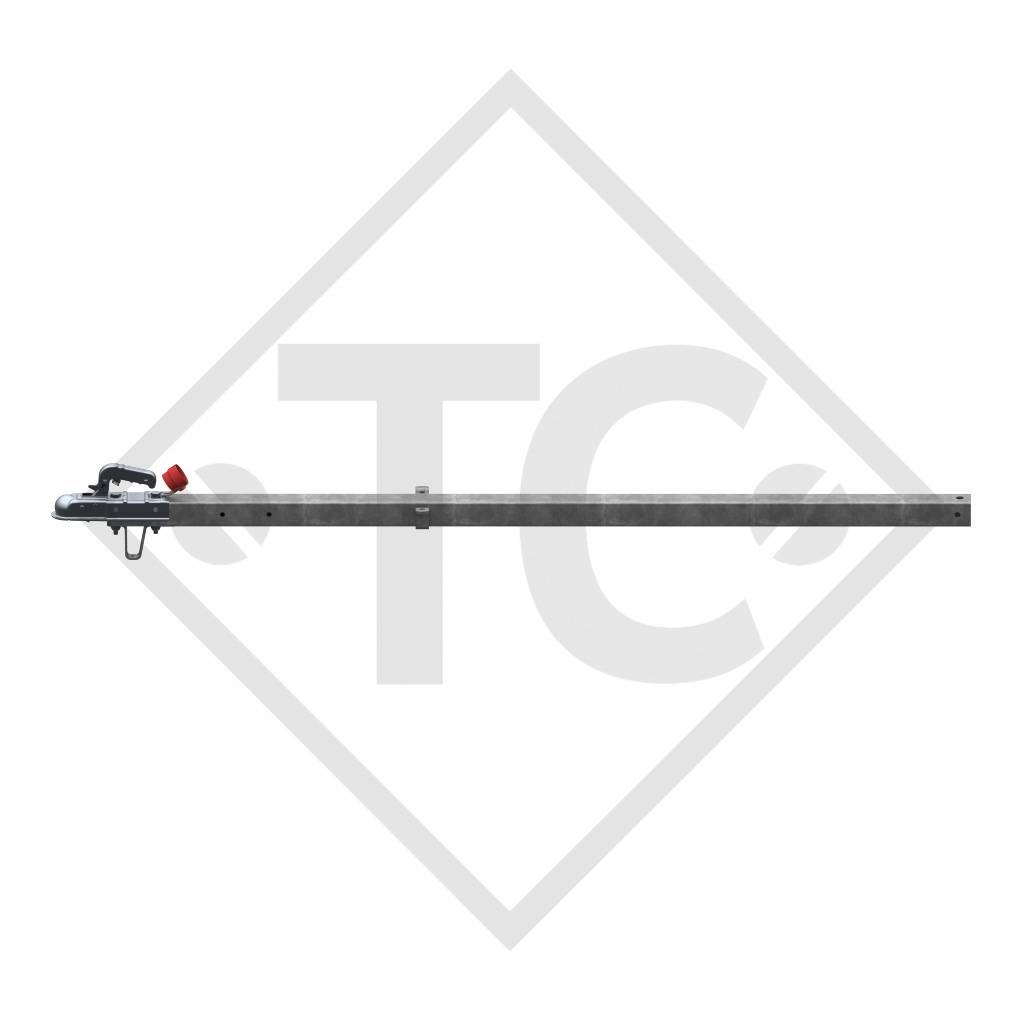

dimension A 2995mm, drawbar section 60x60x3mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping bracket and plug holder. Read more...

Wishlist: Add to comparison:
Price 155,00 EUR Incl. tax Excl. Shipping costs

Part no. 247962 (623771)
dimension A 2995mm

INSTALLATION MANUAL

TECHNOLOGY
Type R4 - vers. A1
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7

ECE type approval no.: E1 55R-01 0388

YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted

SCOPE OF DELIVERY

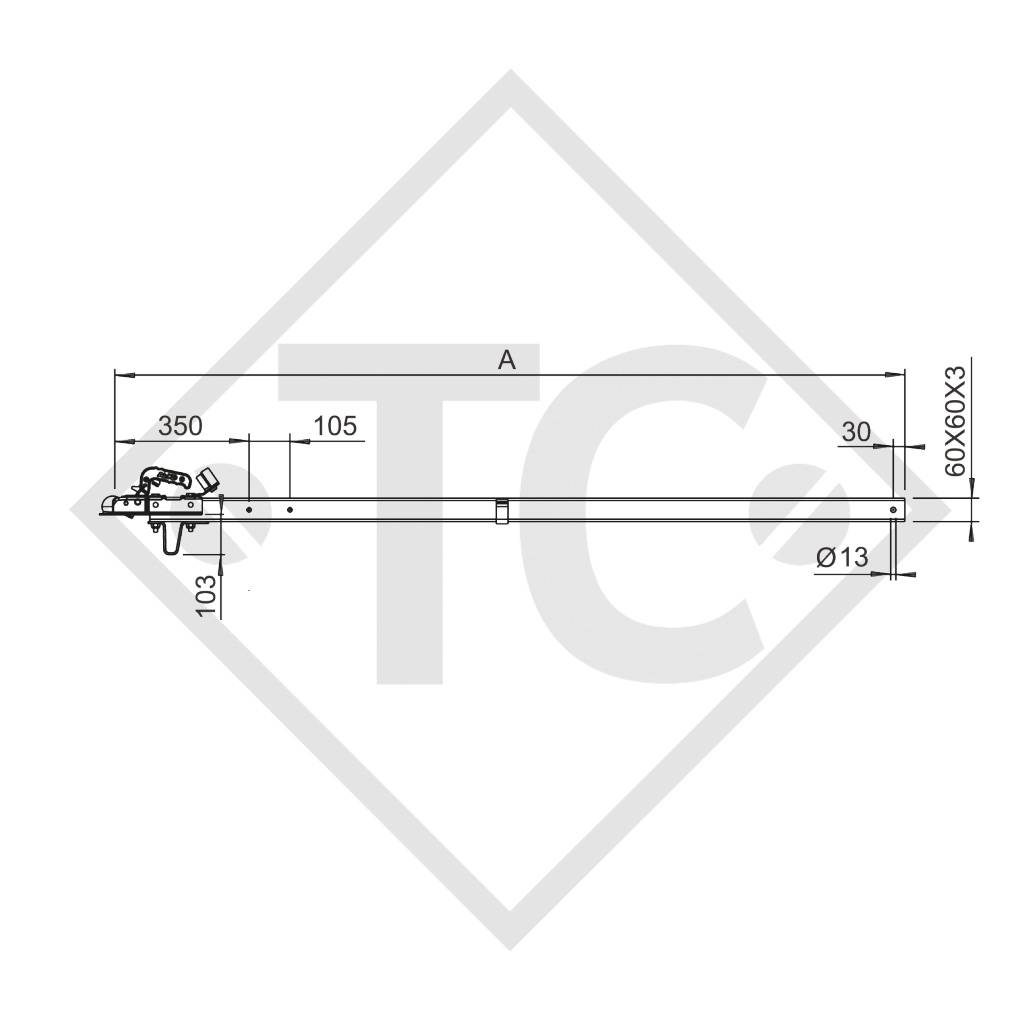

See drawing, inclusive
Skid bracket 203 037
Clamping bracket 589 087
Plug holder 218 260 00 04

SURFACE TREATMENT
Hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

... ...
