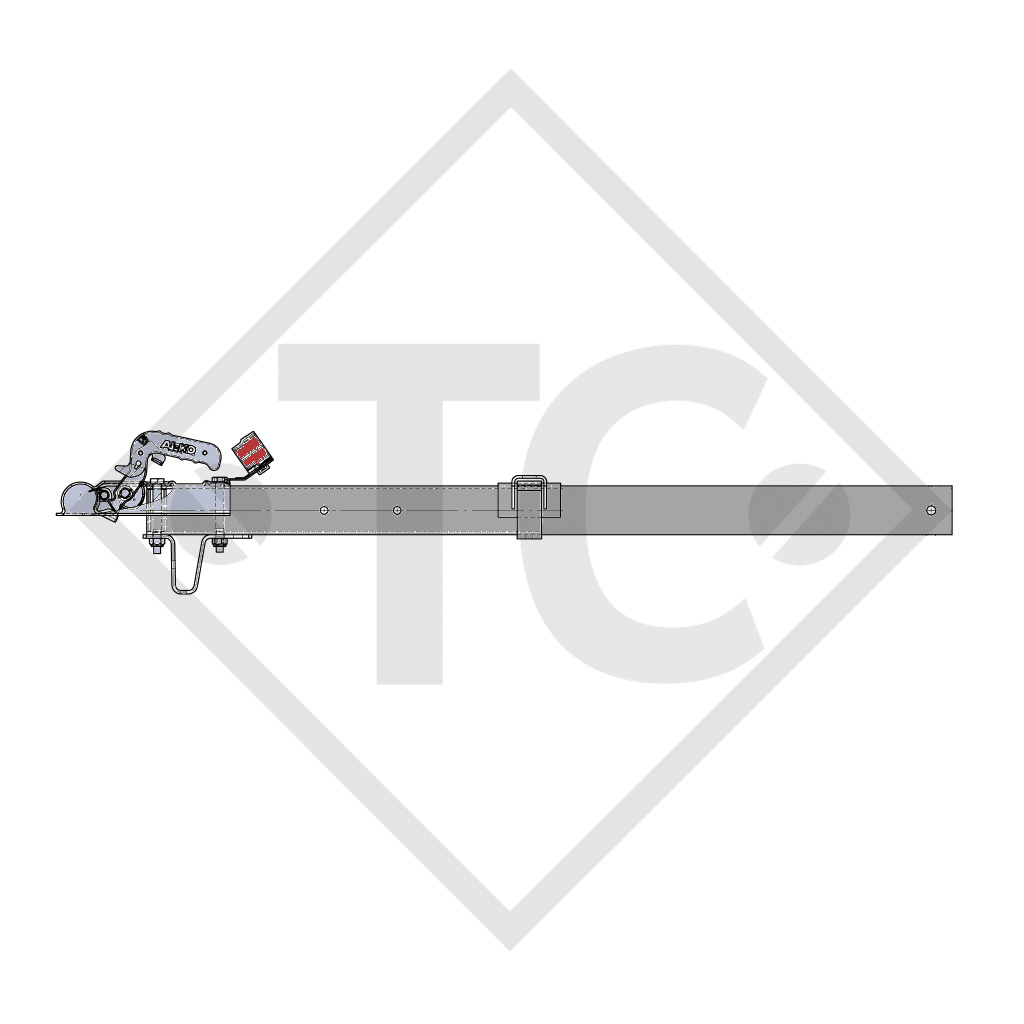

Drawbar type R16 vers. A1 square tube straight up to 750kg

dimension A 2995mm, drawbar section 70x70x4mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping mount and plug holder. Read more...

Wishlist: Add to comparison:

Price 485,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1731072

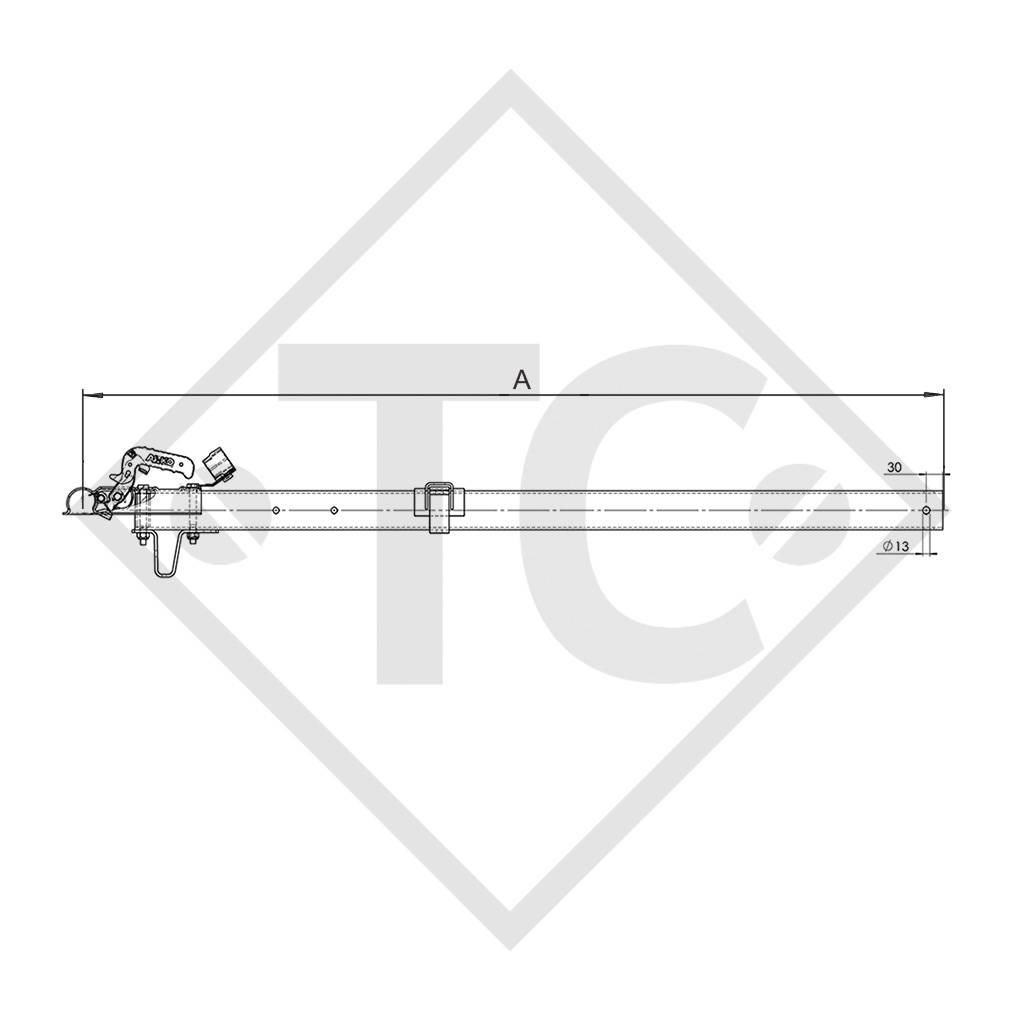

dimension A 2995mm

INSTALLATION MANUAL

TECHNOLOGY
Type R16 - vers. A1
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7

ECE type approval no.: E1 55R-01 0274

YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted

SCOPE OF DELIVERY

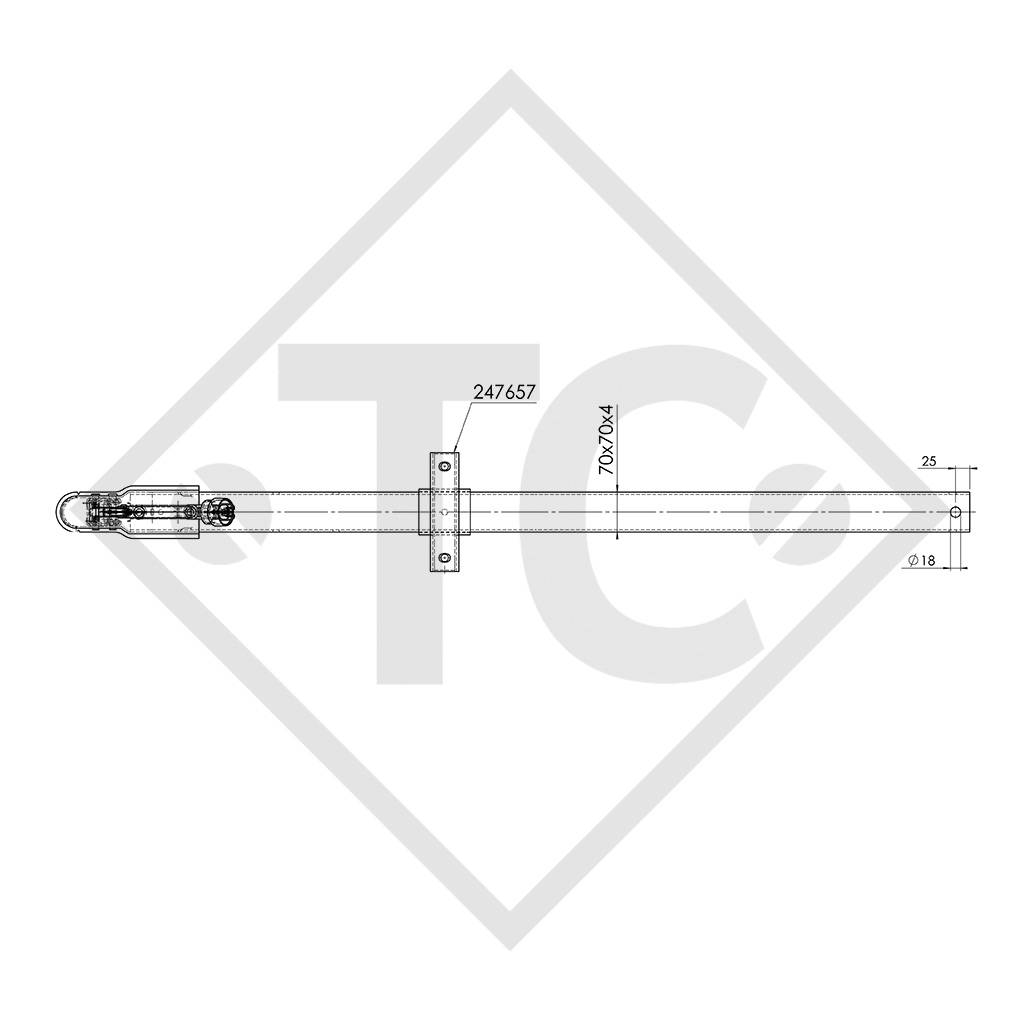

See drawing, inclusive
Skid bracket 203 037
Clamping mount 247 657
Plug holder 218 260 00 04

SURFACE TREATMENT
Hot-dip galvanised

AL-KO Drawbar type R16 vers. A1 square tube straight up to 750kg
