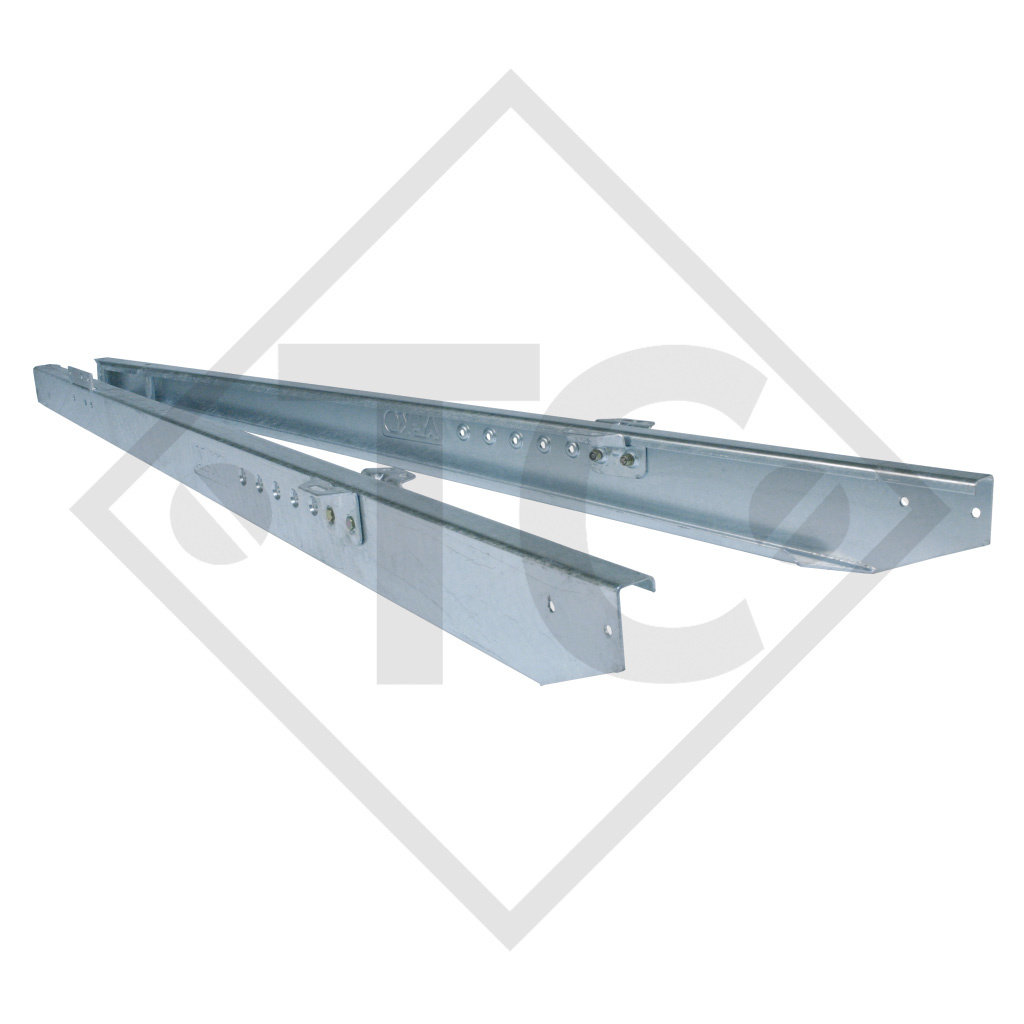

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1500KG SWING, AXLE TYPE CB 1505 / Towbar connection (pair) type 351T to 3000kg
total length A 2000mm, dimension F 166mm, nose load 150kg, suitable for overrun device top installation type AE 3000 and 251G. Read more...
Part no. per pair 249387
| Towbar connection |
| Type | 351T |
| Test code | ECE: E1 55R-01 0539 |
| Gross weight trailer | 3000kg |
| Nose load | 150kg |

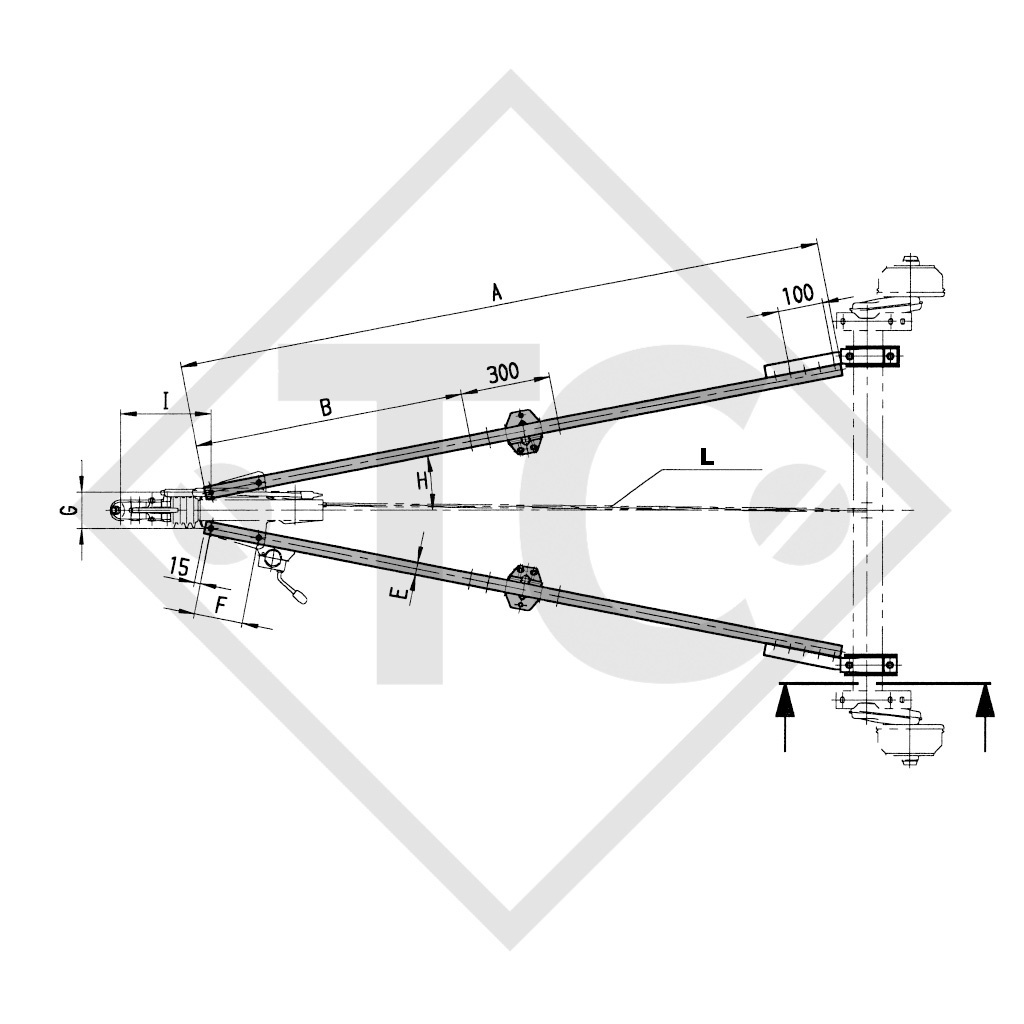

| Dimensions Length |
| A | 2000mm |
| B | 1100 to 1400mm |
| C | 80mm |
| D | 53mm |
| E | 50mm |
| F | 166mm |
| G | 120mm |
| Overrun device |
| H with top installation | 12° to 15° |
| H with bottom installation | 13,5° to 15° |
| I | 308mm |

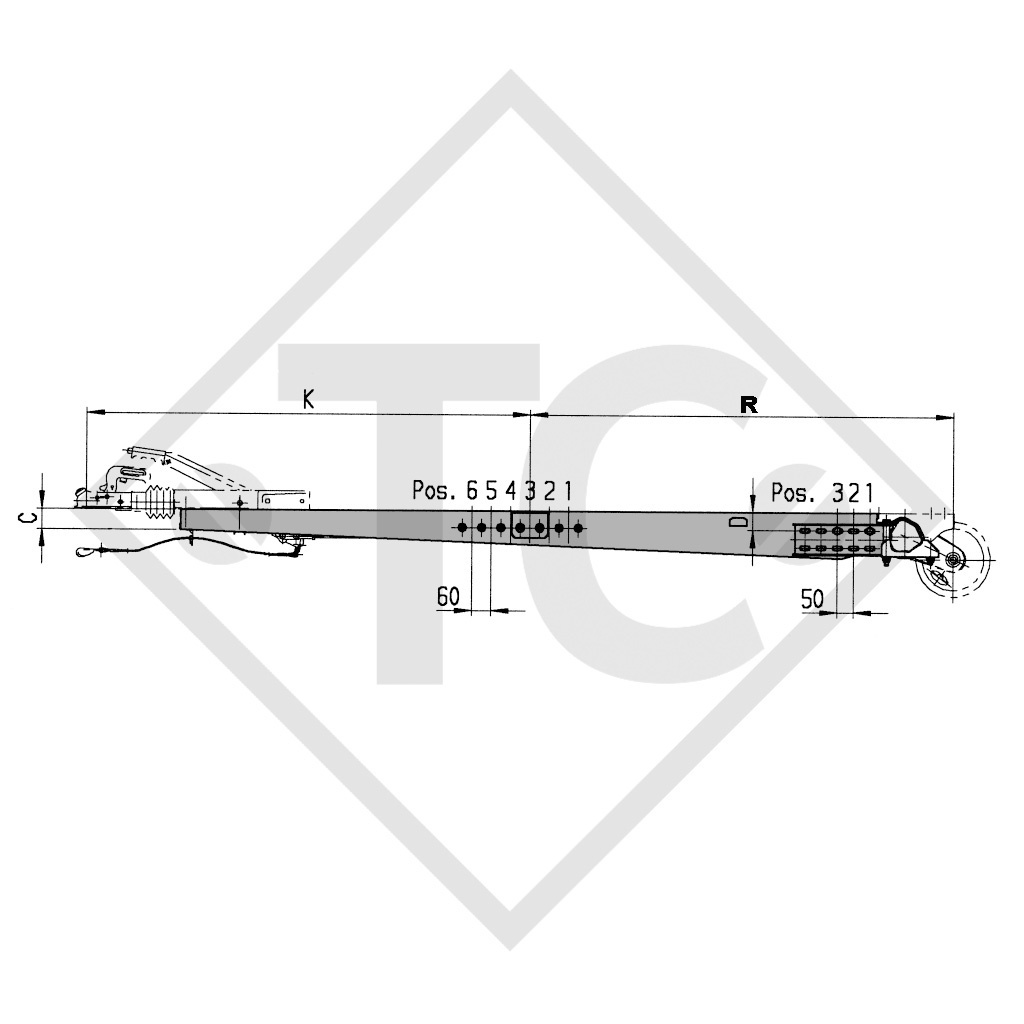

| K with |
H 12° 1180 to 1475mm |
| R (loaded) |
830 - 1220mm |
| K max. permitted acc. to report | 1945mm |
| Matching overrun device top installation type | AE3000 / 251G |

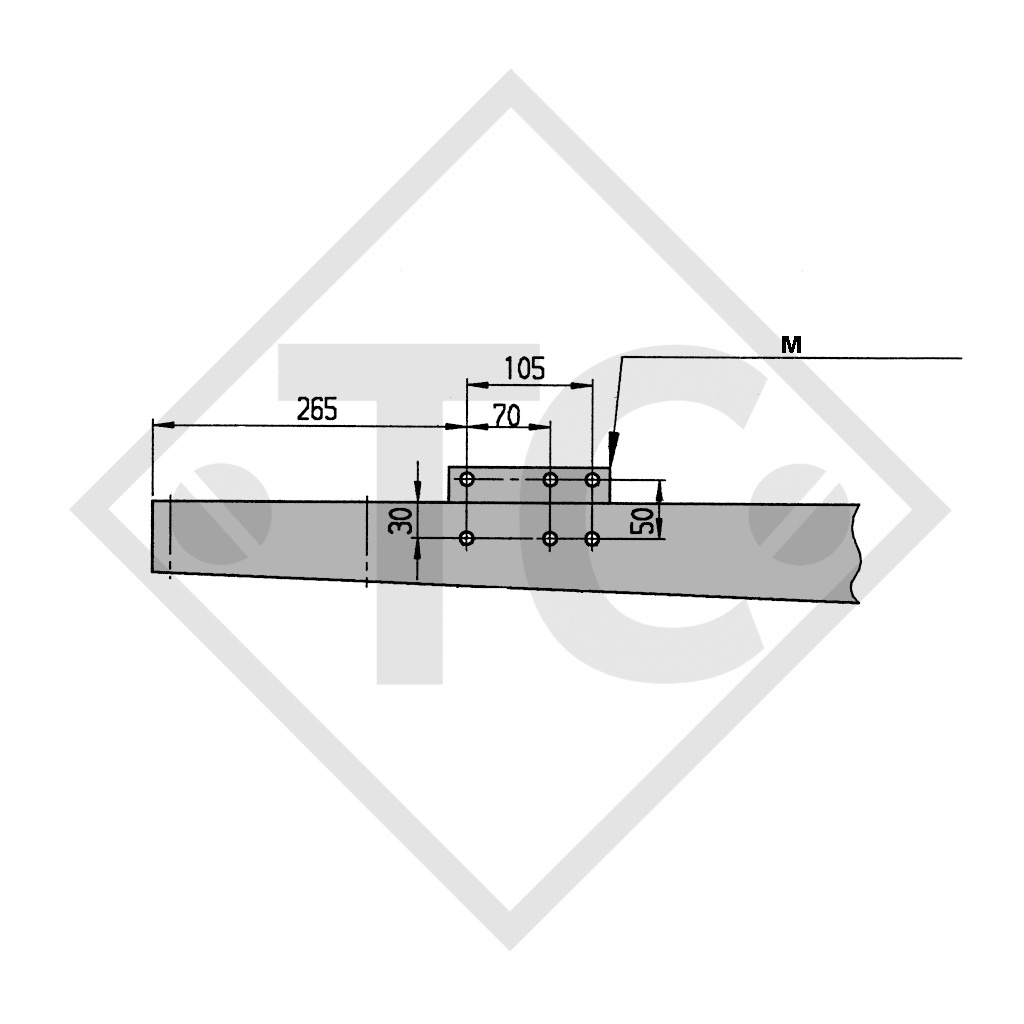

| M |
Plate for 251T and 351T |
TOWBAR CONNECTIONS
Calculation diagram and setting values
SURFACE TREATMENT
Hot-dip galvanised
SCOPE OF DELIVERY
Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment
ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
Pull bar (L) with fixing bolts part no. 249364, M12 length 1725mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
