total length A 2500mm, dimension F 208mm, nose load 150kg, suitable for overrun device top installation type AE 3500. Read more...

Wishlist: Add to comparison:
Price 409,00 EUR Incl. tax Excl. Shipping costs

Part no. per pair 1224332

Towbar connection
Type 351T
Test code ECE: E1 55R-01 0539
Gross weight trailer 3500kg
Nose load 150kg

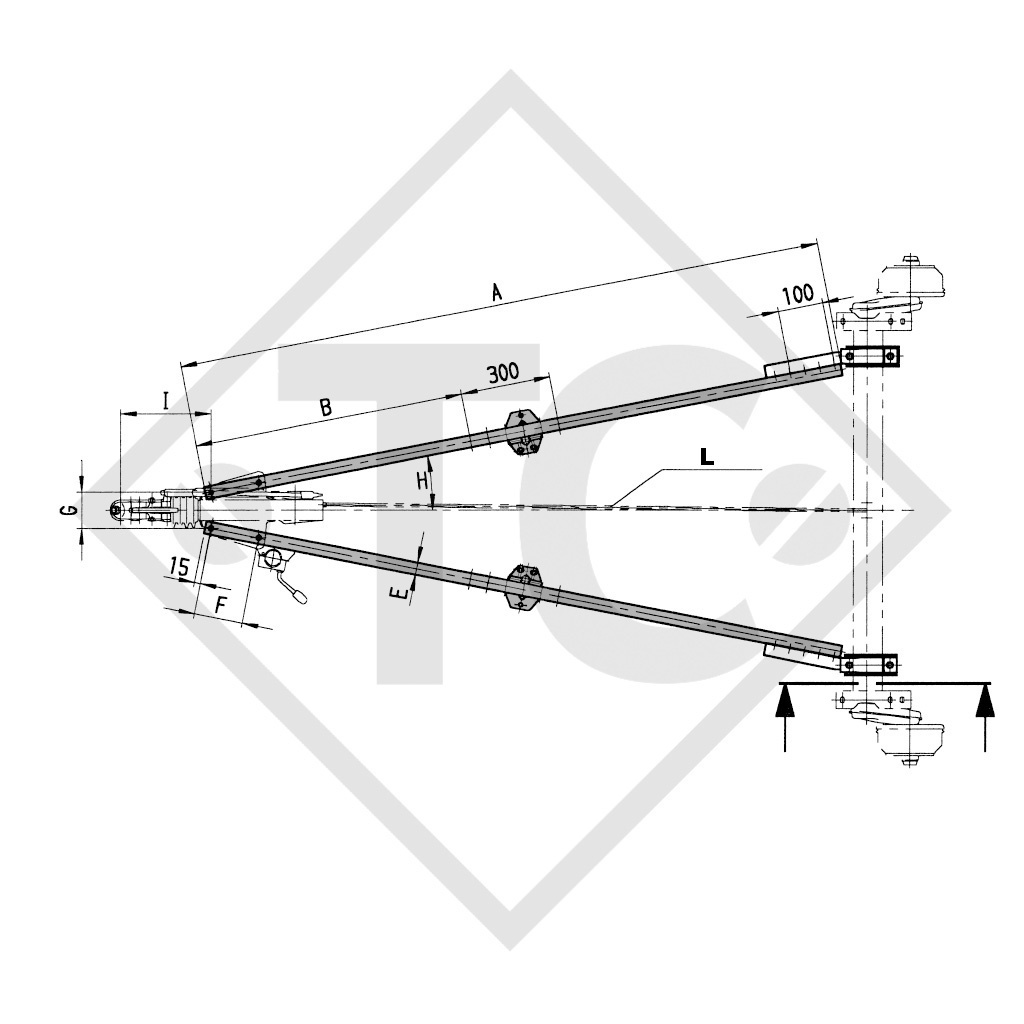

Dimensions Length
A 2500mm
B 1100 to 1400mm
C 80mm
D 53mm
E 50mm
F 208mm
G 135mm
Overrun device
H with top installation 8° to 20°
H with bottom installation 8° to 20°
I 330mm

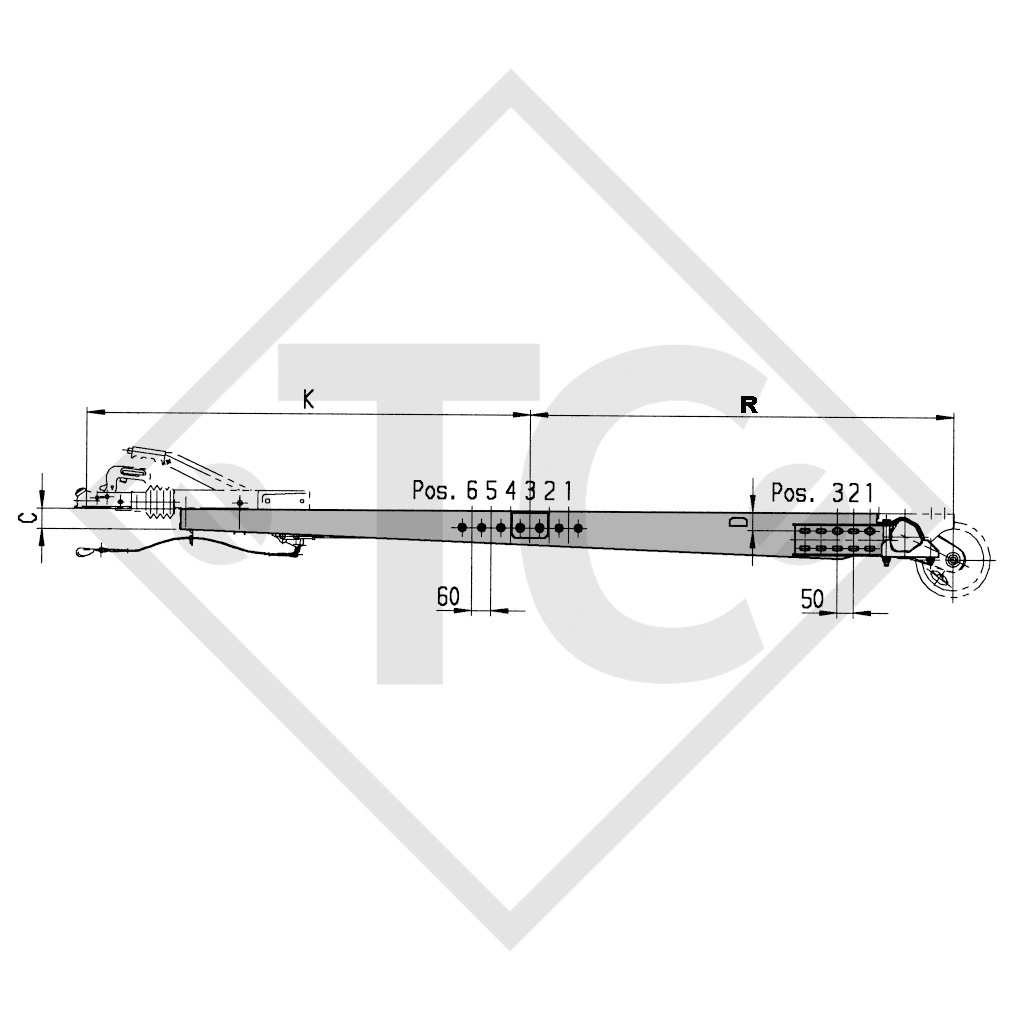

K with
H 14° 1190 to 1485mm
R (loaded)
1320 - 1710mm
K max. permitted acc. to report 1945mm
Matching overrun device top installation type AE3500
M

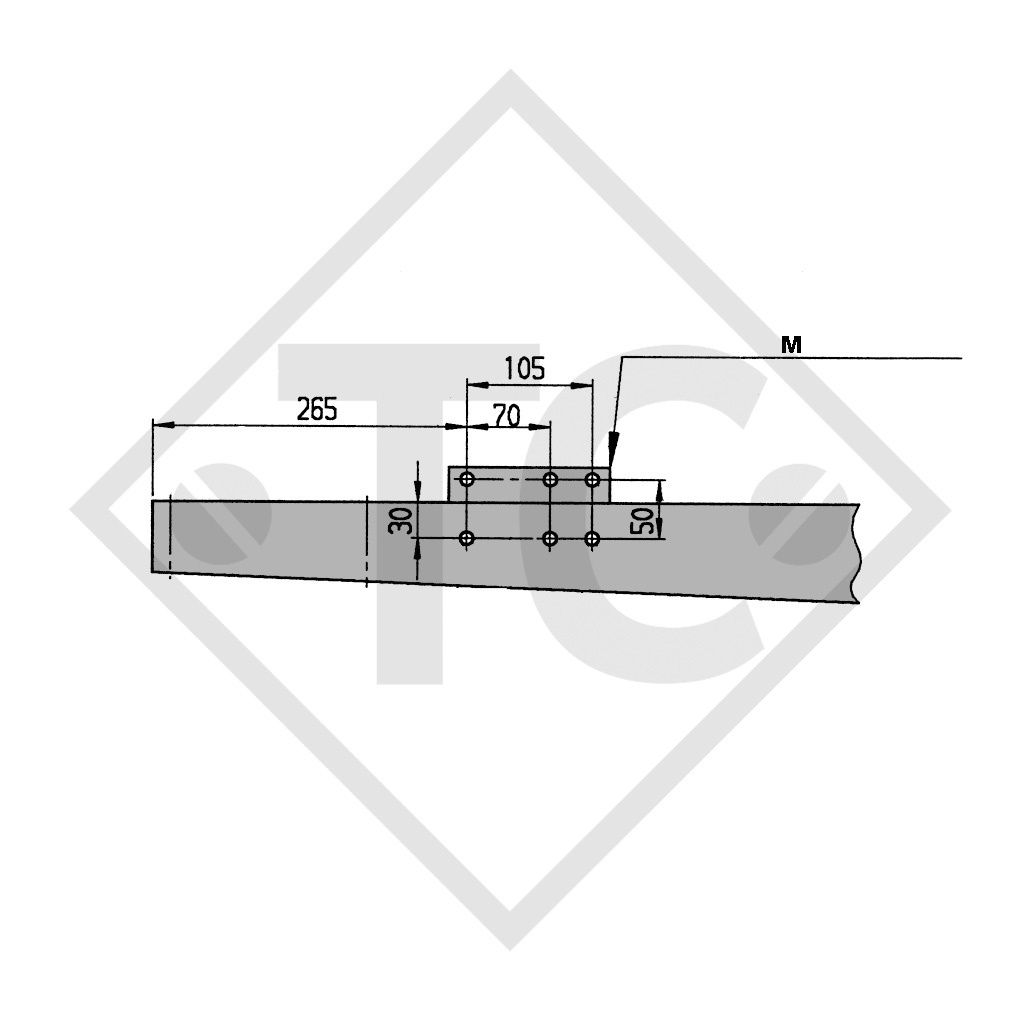

Plate for 251T and 351T



TOWBAR CONNECTIONS
Calculation diagram and setting values

SURFACE TREATMENT
Hot-dip galvanised

SCOPE OF DELIVERY

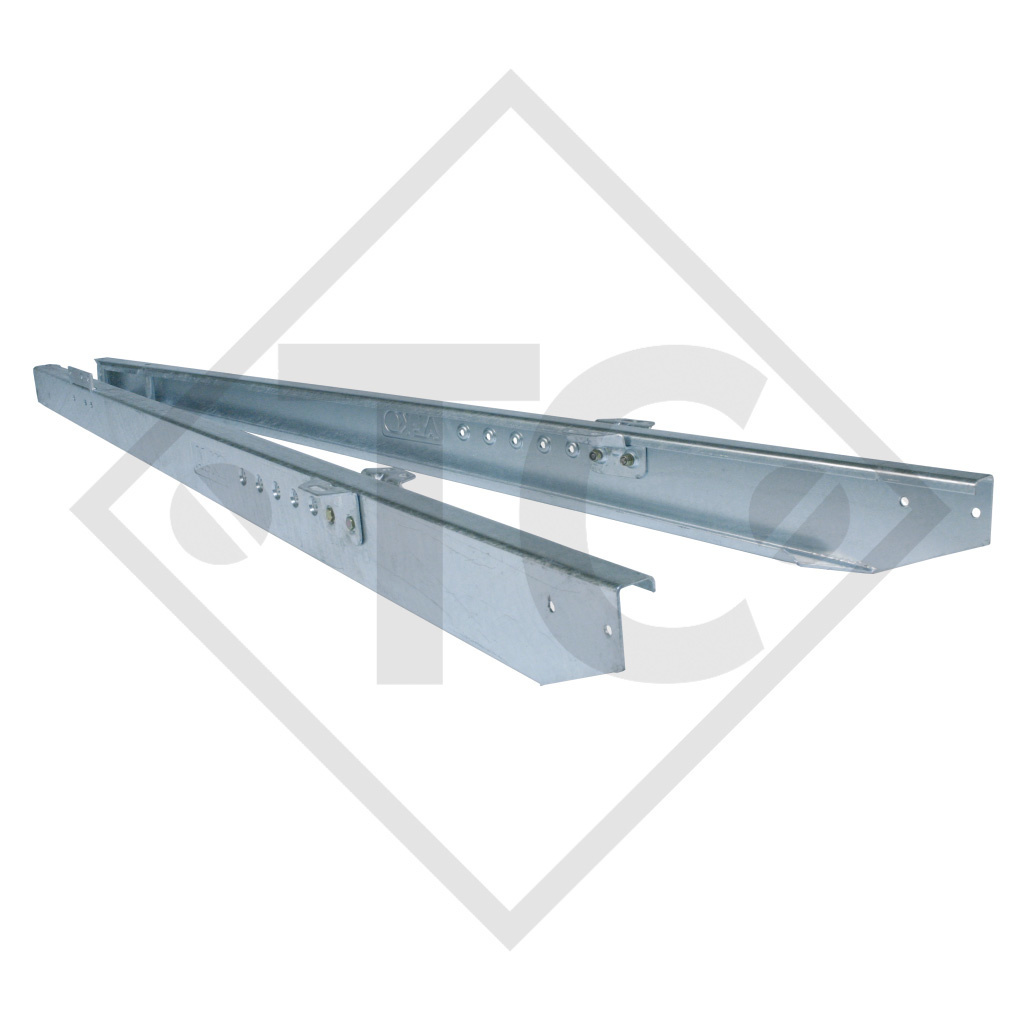

Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment

ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
Pull bar (L) with fixing bolts part no. 249369, M12 length 2150mm
