AL-KO Towbar connection (pair) type 351T to 3500kg

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1050KG SWING, AXLE TYPE CB 1055 / Towbar connection (pair) type 351T to 3500kg

total length A 2700mm, dimension F 186mm, nose load 150kg, suitable for overrun device top installation type 2,8VB/1-C. Read more...

Wishlist: Add to comparison:

Product description

Part no. per pair 1227445

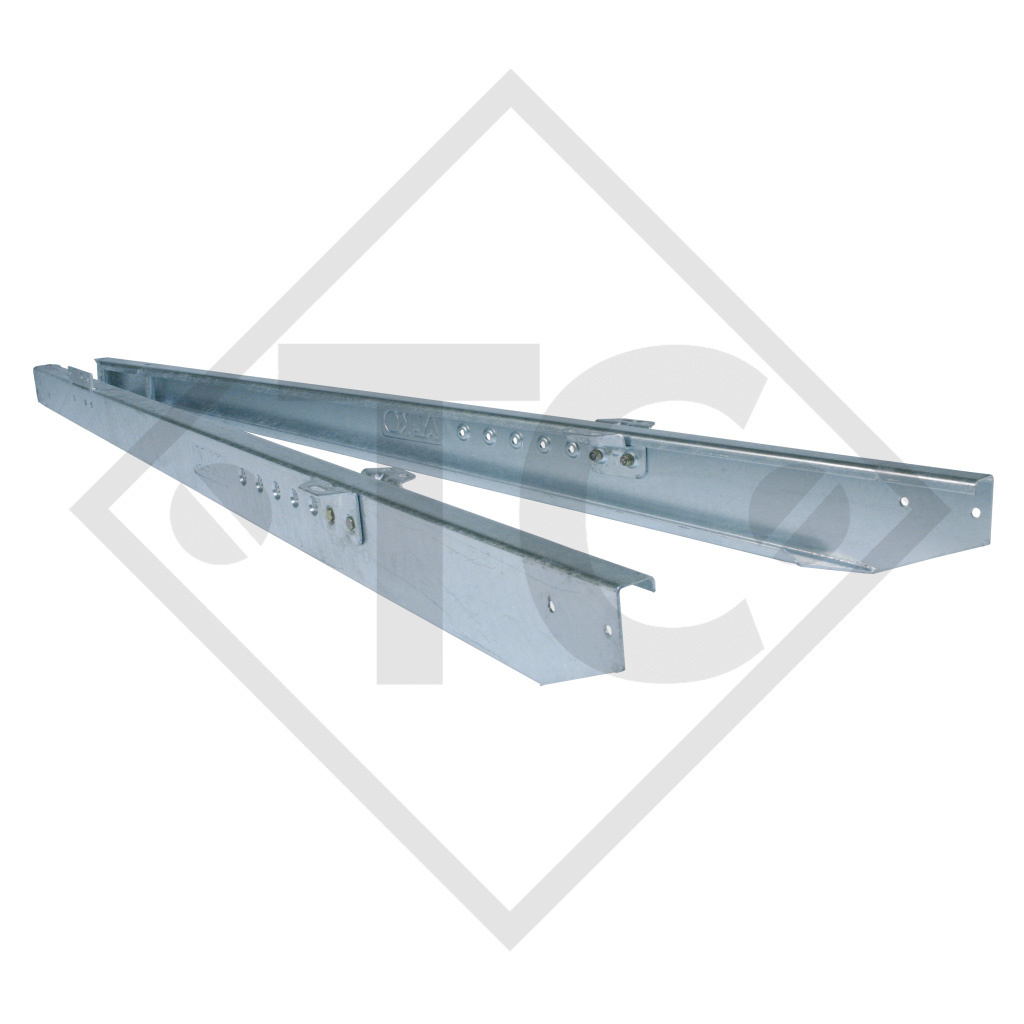

Towbar connection
Type 351T
Test code ECE: E1 55R-01 0539
Gross weight trailer 3500kg
Nose load 150kg

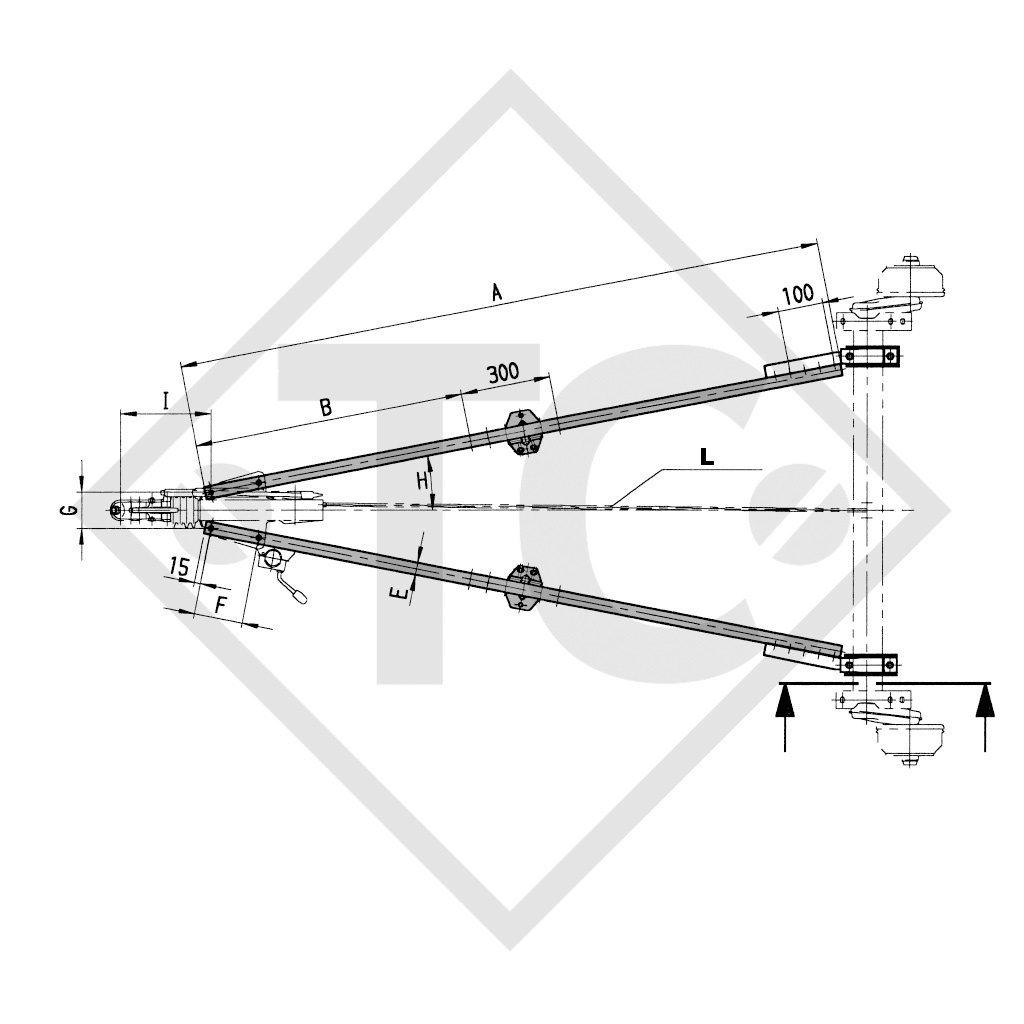

Dimensions Length
A 2700mm
B 1100 to 1400mm
C 80mm
D 53mm
E 50mm
F 186mm
G 135mm
Overrun device
H with top installation 13° to 17°
H with bottom installation 16° to 17°
I 330mm

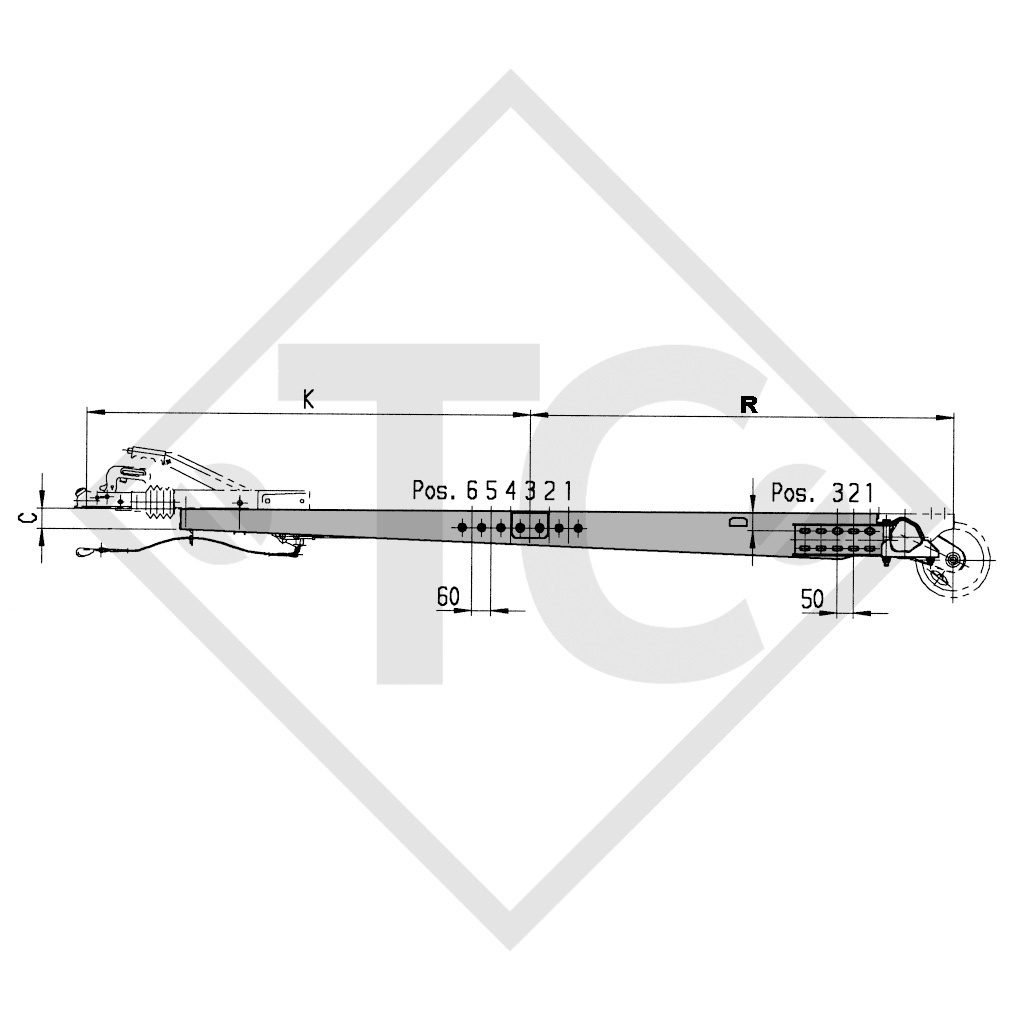

K with
 H 14° 1385 to 1680mm
R (loaded)
 1320 - 1710mm
K max. permitted acc. to report 1945mm
Matching overrun device top installation type 2.8VB/1-C

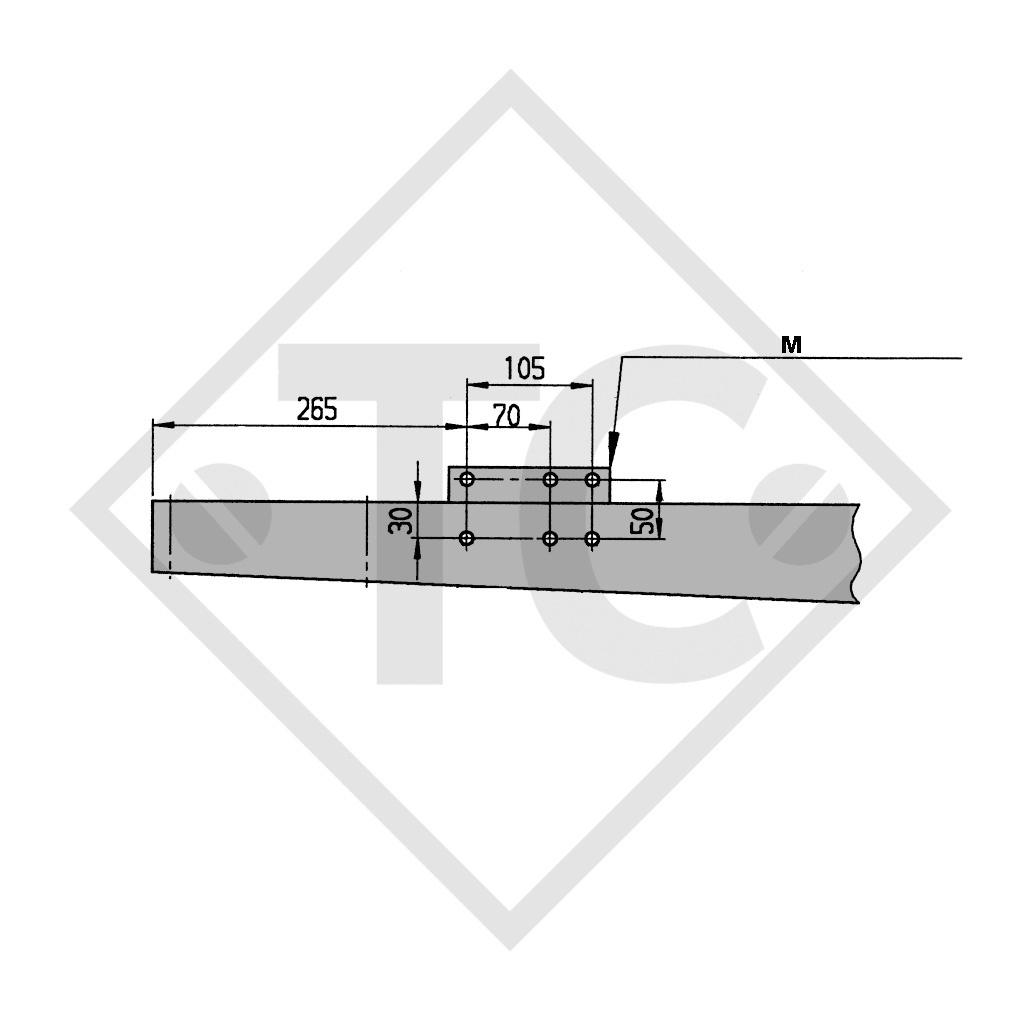

M
Plate for 251T and 351T



TOWBAR CONNECTIONS
Calculation diagram and setting values

SURFACE TREATMENT
Hot-dip galvanised

SCOPE OF DELIVERY
Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment

ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
